OPERATOR'S STATION
1-34
BACK MONITOR SETTINGS
IMPORTANT: The image displayed on the back monitor is
to be used as an assist view. Drive the ma-
chine while paying thorough attention to
the surroundings.
Auto-Control: ON
Image on the monitor unit when traveling is automatically
switched to that of the back monitor.

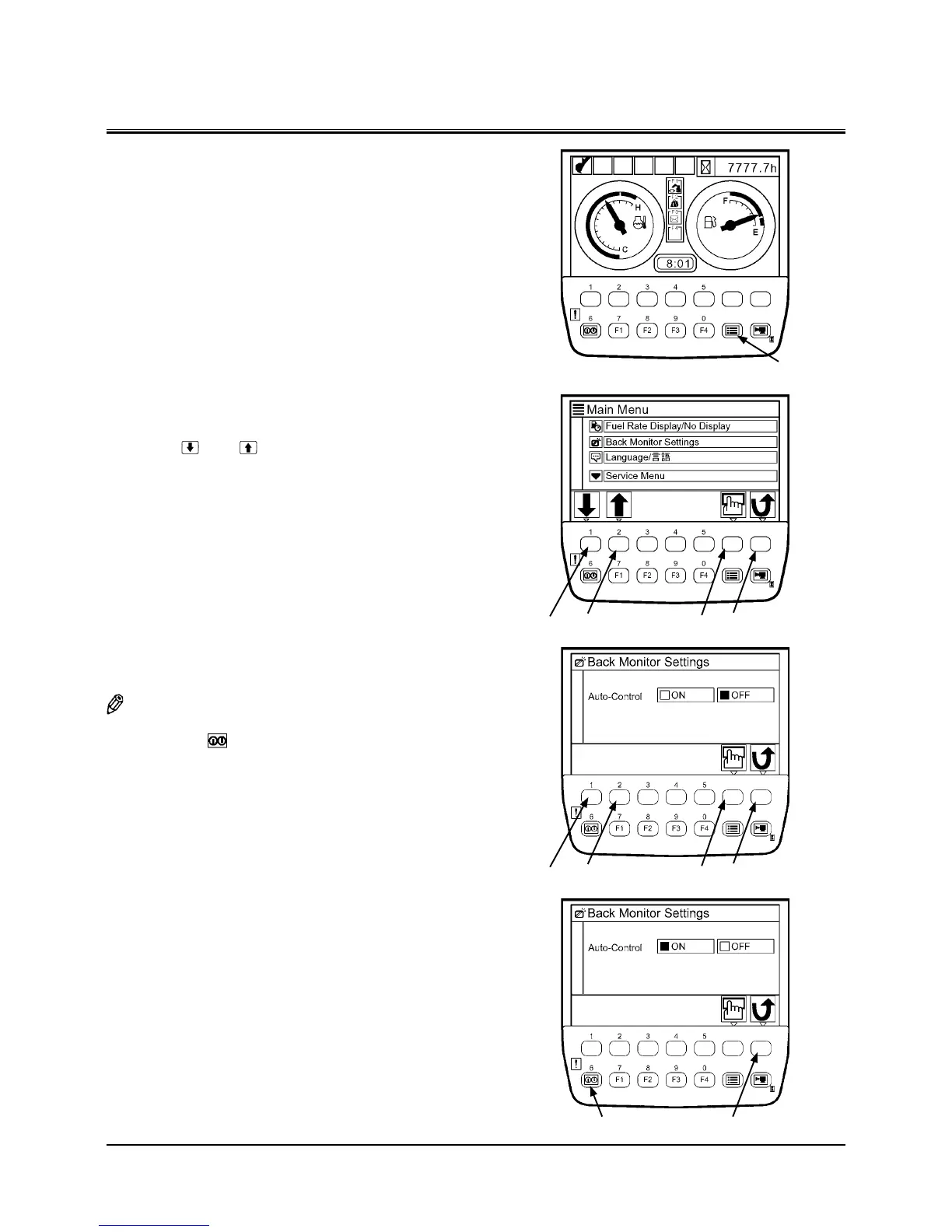

1. When the basic screen displays, push the menu key and
display main menu.
2. Select back monitor settings from main menu by using
keys 1 and 2 . Push the determination key. Then,
the back monitor settings screen displays.
3. Push the determination key. Then, auto-control is set to
ON.
NOTE: When pushing the back key, return to the basic screen.
4. Push key 6 , and return to the basic screen.
5. If travel operation is done, backward image is displayed
on the screen of monitor unit.
Back KeyKey 6
Menu Key
T1V1-05-01-123
Basic Screen
T1V5-05-01-174
T1V5-05-01-114
T1V5-05-01-173
Back KeyDetermination KeyKey 2Key 1
Back KeyDetermination KeyKey 2Key 1
To Next Page
