SPECIFICATIONS
12-17

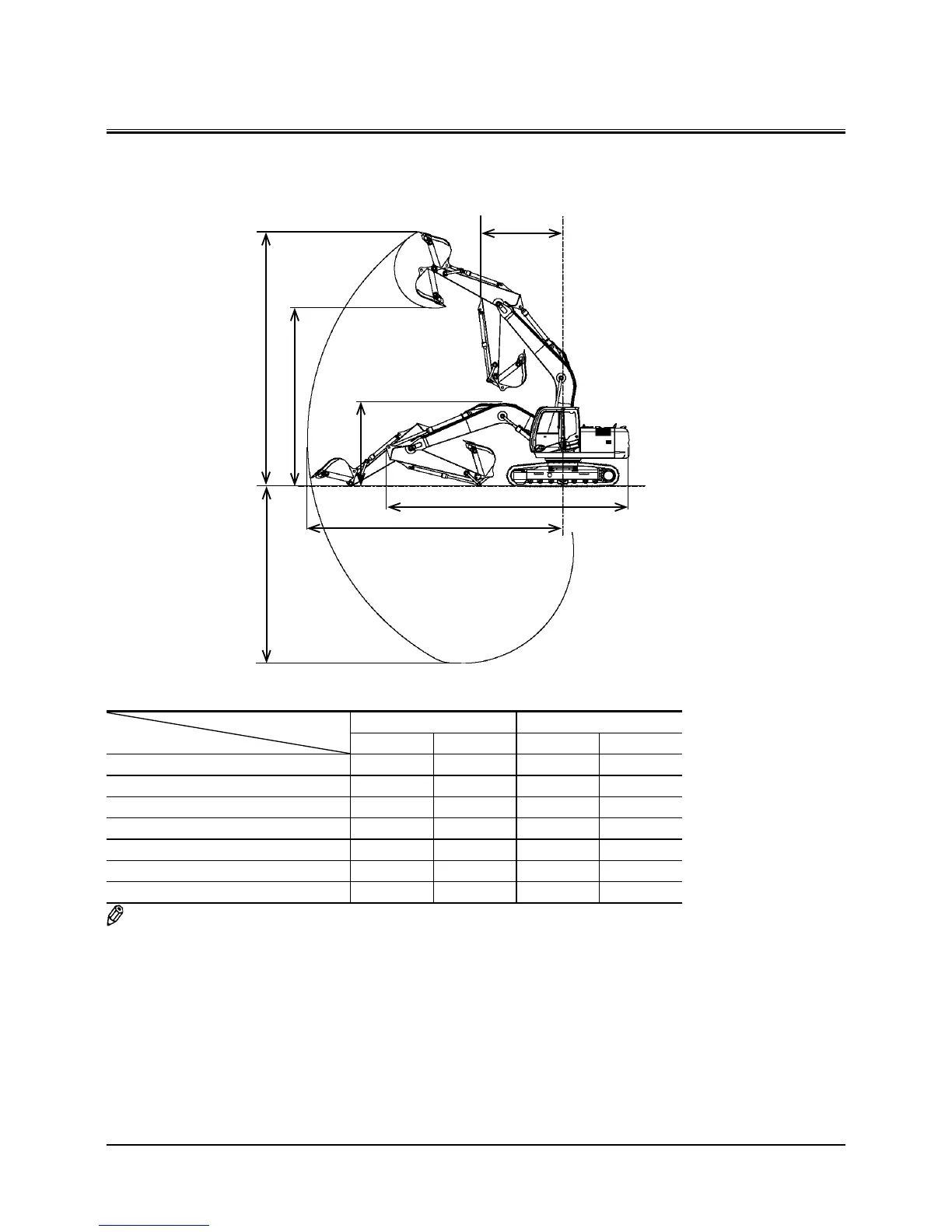

WORKING RANGES
ZX180LC-3, 180LCN-3 (Machine with Mono Boom)
Category
Item
2.26 m (7 ft 5 in) Arm 2.71 m (8 ft 11 in) Arm
mm ft•in mm ft•in
A: Maximum Digging Reach
9070 29’10” 9430 31’0”
B: Maximum Digging Depth
* 6120 * 20’1” * 6570 * 21’7”
C: Maximum Cutting Height
* 9290 * 30’6” * 9400 * 30’11”
D: Maximum Dumping Height
* 6450 * 21’2” * 6570 * 21’7”
E: Overall Height
3100 10’2” 3080 10’2”
F: Overall Length
9000 29’7” 8970 29’6”
G: Minimum Swing Radius
3140 10’4” 3130 10’4”
NOTE: * The dimensions do not include the height of the shoe lug.
T1T1-01-01-004
