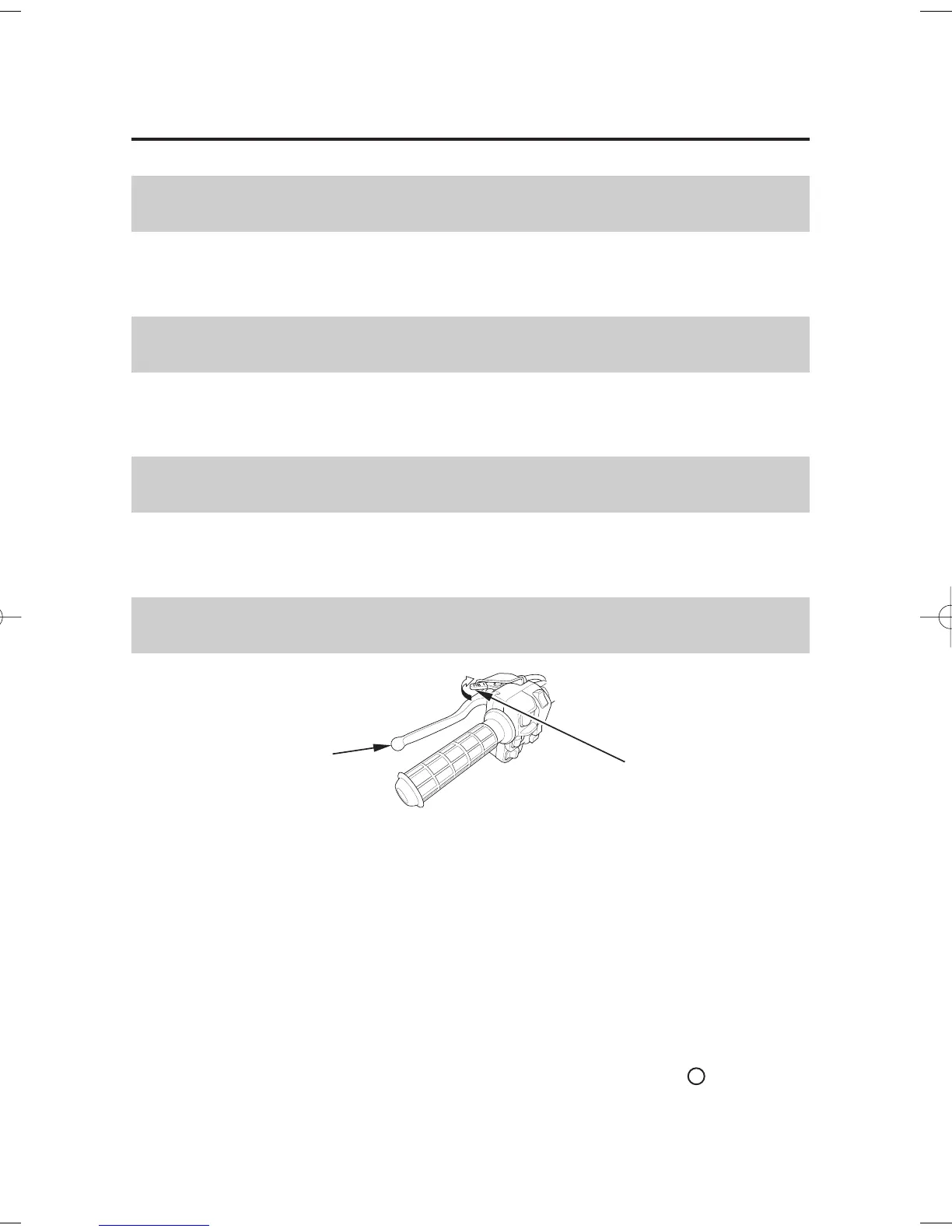

LEFT HANDLEBAR
(1) lock lever
(2) rear brake lever/parking brake lever
(A) to lock
41
Front Brake Lever
Rear Brake Lever
Rear Brake Pedal
Parking Brake
Controls & Features
Instruments & Controls
Parking
The front brake lever is used to slow or stop your ATV. To operate, pull
the lever. For information on braking techniques, see page .
The rear brake lever is used to slow or stop your ATV. To operate, pull
the lever. For information on braking techniques, see page .
The rear brake pedal is used to slow or stop your ATV. To operate,
depress the pedal. For information on braking techniques, see page .
The brakelights are activated by applying the parking brake. When using
the parking brake, be sure to turn the ignition switch OFF ( ) to avoid
discharging the battery.
The lock lever ( ) on the rear brake lever/parking brake lever ( )
allows it to be used as a parking brake. To operate, first squeeze the rear
brake lever/parking brake lever using your left hand and then lock it
with the lock lever using your right hand. See page .
111
111
111
12
125
