Honeywell LYNX Touch Series User Manual

LYNX Touch Installation and Setup Guide
- 12 -
Installing/Configuring Communication & Home Automation Modules
!
Do not install the L5100-WiFi if the ILP5 Ethernet communications module is being installed.
Installing the L5100-WiFi module

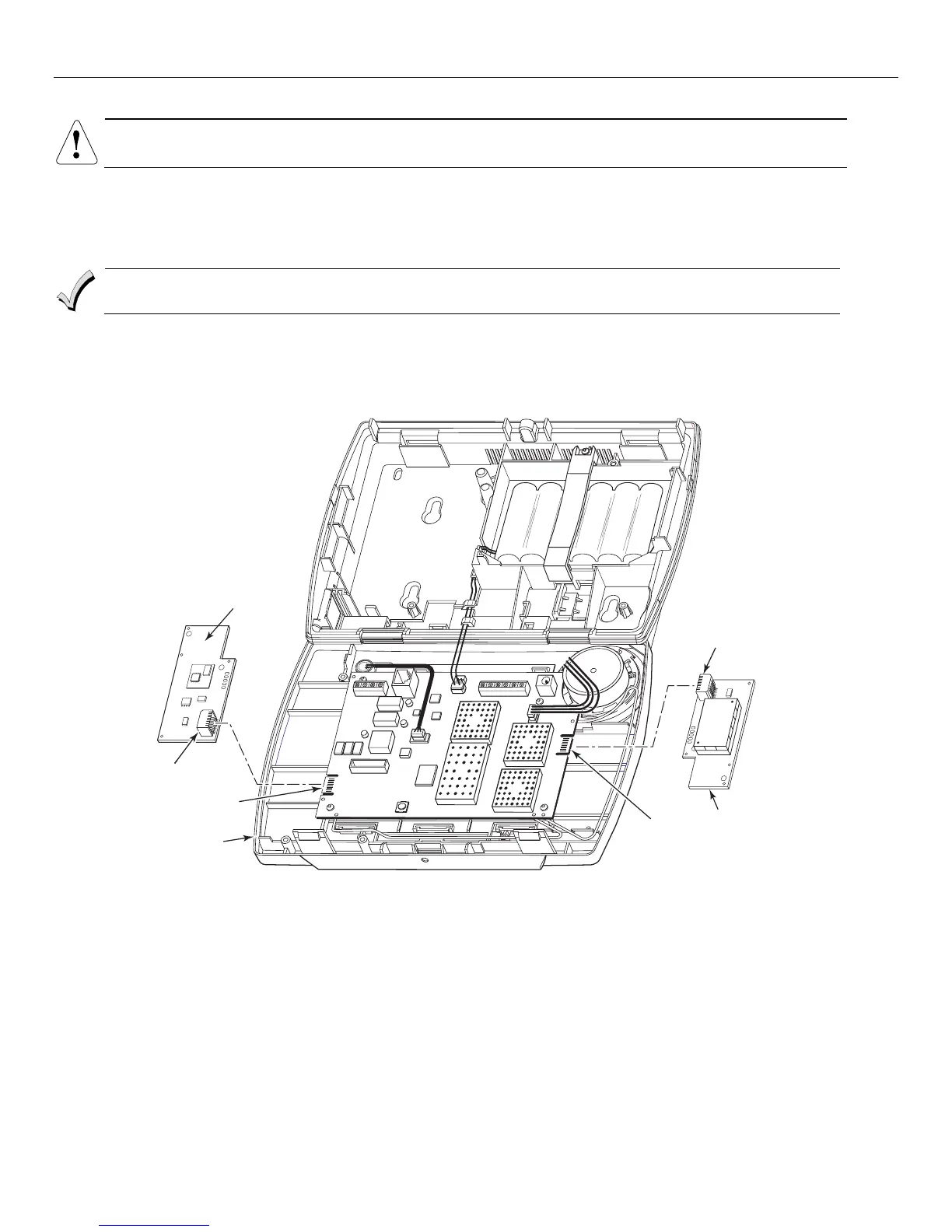

1. Install the L5100-WiFi into the LYNX Touch control front case as shown below. Ensure that the receptacle is properly seated into the
edge connector on the right (speaker) side of the control’s circuit board.
2. Enable the L5100-WiFi module, configure alarm reporting and module supervision and register the device. Refer to the “Program the
Communications Module” and “Communications Diagnostics” sections.
The communications module must be registered with AlarmNet before downloading or alarm reporting can
take place.
Installing the L5100-ZWAVE Home Automation module
1. Enable the L5100-ZWAVE module. Refer to the “Program the Z-Wave Module”.
2. Install the L5100-ZWAVE into the LYNX Touch control front case as shown below. Ensure that the receptacle is properly seated into the
edge connector on the left (TELCO terminal) side of the control’s circuit board.
5100-100-054-V0
RECEPTACLE
EDGE
CONNECTOR
L5100-WiFi
RECEPTACLE
EDGE CONNECTOR
LYNX TOUCH
L5100-ZWAVE
