If the LEDs indicate that there is a problem, refer to information on
troubleshooting to solve the problem. See also Troubleshooting Problems
Indicated by LED.
SRX2/SRX3 and A700/A700x Battery Charger LED
Indicators
The SRX2/SRX3 battery chargers and the A700/A700x battery chargers have an
LED indicator light, located at the bottom right of the charger face, that signals
the status of the charger.
l Solid green LED: Charger power is on
l No light: Charger power is off
l Solid red LED: Charger is experiencing a power fault (SRX2 only)
NOTE
If the charger LED indicator is red, unplug the charger power supply
from the power source, and remove all batteries. Plug the power supply
into the power source again. If the LED remains red, the charger may
require repair or replacement.
Charger Port Indicators
Additionally, each battery port has two LED indicator lights that apply to the
status of the resident battery.
l The ring LED is a circular light that indicates the battery's charge status.
l The alert LED, in the shape of an exclamation point (!), indicates that there is
a battery condition requiring attention. When this indicator is on, the battery
on that charger port may not last a full shift. Check VoiceConsole for a
specific alert message.
Battery Port Indicators

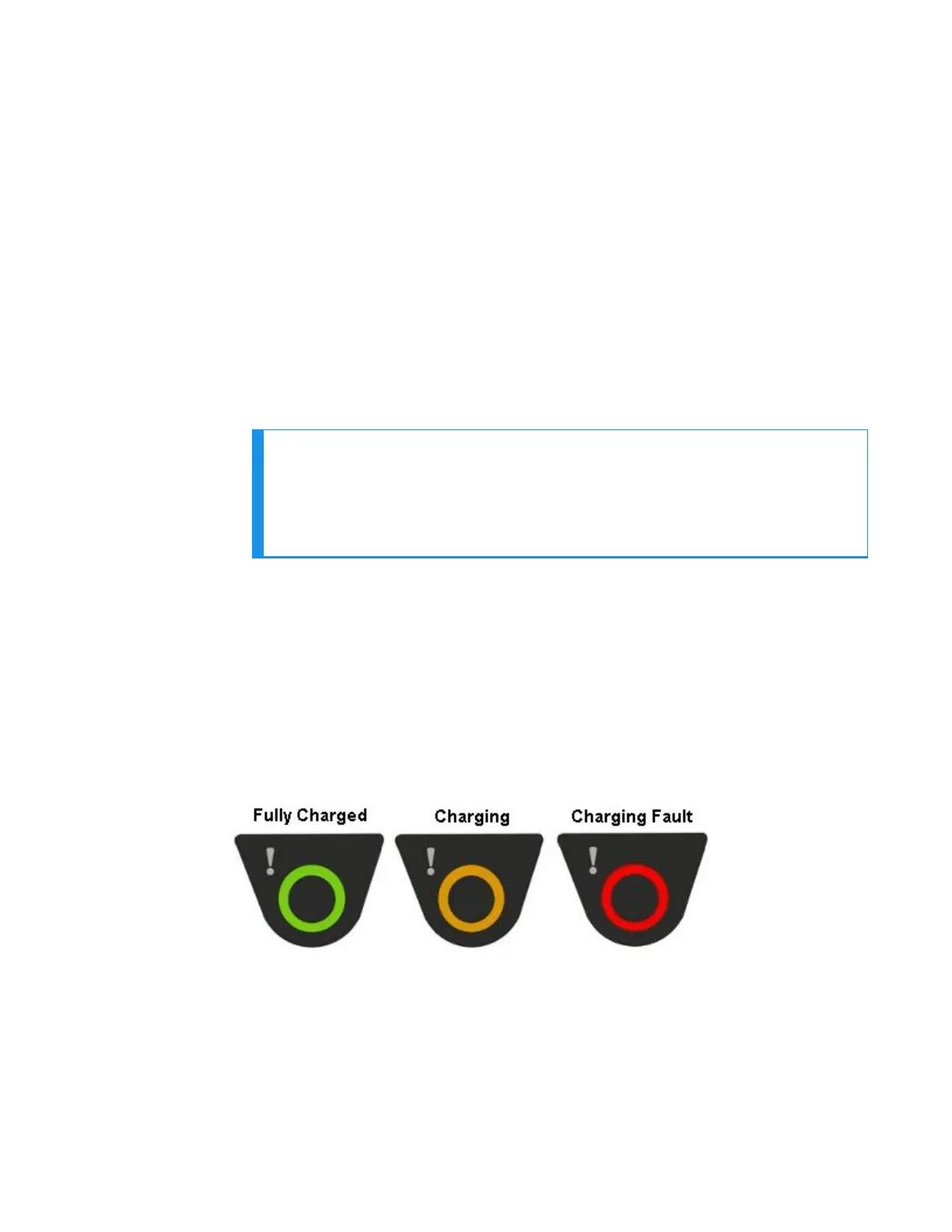

The following chart describes the patterns for the battery port LED indicator
lights.
57 SRX3 User Guide - Preliminary
