To connect the HP 16501A Expansion Frame
The HP 16501A Expansion Frame includes an interface cable to connect to the HP 16500C
mainframe. To install the expansion frame, you need to connect the cable from the
mainframe to the expansion frame.
CAUTION
Electrostatic discharge can damage electronic components. Use grounded wriststraps and
mats when performing any service to this card.
1
Turn off the mainframe power switch, then unplug the power cord. Disconnect any
input connections.
2 Verify that the line select switch located on the rear panel of the expansion frame is
in the off position.

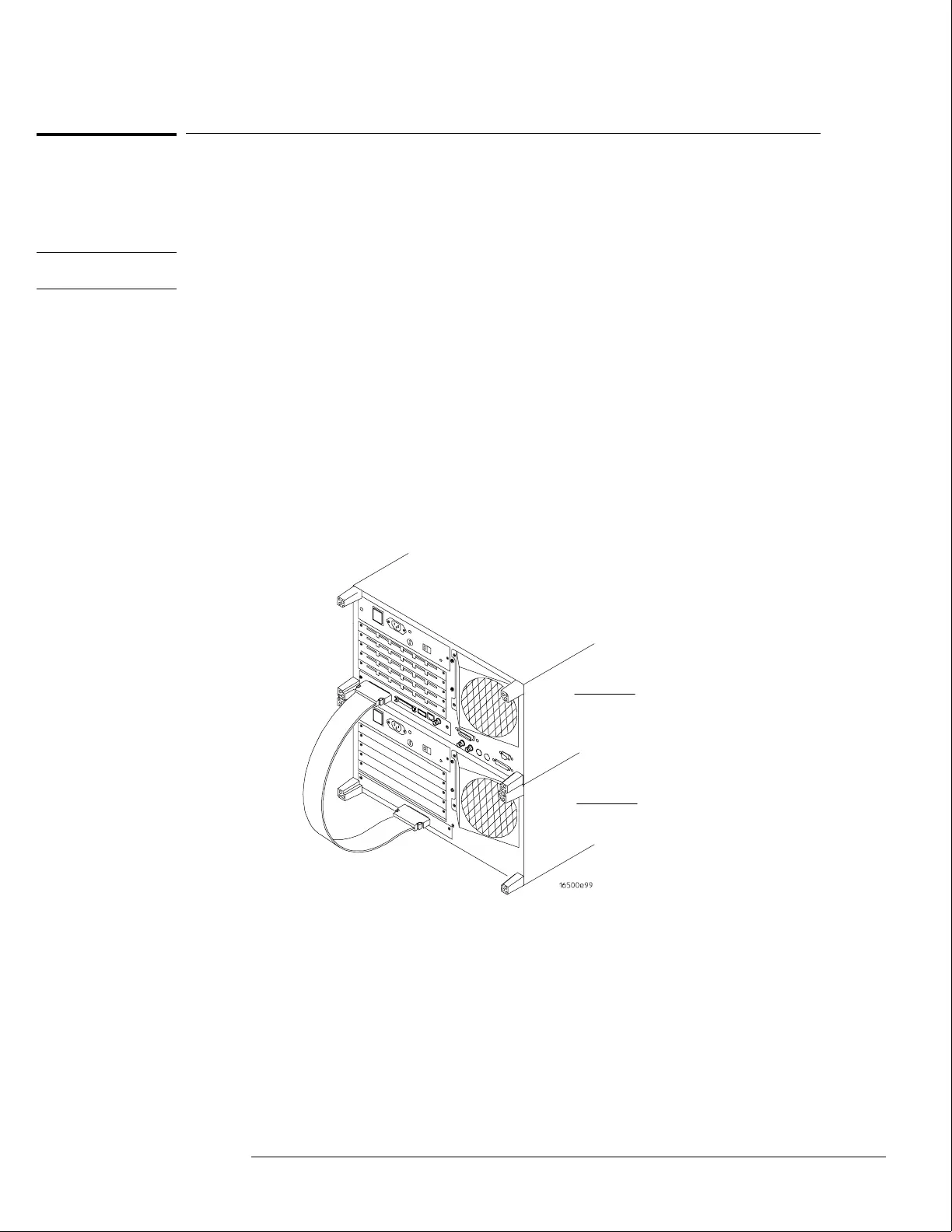

3 Connect the interface cable to the expansion frame and to the CPU board in the
mainframe.
To ensure correct insertion, the 68-pin "D" connectors on each end of the interface cable are
asymmetric in shape. They only fit into their respective ports on the cards when oriented to
match the shape of the ports.
When connecting the interface cable, you will hear two clicks. Make sure the cable connector
is properly seated into the port by pulling the connector without pressing the release tabs. If
the connector is properly seated, it will remain connected to the port.
4
Turn on the system.
a Connect a power cord to each frame.
b Turn on the line switch located on the rear panel of each frame.
c Turn on the power standby switch located on the front panel of the mainframe.
When the power-up tests are complete, the mainframe screen shows "Master
Frame" in a blue field.
HP 16501A
HP 16500C
Preparing for Use
To connect the HP 16501A Expansion Frame
2–7
