To access the test patterns
Some procedures on the following pages ask you to access test patterns. This procedure tells
you how to access them and how to exit the test.
1
In the System Configuration menu, touch Configuration, then select Test in the
pop-up menu.
2 Touch the field near the center of the screen to load the Test System.
3 In the Test System Configuration menu, touch Test System, then select Mainframe
Test in the pop-up menu.
The screen displays the Mainframe Test menu.

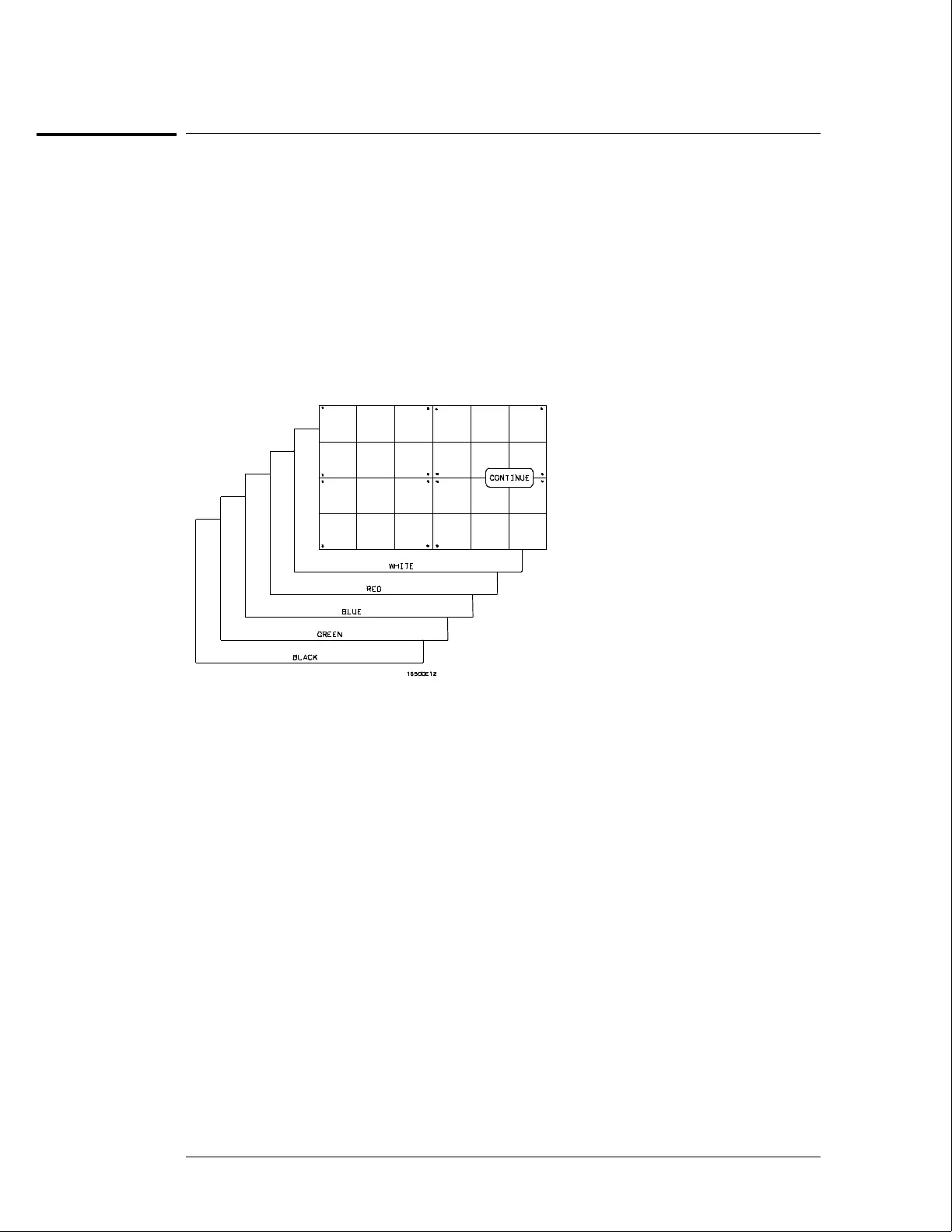

4 Touch the Color Display Test field to display the first test pattern, which is the
white, cross-hatch pattern.
5 Touch Continue to see the next test pattern.
With every touch of the Continue field, the next test pattern will be displayed. When
Continue is selected from the black raster pattern, the Mainframe Test menu will be displayed.
Notice that the status of the Display field changes to Tested.
6
To exit the test system, touch the Mainframe Test field, then touch Test System.
Touch Configuration, select Test, then touch the field near the center of the screen
to exit the test system.
Calibrating and Adjusting
To access the test patterns
4–4
