HP 16500C Service Manual

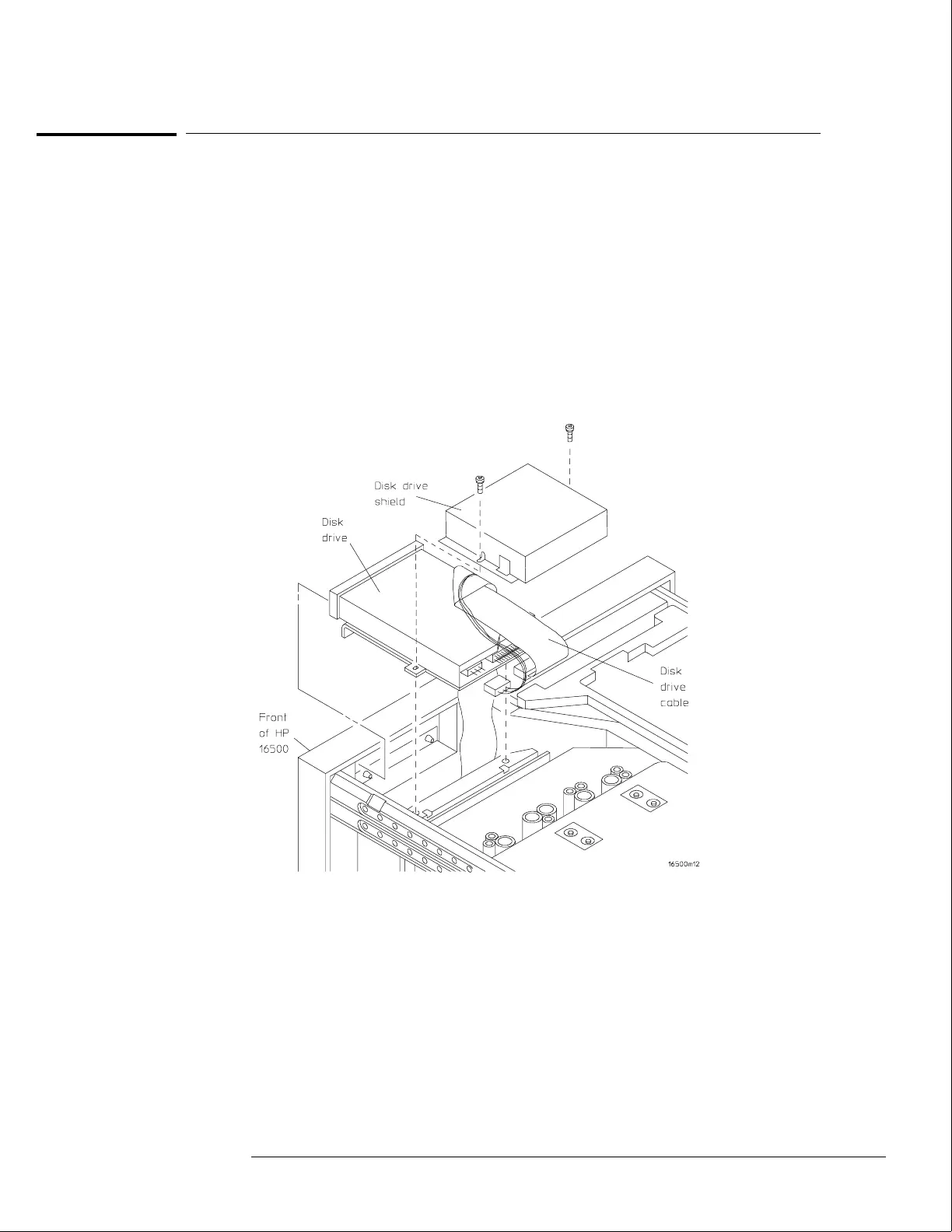

To remove and replace the flexible disk drive
HP 16500C
1
Using previous procedures, remove the following assemblies:
•
Top cover
2
Remove the two disk drive mounting screws.
3 Slide the flexible disk drive assembly toward the rear panel until the assembly is out
of the instrument.
4 Disconnect the control cable and power cable for the disk drive.
5 Remove the mounting bracket from the bottom of the assembly.
6 Reverse this procedure to replace the flexible disk drive.
Replacing Assemblies
To remove and replace the flexible disk drive
6–5
