29

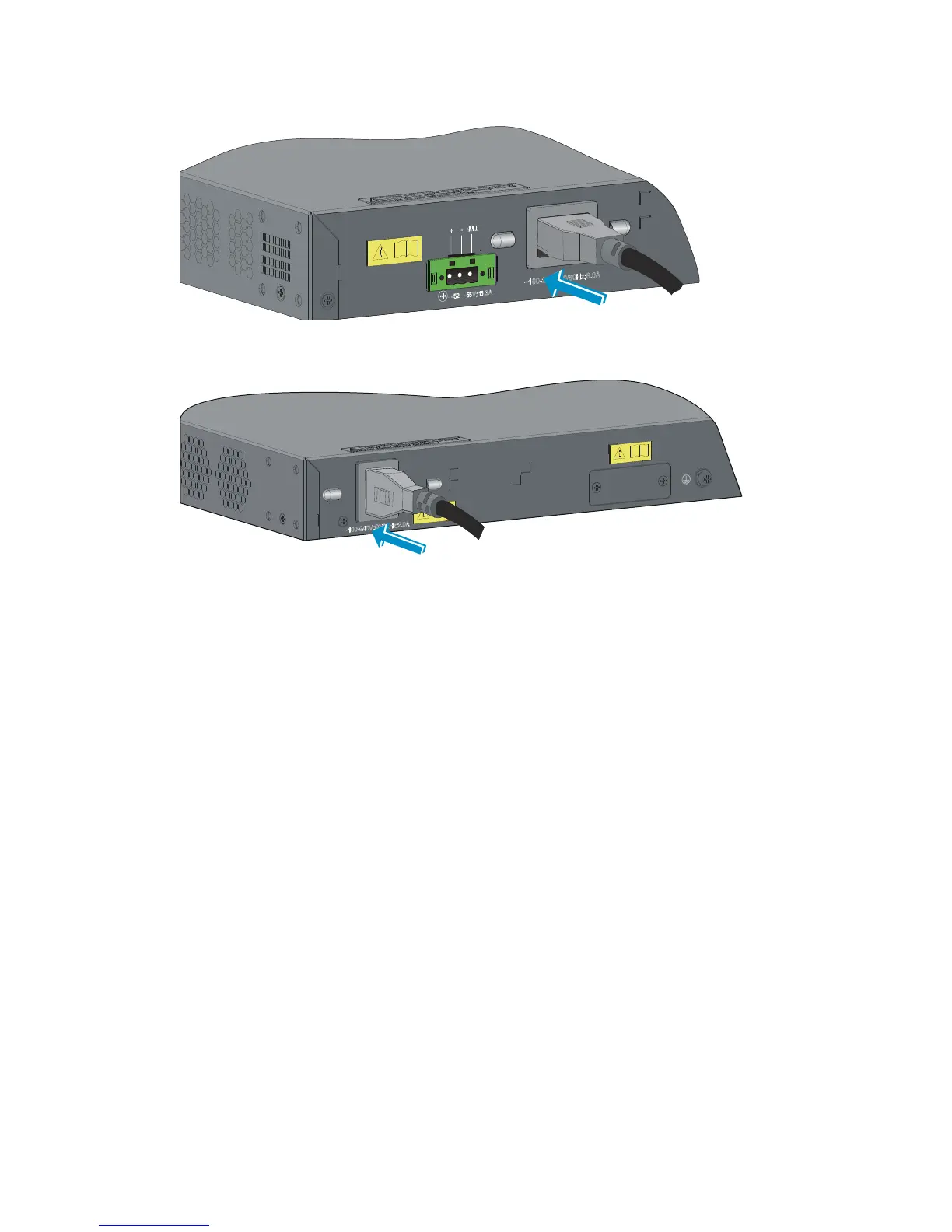

Figure 36 Connecting the AC power cord to the switch
Figure 37 Connecting the AC power cord to the switch
Connecting the switch to a –54 VDC output RPS
This section applies to the 5800-48G-PoE+ (1 slot), 5800-48G-PoE+ TAA (1 slot), 5800-24G-PoE+, and
5800-24G-PoE+TAA switches.
To connect these switches to the RPS that provides –54 VDC output:
1. Unpack the RPS power cord, identify the plug for connecting to the switch, correctly orient the plug
with the RPS receptacle on the switch chassis, and insert the plug into the receptacle (see callout 1
in Figure 38).
If you cannot insert the plug into the recept
acle, re-orient the plug rather than use excessive force
to push it in.
2. Tighten the screws on the plug with a flat-blade screwdriver to secure the plug in the RPS receptacle
(see callout 2 in Figure 38).
3. Connect the other end of th
e power cord to the RPS.
