ARNING!
Do not touch the protection cover marked by the yellow warning label on the OAP card.
Underneath this protection cover is a heat radiator. After the OAP card runs for a period of time, this area
can get too hot to touch with bare hands.
CAUTION:
Do not touch the surface-mounted components directly with your hands.
To remove the card in the OAP card slot:
1. Wear an ESD wrist strap and make sure it makes good skin contact and is correctly grounded.
2. Loosen the captive screws on the OAP card with the Phillips screwdriver until all spring pressure is
released. Do not use excessive force.
3. Pull the ejector levers outward (see callout 3 in Figure 53), and pull out the OAP ca
rd slowly along
the guide rails (see callout 4 in Figure 53).
4. If you do not install a new
OAP card in the slot, install a filler panel to prevent dust from entering
the switch and ensure good ventilation in the switch.

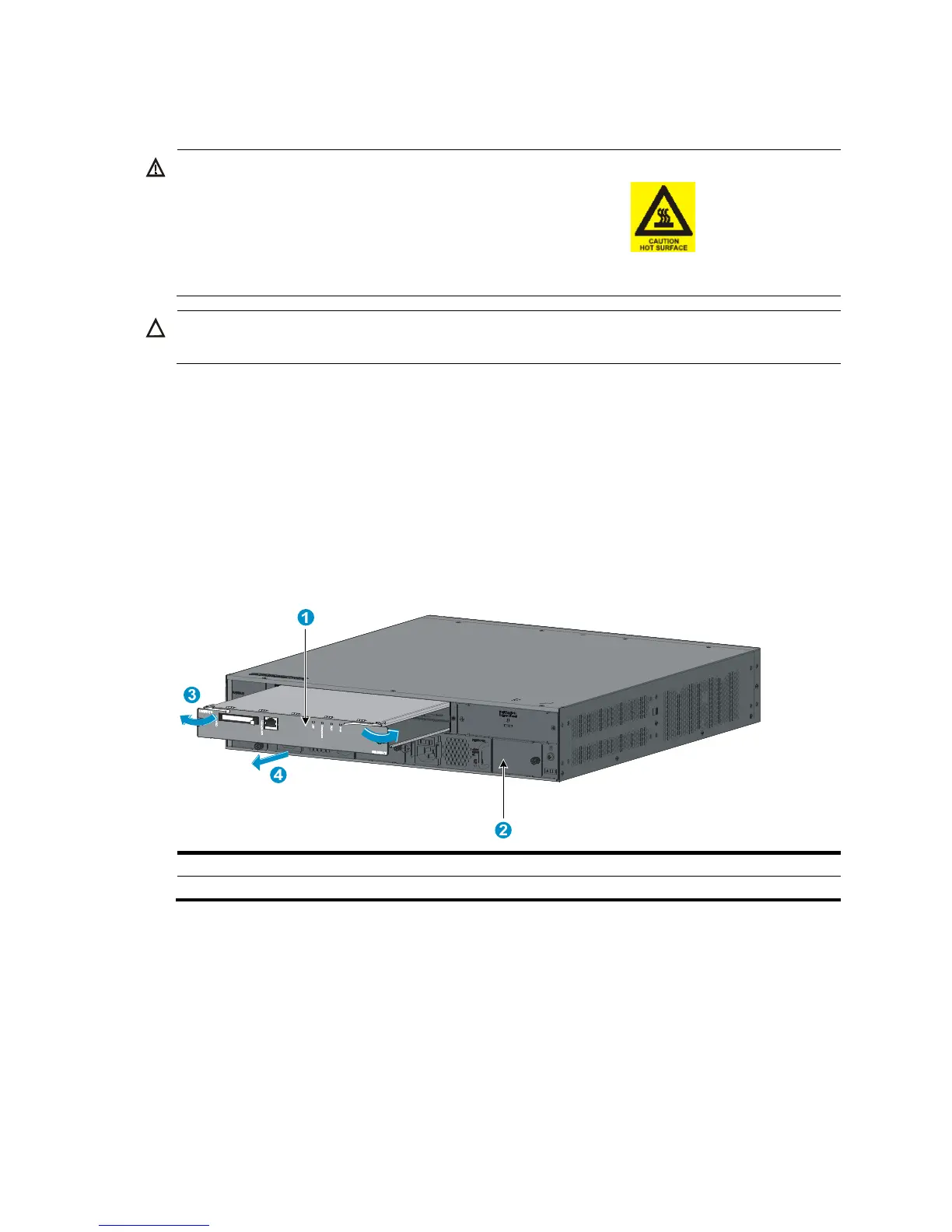

Figure 53 Removing the OAP card
(1) OAP card (2) Chassis rear panel
Installing an OAP card in an expansion interface card slot
Unpack the OAP card and verify that the card can be installed in an expansion interface card slot (see
"OAP cards")
.
Follow the procedure described in "Installing an interface card" to inst
all the OAP card in an expansion
interface card slot.
