HP 5800-48G User Manual

72
5800-24G-PoE+/5800-24G-PoE+TAA

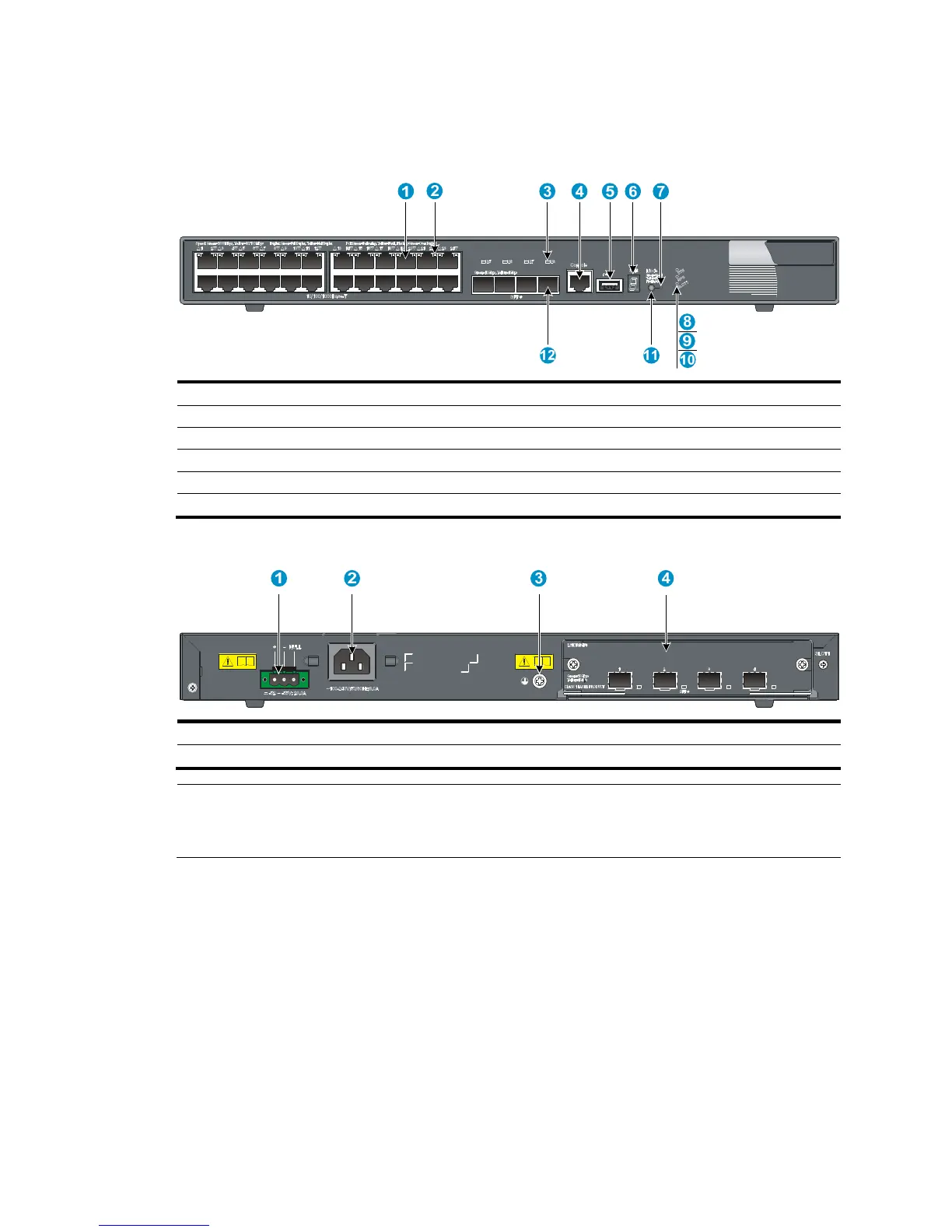

Figure 82 Front panel
(1) 10/100/1000Base-T auto-sensing Ethernet port (2) 10/100/1000Base-T Ethernet port LED
(3) SFP+ port LED
(4) Console port
(5) USB port (6) Seven-se
g
ment LED
(7) Port mode LED (8) System status LED (SYS)
(9) RPS status LED (RPS) (10) Interface card status LED (SLOT1)
(11) Port LED mode switchin
g
button
(12) SFP+ port
Figure 83 Rear panel
(1) RPS receptacle (2) AC-input power receptacle
(3) Groundin
g
screw (4) Interface card
slot
NOTE:
The 5800-24G-PoE+ and 5800-24G-PoE+TAA switches come with the expansion interface card slot
covered by a filler panel. In this figure, an LSW1SP4P0 interface card is installed in the slot.
