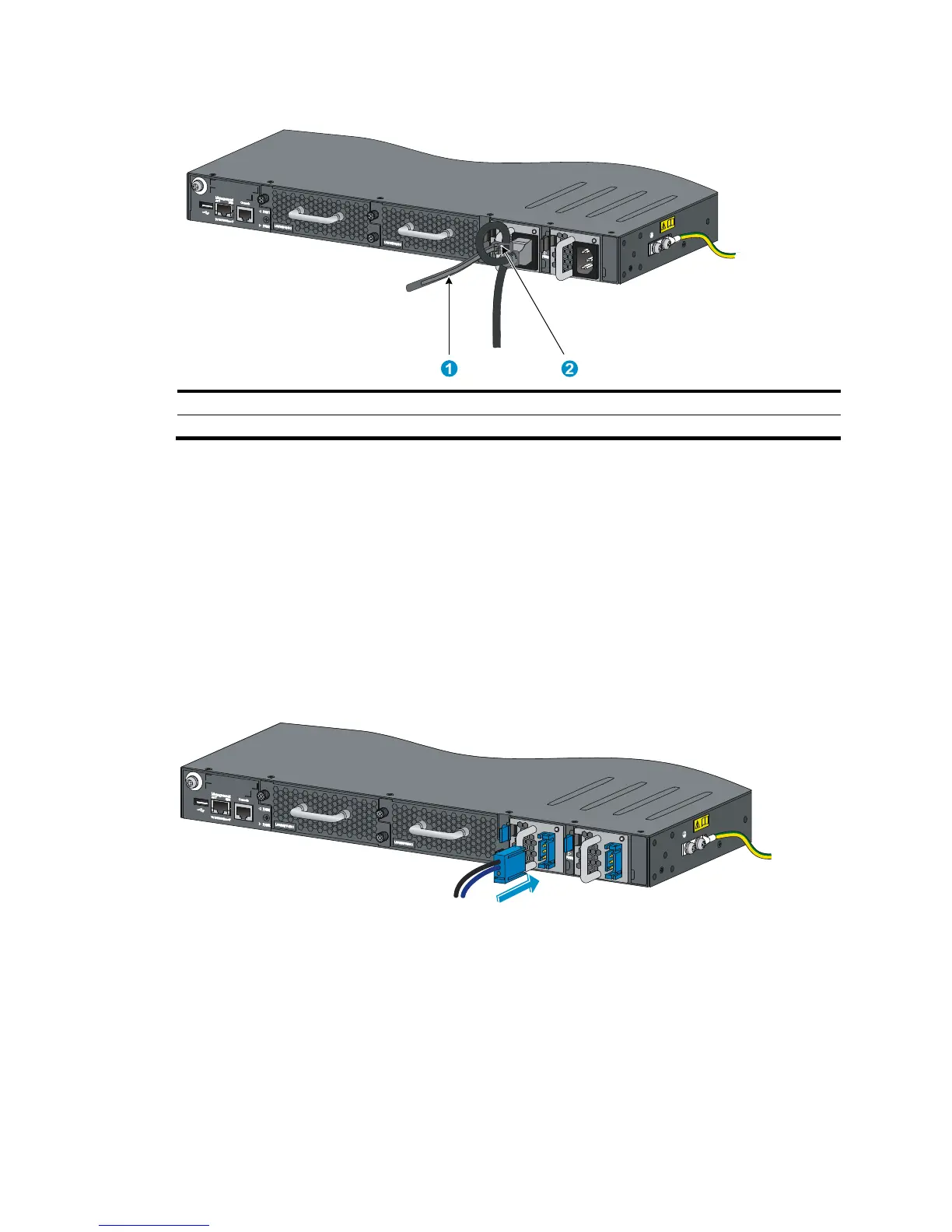

Figure 46 Connecting the 650 W AC/300 W AC power supply
(1) Cable tie
(2) Tighten the cable tie to secure the power cord to the handle of the power supply
Connecting the 650 W DC/300 W DC power supply
1. Unpack the DC power cord, identify the plug for connecting to the power supply, orient the plug
with the power receptacle on the power supply, and insert the plug into the receptacle (see Figure
47).
If you cannot insert the plug into the recept
acle, re-orient the plug rather than use excessive force
to push it in.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure 46.
3. Connect the other end of th
e power cord to the DC power source.
Figure 47 Connecting the 650 W DC/300 W DC power supply
Installing/removing an interface card
This section applies to the 5800 and 5820X switches that have expansion interface slots. For the
interface cards available for the switches, see "Interface cards."
This section uses the LSW1SP4P0 interface card as an example to describe the procedures of installing
and removing an interface card.
