69

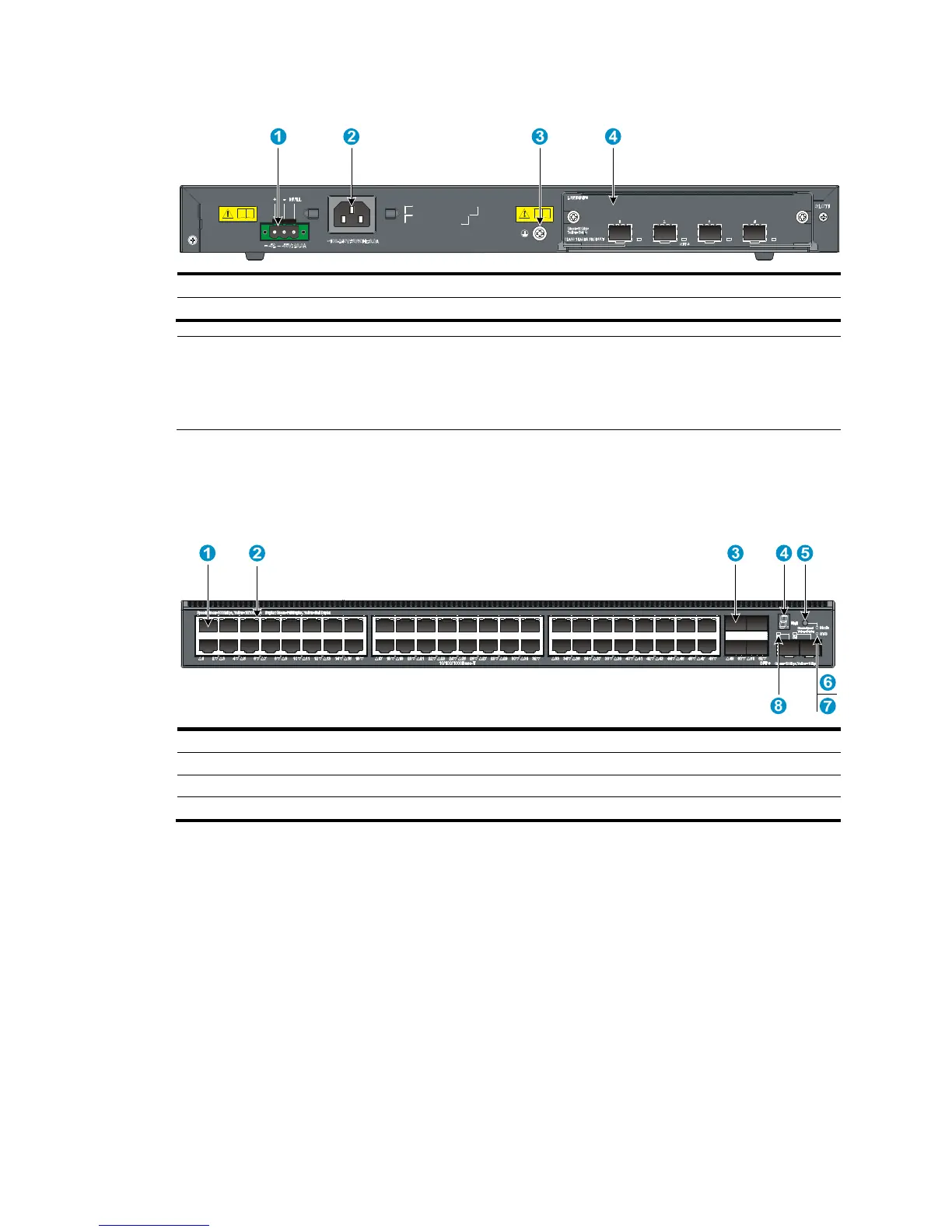

Figure 76 Rear panel
(1) RPS receptacle (2) AC-input power receptacle
(3) Groundin
g
screw (4) Expansion interface card slot
NOTE:
The 5800-48G-PoE+ (1 slot) and 5800-48G-PoE+ TAA (1 slot) switches come with the expansion
interface card slot covered by a filler panel. In this figure, an LSW1SP4P0 interface card is installed in the
slot.
5800AF-48G
Figure 77 Front panel
(1) 10/100/1000Base-T auto-sensin
g
Ethernet port
(2) 10/100/1000Base-T Ethernet port LED
(3) SFP+ port (4) Seven-se
g
ment LED
(5) Port LED mode switching button (6) Port mode LED
(7) System status LED (SYS) (8) SFP+ port
LED
