40
Removing the OAP card in an expansion interface card slot
See "Removing an interface card."
Installing/removing a PoE module
You can install a hot swappable PoE module (LSW148POEM) in a 5800-48G-PoE+ (2 slots) or
5800-48G-PoE+ TAA (2 slots) switch to supply power to devices such as IP telephones, wireless LAN
access points (APs), and web cameras through Ethernet ports over twisted pair cable.
Installing a PoE module
1. Wear an ESD wrist strap and make sure it makes good skin contact and is correctly grounded.
2. Loosen the captive screws on the filler panel over the PoE module slot with a Phillips screwdriver
and remove the filler panel.
3. Put away the removed filler panel for future use.
4. Unpack the PoE module.
5. Push the PoE module slowly along the guide rails into the slot (see callout 1 in Figure 54) and pu
sh
the ejector levers inward to lock the PoE module in position (see callout 2 in Figure 54).
Do not use excessive force.
6. Fasten the captive screws on the PoE module with a Phillips screwdriver to securely fix the PoE
module in the slot.

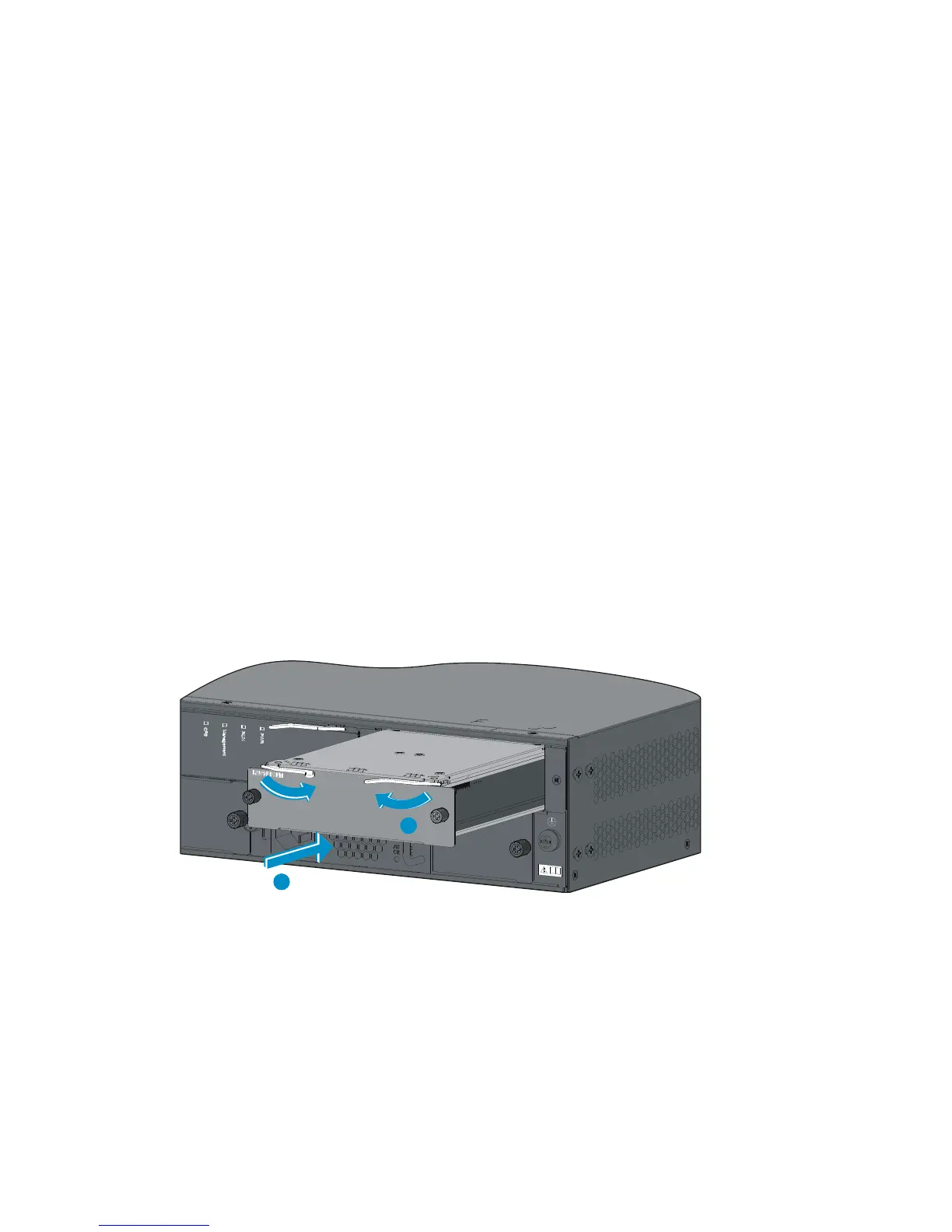

Figure 54 Installing a PoE module
Removing the PoE module
1. Wear an ESD wrist strap and make sure it makes good skin contact and is correctly grounded.
2. Use a Phillips screwdriver to completely loosen the captive screws on the PoE module.
3. Pull the ejector levers outward (see callout 1 in Figure 55). Then pull
out the PoE module slowly
along the guide rails (see callout 2 in Figure 55).
Do not us
e excessive force.
1
2
