Figure 34 Removing the power supply
(1) Pivot the latch to the right with your thumb (2) Pull the power supply out
Connecting the power cord
Connecting the 650W AC power supply
1. Insert the female connector of the AC power cord supplied with the power supply into the power
receptacle on the power supply.
2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure 35.
3. Connect the other end of the power cord to an AC power outlet.

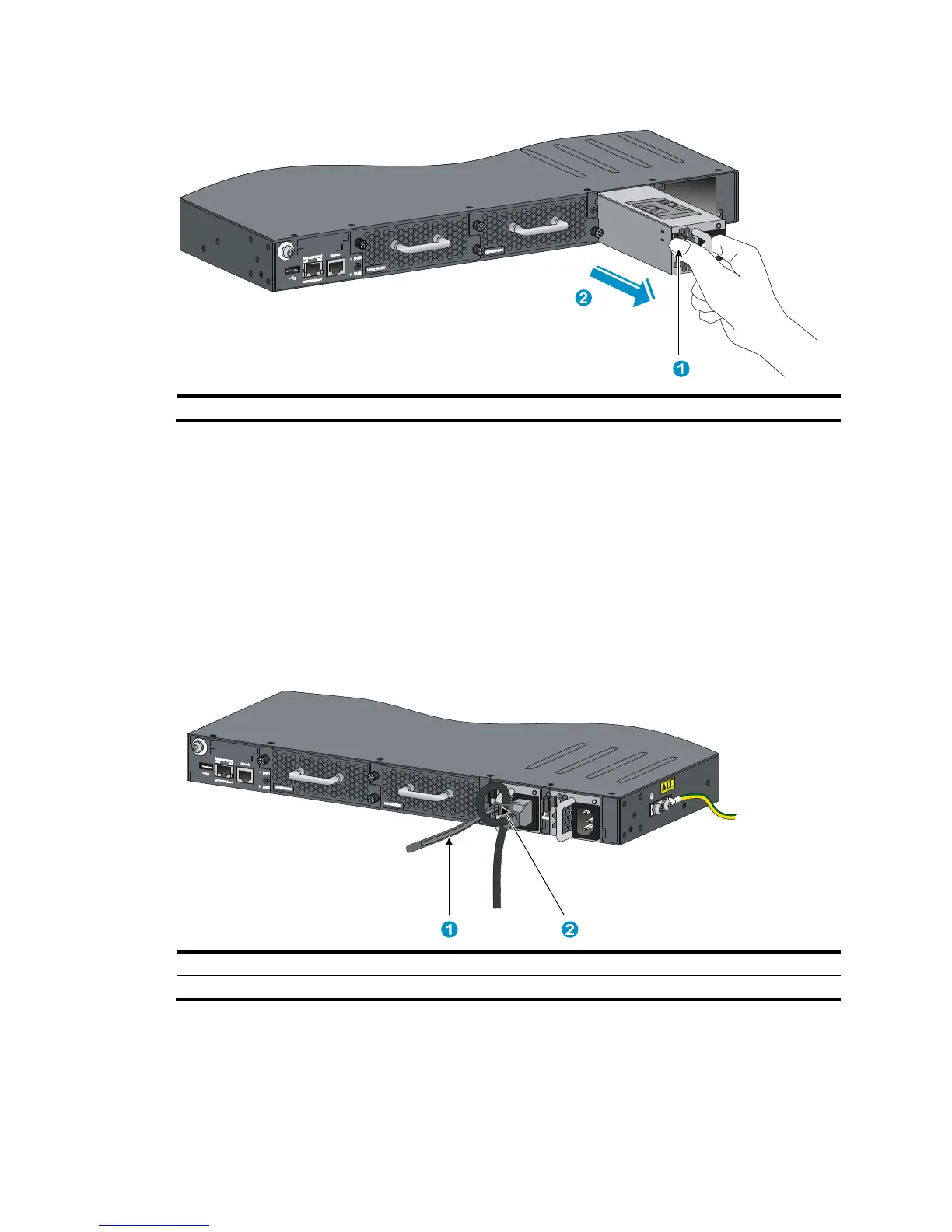

Figure 35 Connecting the 650W AC power supply
(1) Cable tie
(2) Ti
hten the cable tie to secure the power cord to the handle of the power supply
Connecting the 650W DC power supply
1. Unpack the DC power cord, identify the plug for connecting to the power supply, orient the plug
with the power receptacle on the power supply, and insert the plug into the receptacle. See Figure
36.
