4
The HP 5900AF-48XG-4QSFP+ and 5900AF-48XG-4QSFP+ TAA switches also come with the fan tray
slots empty. You must install two fan trays for the 5900AF-48XG-4QSFP+ and 5900AF-48XG-4QSFP+
TAA for adequate heat dissipation, and their models must be the same. In this figure, two LSWM1FANSC
fan trays are installed. For more information about installing and removing the fan tray, see
"Installing/removing a fan tray."

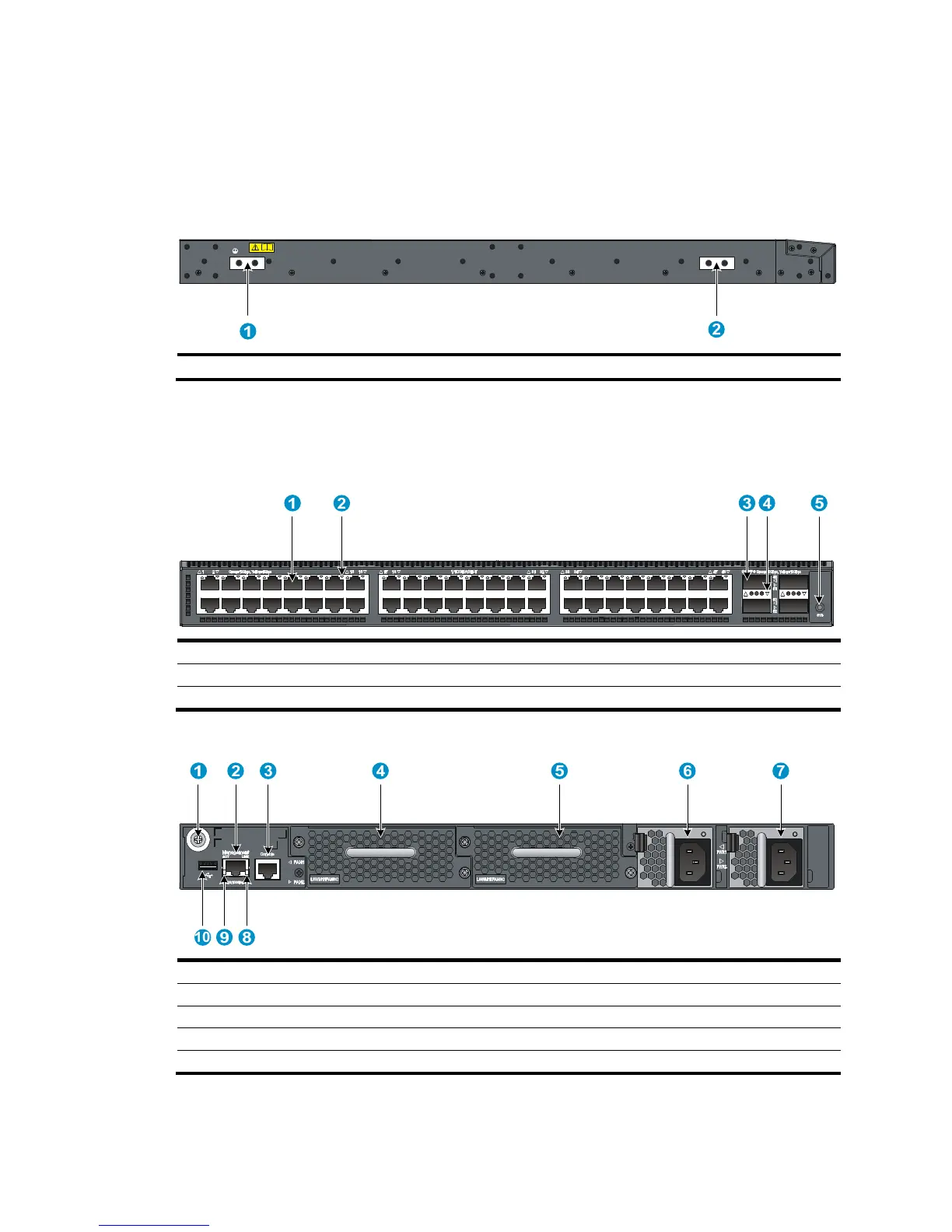

Figure 6 H
P 5900AF-48XG-4QSFP+/HP 5900AF-48XG-4QSFP+ TAA left side panel
(1) Primary
point 1
HP 5900AF-48XGT-4QSFP+ panel views
Figure 7 HP 5900AF-48XGT-4QSFP+ front panel
(1) 1/10GBase-T autosensing Ethernet port (2) 1/10GBase-T autosensing Ethernet port LED
(3) QSFP+ port (4) QSFP+ port LED
(5) System status LED (SYS)
Figure 8 HP 5900AF-48XGT-4QSFP+ rear panel
(1) Groundin
ement Ethernet port
(3) Console port (4) Fan tray slot 1
(5) Fan tray slot 2
slot 2 (8) LINK LED for the mana
(9) ACT LED for the management Ethernet port (10) USB port
The HP 5900AF-48XGT-4QSFP+ switch comes with the power supply slots empty and the filler modules
for the slots as accessories. You can install one or two power supplies for the switch as needed. In Figure
