40
A5120-24G SI IRF fabric daisy chain and ring topology examples are shown in 0 and Figure 42.

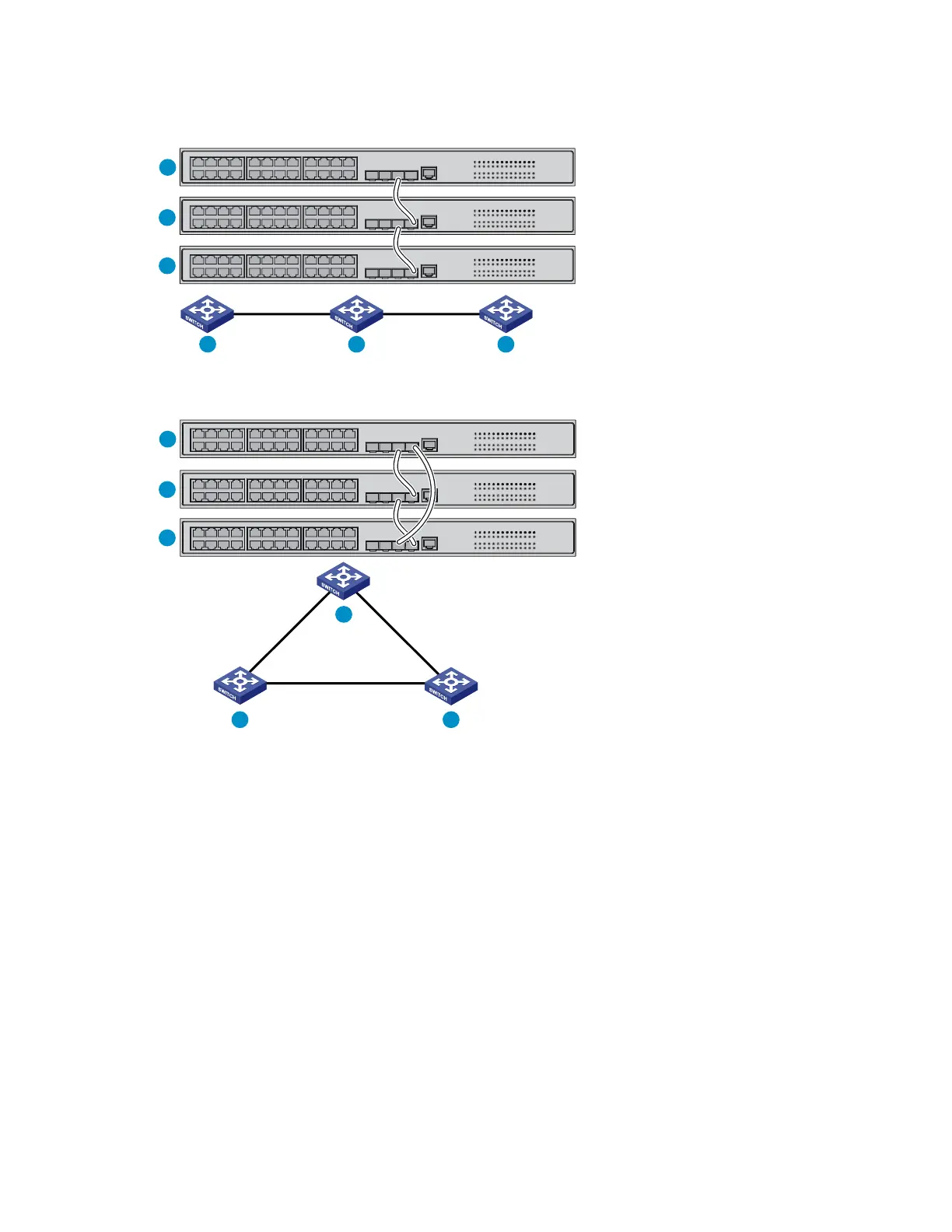

Figure 41 A5120 SI IRF fabric in daisy chain topology
IRF-port1
IRF-port2
IRF-port1
IRF-port2
1 2 3
1
2
3
Figure 42 A5120 SI IRF fabric in ring topology
IRF-port1
IRF-port2
IRF-port1
IRF-port1
IRF-port2
IRF-port2
1
2 3
1
2
3
Identifying physical IRF ports on the member switches
Follow your topology and connection scheme in identifying the physical IRF ports on the member
switches.
