HP A5120 EI Series Installation Guide

59
(3) Console port
(4) Power LED (Power)
(5) 1000Base-X SFP port
(6) 1000Base-X SFP port LED
Figure 65 Rear panel
1 2
(1) AC-input power receptacle
(2) Grounding screw
A5120-24G-PPoE+ SI

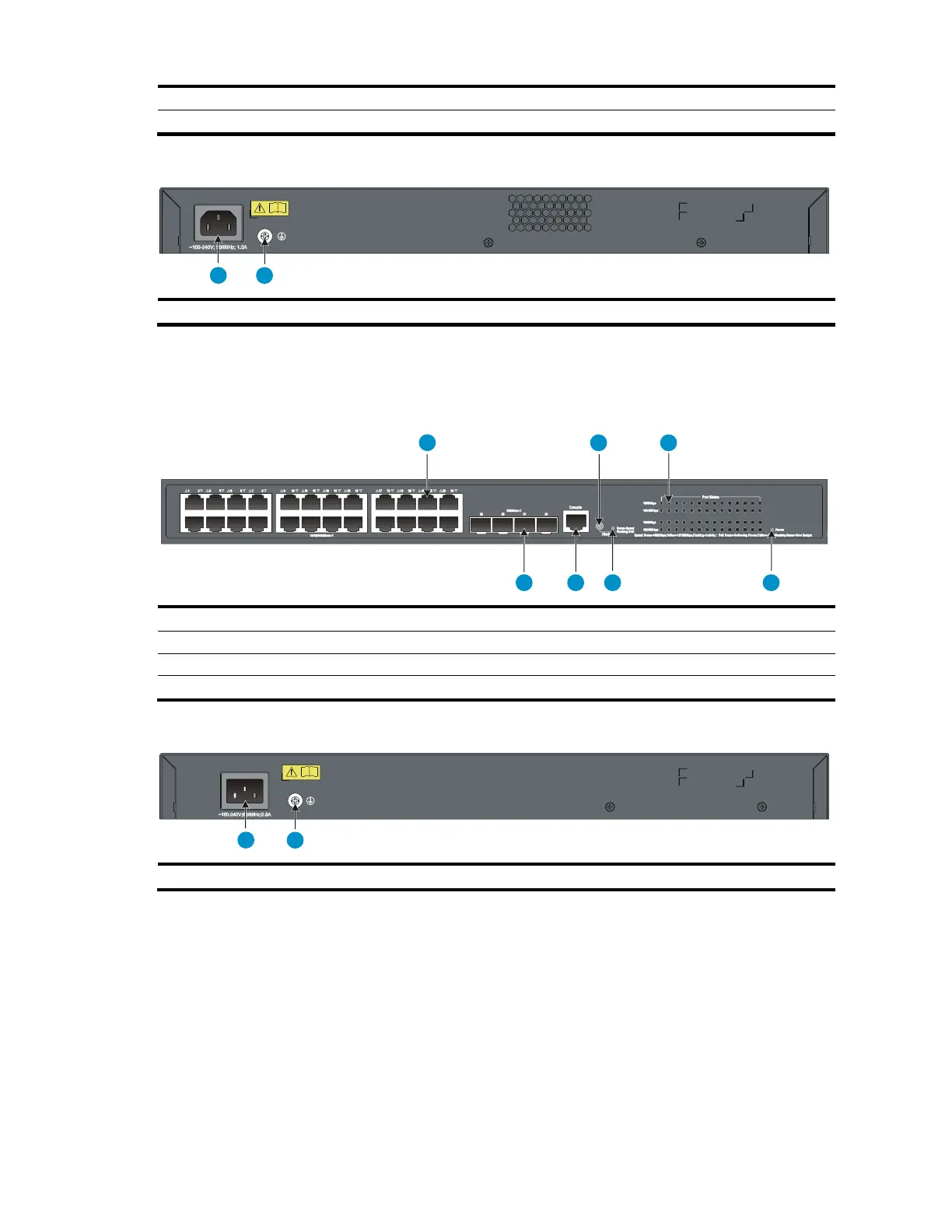

Figure 66 Front panel
1 2 3
4567
(1) 10/100/1000Base-T auto-sensing Ethernet port
(2) Port LED mode switching button
(3) Port LED
(4) Power LED (Power)
(5) Port mode LED
(6) Console port
(7) 1000Base-X SFP port
Figure 67 Rear panel
1 2
(1) AC-input power receptacle
(2) Grounding screw
