55
A5120-48G EI
CAUTION:
The A5120-48G EI switch does not support interface cards. To ensure good ventilation, do not remove
the interface card slot filler panels.

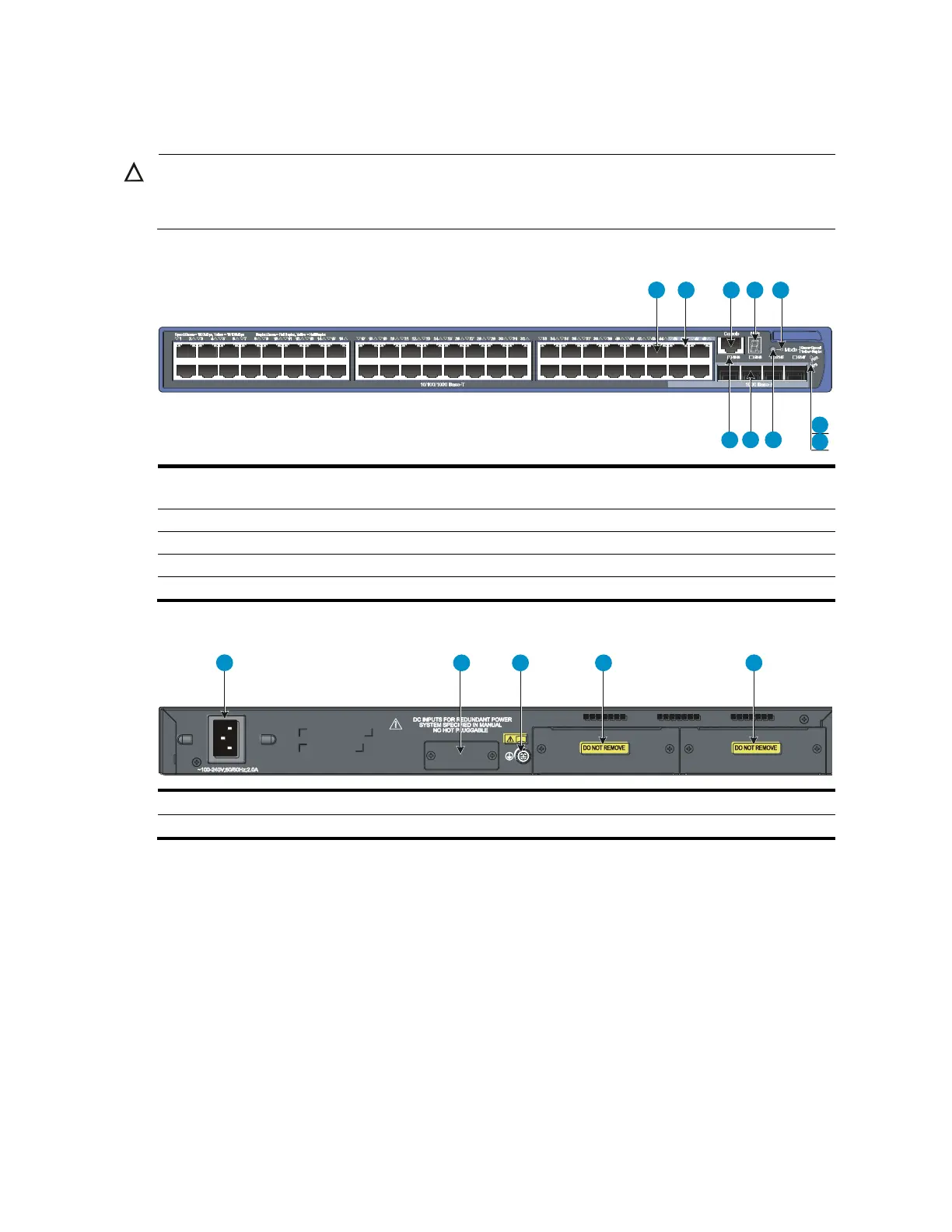

Figure 54 Front panel
1 2 3 4 5
6
7
89
10
(1) 10/100/1000Base-T auto-sensing Ethernet
port
(2) 10/100/1000Base-T Ethernet port LED
(3) Console port
(4) Seven-segment LED (Unit)
(5) Port mode LED (Mode)
(6) System status LED (PWR)
(7) RPS status LED (RPS)
(8) Port LED mode switching button
(9) SFP port
(10) SFP port LED
Figure 55 Rear panel
1 2 3 4 4
(1) AC-input power receptacle
(2) RPS receptacle (with filler panel)
(3) Grounding screw
(4) "DO NOT REMOVE" label
