HP A5120 EI Series Installation Guide

57
A5120-48G-PoE+ EI (2 slots)/A5120-48G-PoE+ EI TAA (2
slots)
The A5120-48G-PoE+ EI (2 slots) and A5120-48G-PoE+ EI TAA (2 slots) switches come with the
expansion interface card slots covered by filler panels.

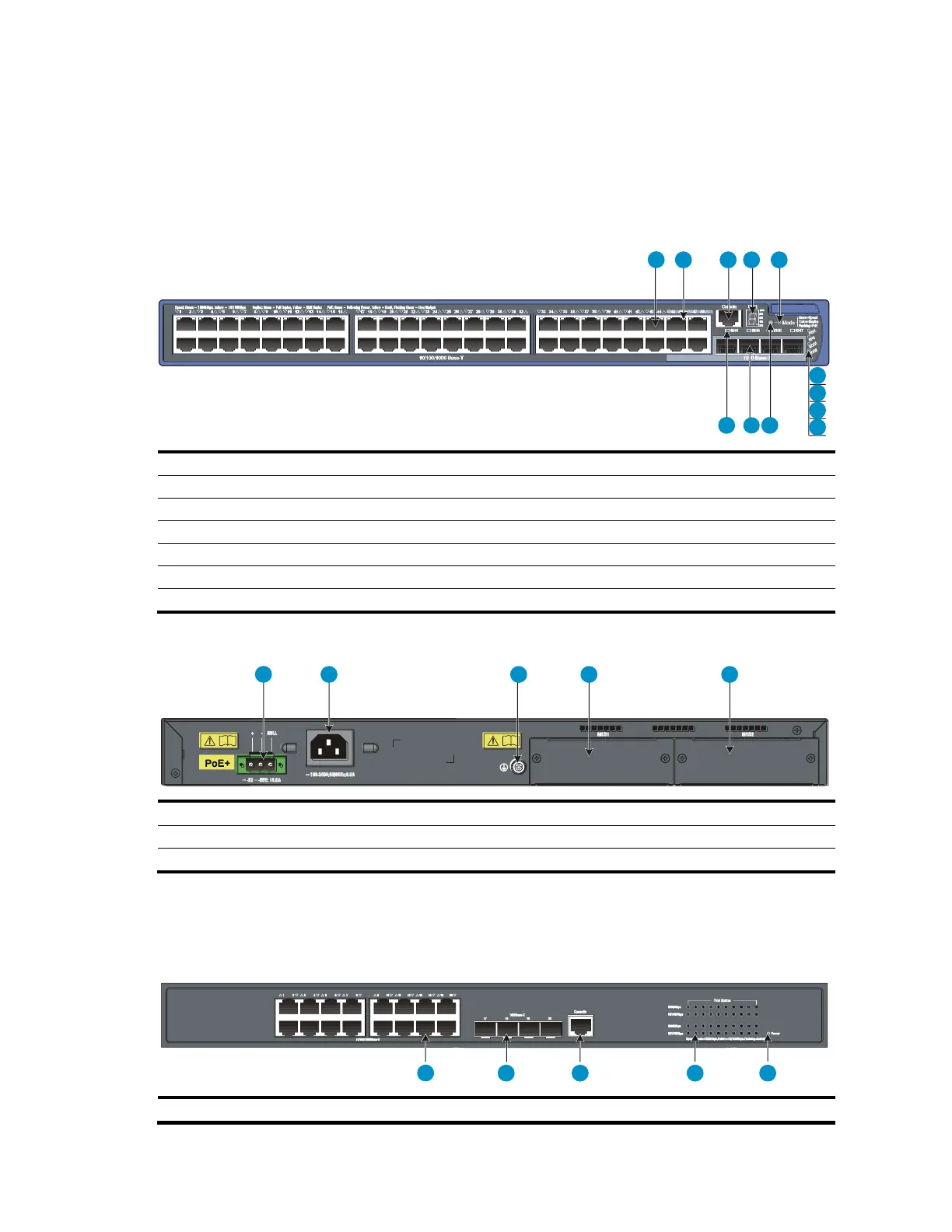

Figure 58 Front panel
1 2 3 4 5
6
7
8
9
101112
(1) 10/100/1000Base-T auto-sensing Ethernet port
(2) 10/100/1000Base-T Ethernet port LED
(3) Console port
(4) Seven-segment LED (Unit)
(5) Port mode LED (Mode)
(6) System status LED (PWR)
(7) RPS status LED (RPS)
(8) Interface card 1 status LED (MOD1)
(9) Interface card 2 status LED (MOD2)
(10) Port LED mode switching button
(11) 1000Base-X SFP port
(12) 1000Base-X SFP port LED
Figure 59 Rear panel
1 2 3 4 5
(1) RPS receptacle
(2) AC-input power receptacle
(3) Grounding screw
(4) Interface card slot 1 (MOD1)
(5) Interface card slot 2 (MOD2)
A5120-16G SI
Figure 60 Front panel
1 2 3 4 5
(1) 10/100/1000Base-T auto-sensing Ethernet port
(2) 1000Base-X SFP port
