HP DL360 Maintenance And Service Guide

Removal and Replacement Procedures
4. Remove the appropriate PCI riser board assembly. Refer to “PCI Riser Board Assembly”
earlier in this chapter.
5. Slide the expansion board out of the slot.

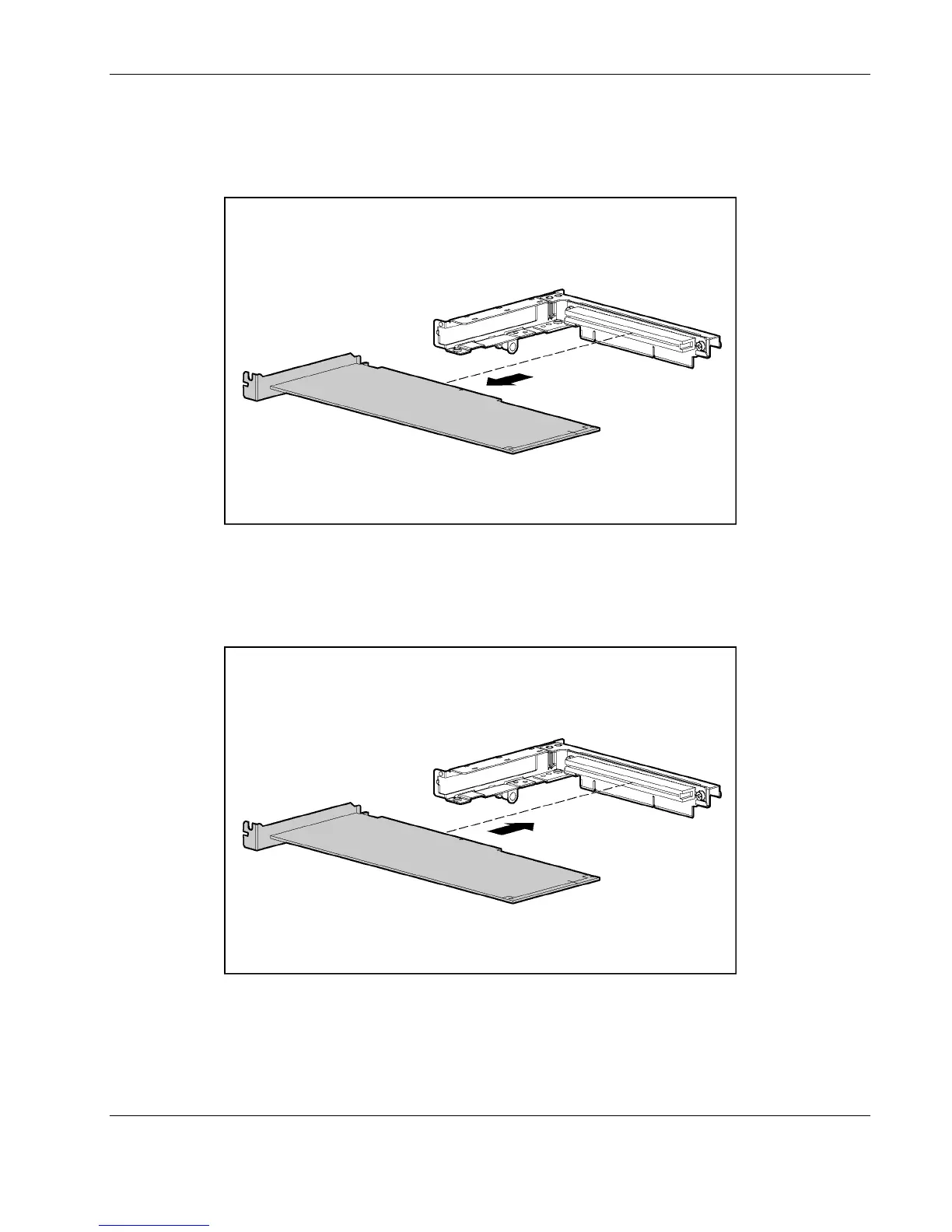

Figure 2-24: Removing an expansion board from the PCI riser
board assembly
6. Align the expansion board with the guiding groove.
7. Slide the expansion board into the slot until the board firmly seats.
Figure 2-25: Installing an expansion board into the PCI riser board
assembly
8. Install the PCI riser board assembly into the appropriate PCI expansion board slot. Refer
to “PCI Riser Board Assembly” earlier in this chapter.
HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide 2-23
