Removal and Replacement Procedures
4. Install the heatsink (1).
CAUTION: Before closing the heatsink retaining clip, be sure the processor socket locking
lever is closed. Do not force the lever closed; it should close without resistance. Forcing the
lever closed may result in damage to the processor socket, requiring replacement of the
system board.
5. Close the processor heatsink retaining clips (2).

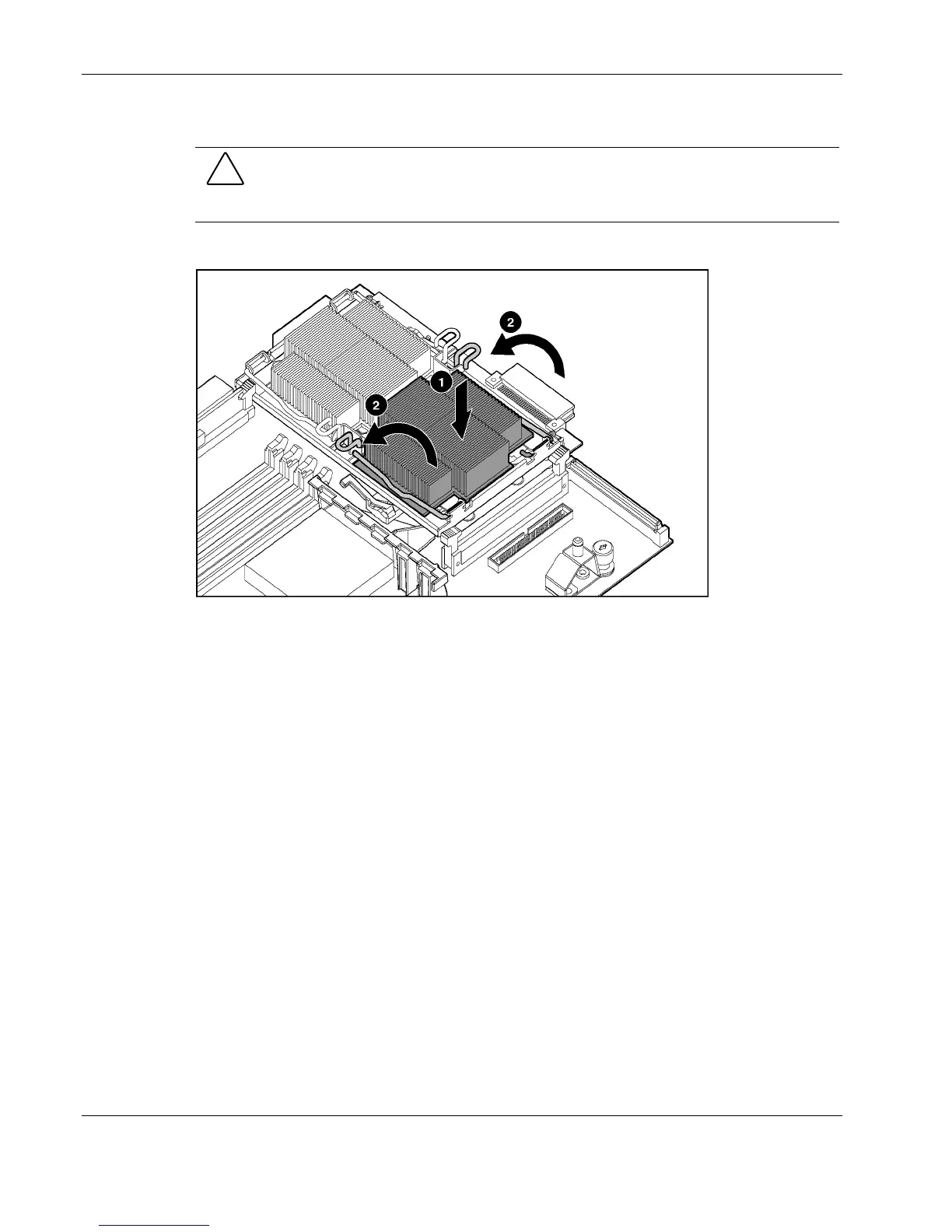

Figure 2-43: Installing the heatsink onto the processor and closing
the locking latches
Processor Power Module
Each processor has an associated PPM. Figure 2-38 shows the location of the processors and
PPMs on the system board.
To replace a PPM:
1. Power down the server. Refer to “Powering Down the Server” earlier in this chapter.
2. Remove the server from the rack. Refer to “Removing the Server from the Rack” earlier
in this chapter.
3. Remove the access panel. Refer to “Server Access Panel” earlier in this chapter.
2-38 HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide
