HP DL360 Maintenance And Service Guide

5
LEDs, Switches, and Jumpers
Status Indicators
The HP ProLiant DL360 Generation 3 server contains the following sets of LED indicators,
which indicate the status of hardware components and settings:
•
•
•
Front panel LED indicators
Rear panel LED indicators
System board LEDs
Use the following sections to determine the location and status of LEDs on the server.
Front Panel LED Indicators
The set of six LEDs on the front of the server indicates server status. The following figure
and table identify and describe the location and function of the LEDs.

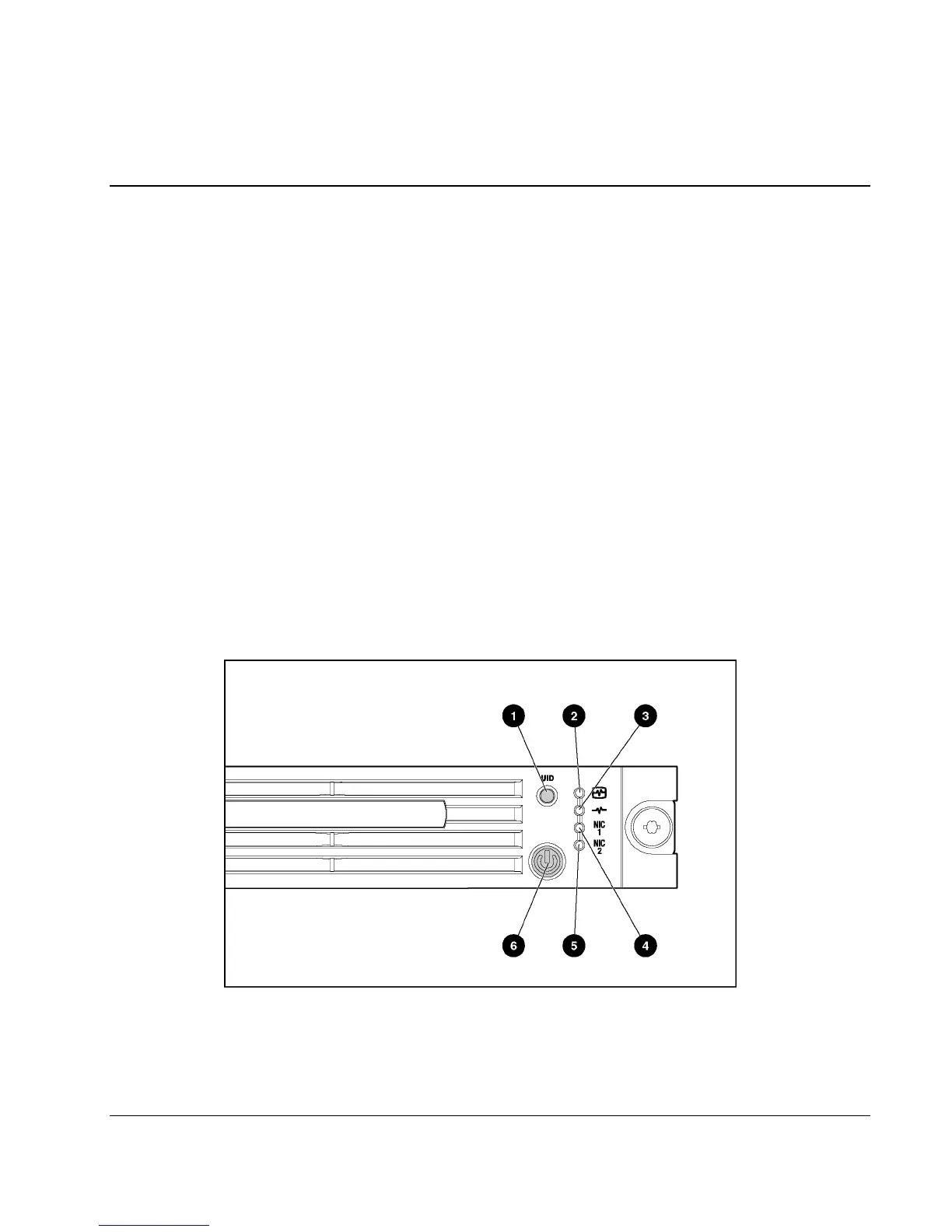

Figure 5-1: Identifying the front panel LED indicators
HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide 5-1
