M.2 solid-state drive

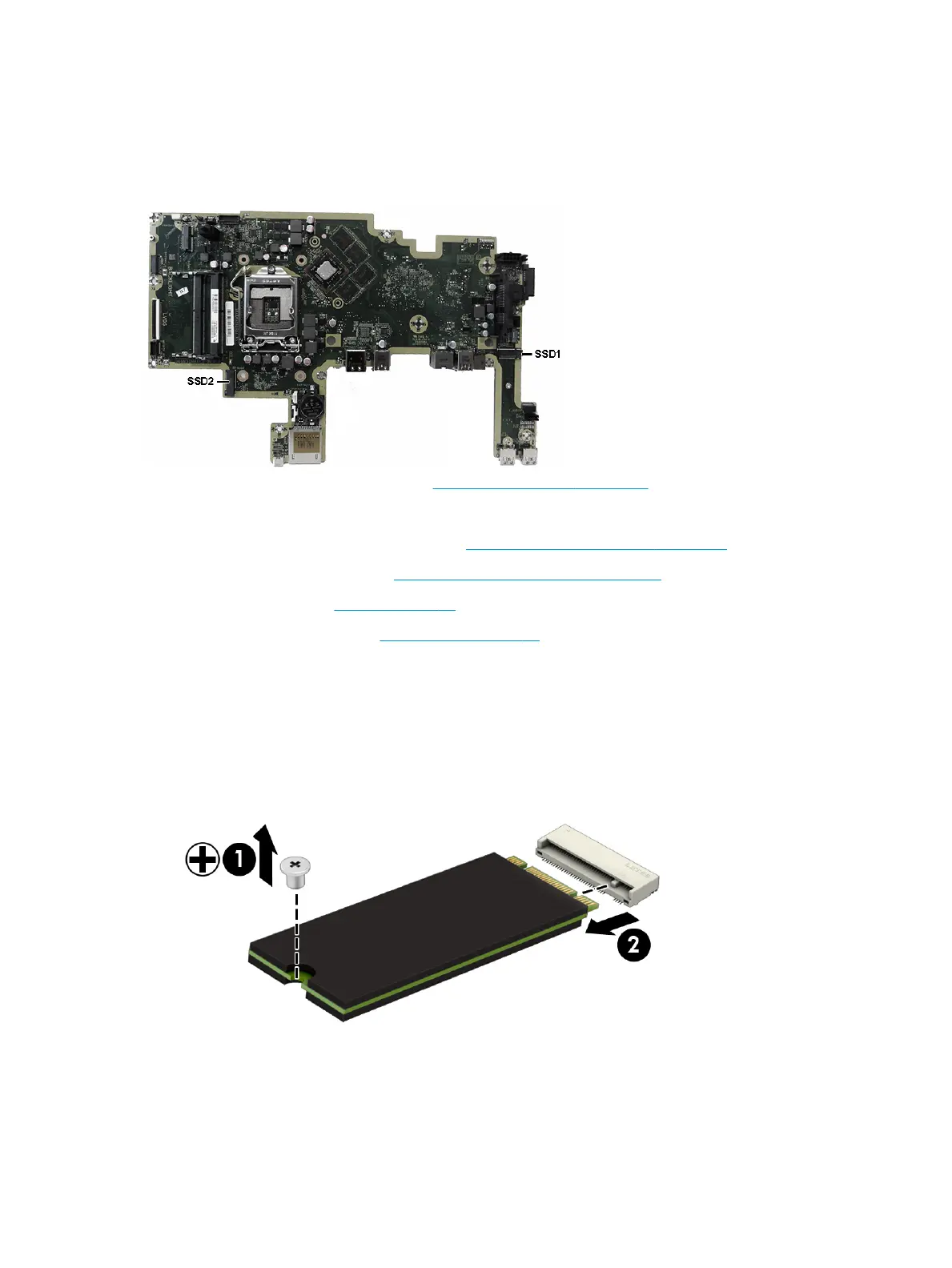

Two M.2 solid-state drive connectors are available on the system board. The connector labeled SSD2 (near
the processor) ts only 22 mm × 80 mm M.2 solid-state drives. The connector labeled SSD1 (on the right side
of the board) ts both 22 mm × 80 mm and 22 mm × 30 mm M.2 solid-state drives.
For a list of available solid-state drives, see Mass storage devices on page 12.
To remove the M.2 solid-state drive:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the Phillips screw (1) that secures the drive to the computer.
6. Pull the drive away to remove it from the socket (2).
To install the solid-state drive, reverse the removal procedures.
30 Chapter 4 Removal and replacement procedures
