Speakers
The speakers are located at the bottom of the computer. Two separate speakers are each secured by two Torx
screws.
To remove the speakers:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the rear I/O cover (see Rear I/O cover on page 47).

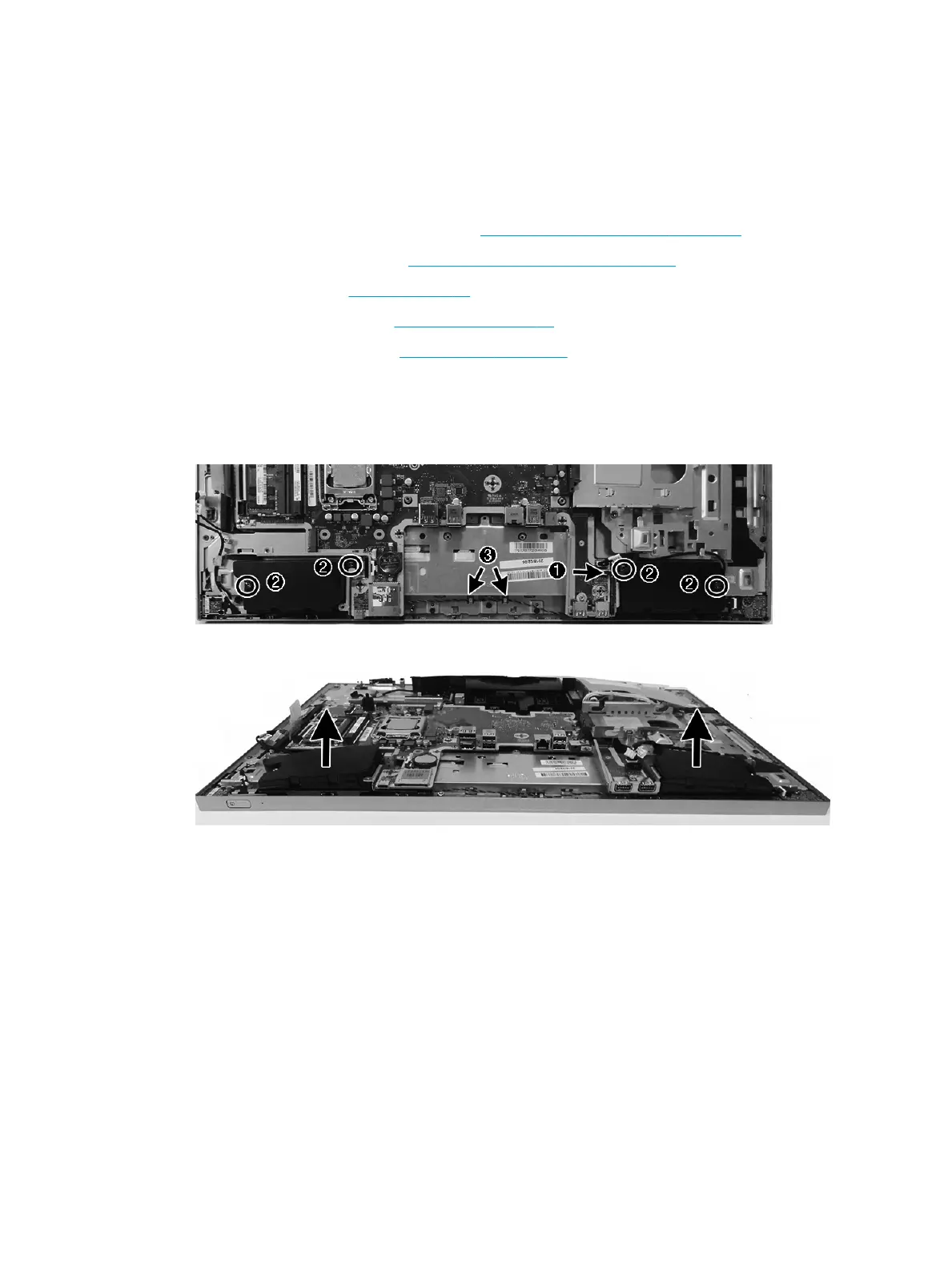

6. Disconnect the speaker cable from the system board (1).
7. Remove two Torx screws (2) that secure each speaker to the computer.
8. Remove speaker cable from the clips and routing path built into the chassis (3).
9. Remove the speakers from the computer.
To install the speakers, reverse the removal procedures.
When installing the speakers, make sure the rubber grommets are correctly installed in the speakers.
Speakers 59
