Webcam module
The webcam is located at the top of the computer, under a plastic shield. The top heat sink screws also secure
the webcam plastic shield.
To remove the webcam module:
NOTE: Webcam appearance can vary.
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. If a discrete heat sink is installed, remove the VESA mounting bracket/fan assembly (see VESA mounting
bracket/fan assembly on page 48).
6. Remove the heat sink (see Heat sink on page 41).

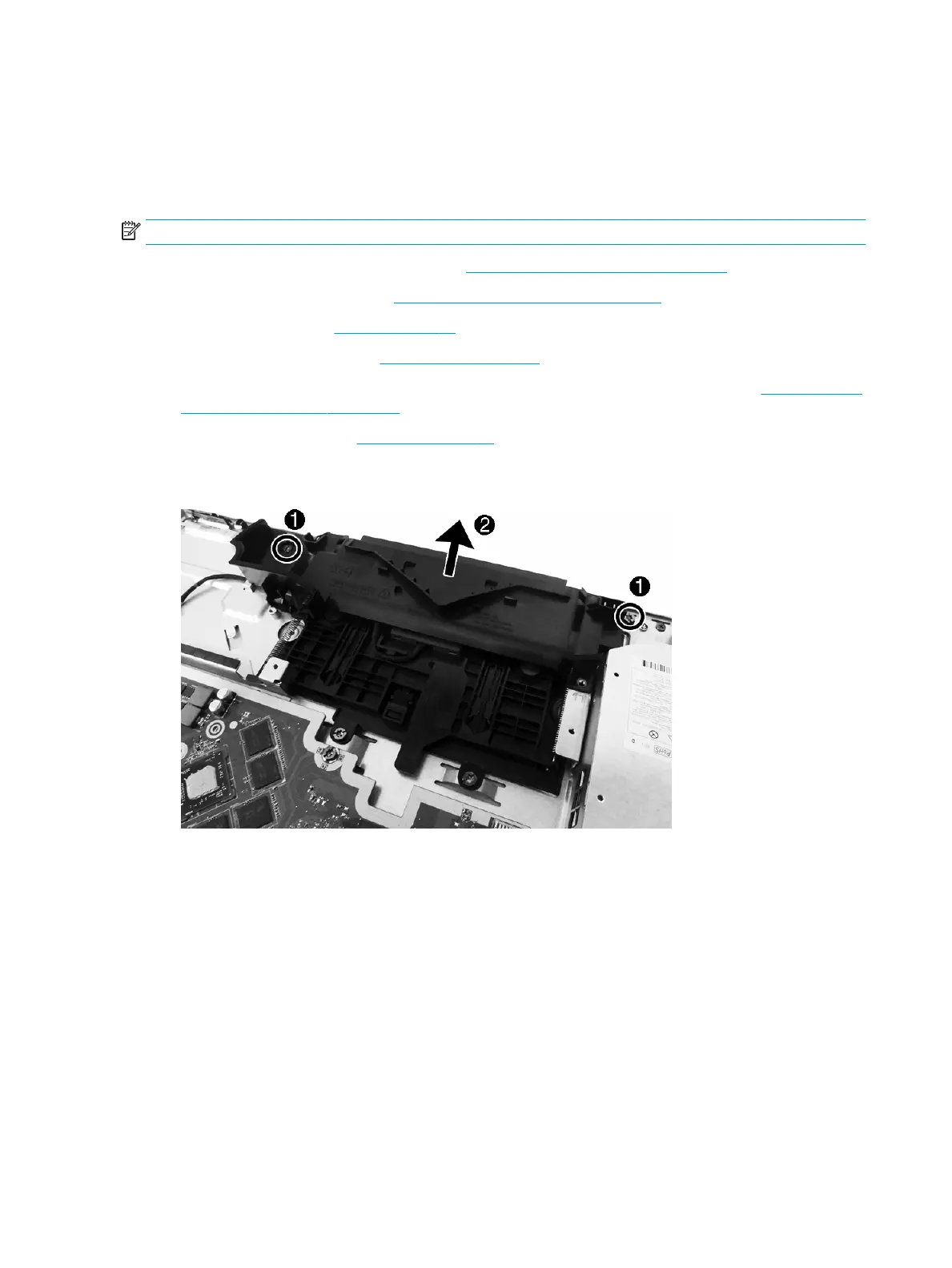

7. To remove the webcam plastic shield, remove the two Torx screws (1), and then remove the webcam
shield from the computer (2).
8. Remove the two Phillips screws (1) that secure the webcam assembly to the computer.
9. Disconnect the webcam cable from the system board (2).
44 Chapter 4 Removal and replacement procedures
