Display panel
Spare parts for both touch and non-touch display are available as a raw panel.
IMPORTANT: Install the new display panel together with all other parts in the replacement kit. Do not reuse
any old parts. Return all old parts to HP for warranty processing.
IMPORTANT: Use the exact cable that shipped with the replacement panel. Failure to use the correct cable
can result in panel failure.
IMPORTANT: You must install the latest touch drivers. Failure to install the latest drivers could result in a
loss of touch functionality. Go to www.hp.com/support to install the latest drivers.
To remove the display panel:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the M.2 solid-state drive from above the right speaker (see Heat sink on page 41).
6. Remove the power button board and ngerprint sensor board (see Power button and ngerprint sensor
boards on page 35).
7. Remove the audio board (see Audio board on page 58).
8. Remove the rear I/O cover (see Rear I/O cover on page 47).

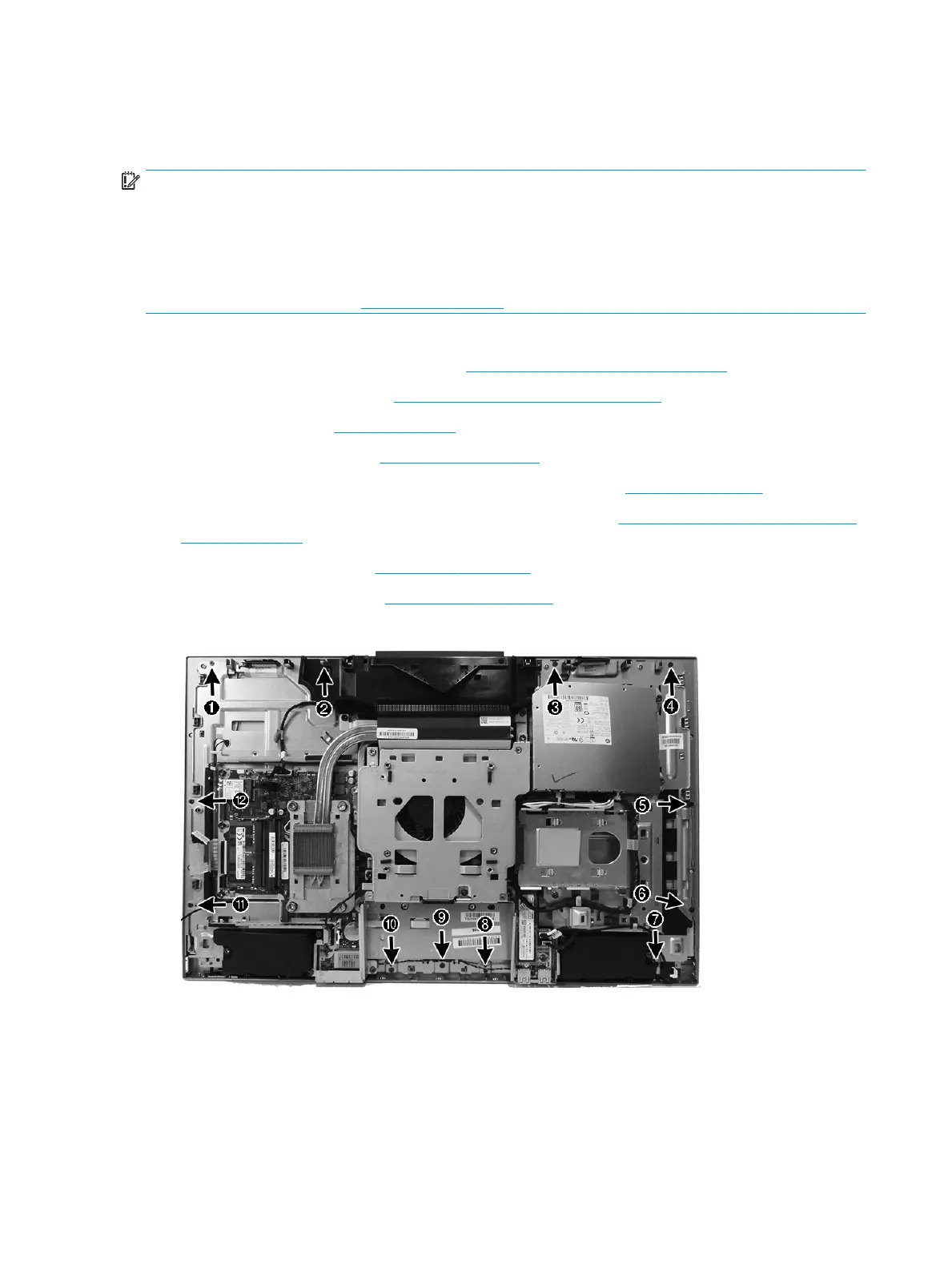

9. Remove the 12 Phillips screws (1)-(12) that secure the main frame to the display panel.
10. Lift the left side of the frame (1).
11. Disconnect the display ribbon cable, and then route the cable through the hole in the frame (2).
60 Chapter 4 Removal and replacement procedures
