HP J9574A Installation And Getting Started Guide

1-6
Introducing the E3800 Switches
Fronts of the Switches

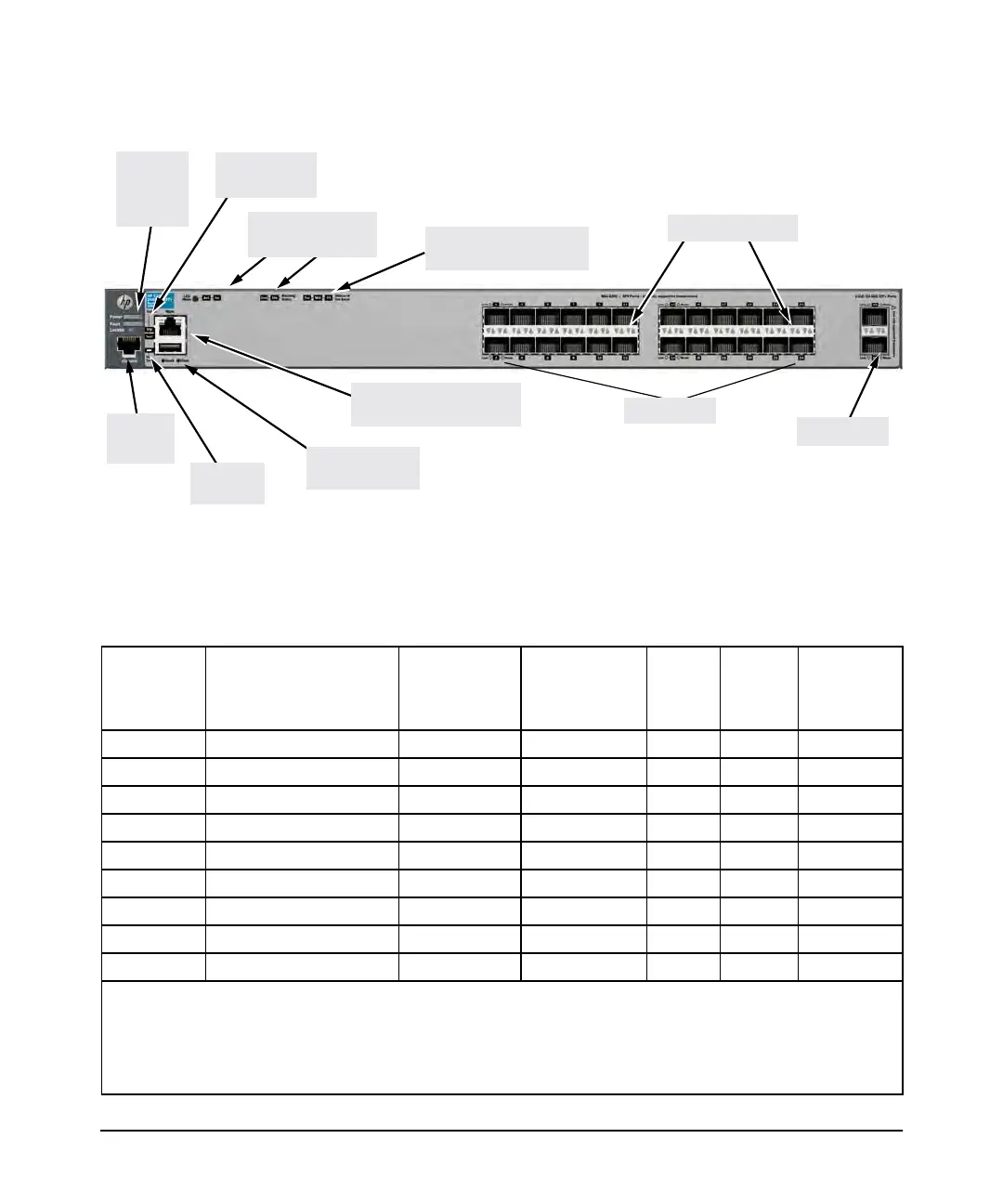

Figure 1-9. Front of the HP E3800-24SFP-2SFP+ Switch
Network Ports
Power,
Fault, and
Locator
LEDs
Tmp and Test
status LEDs
Fan, Mdl, and PS status
LEDs
Console
port
Reset and Clear
buttons
SFP+ ports
Aux port
LED
Switch port LEDs
USB port and Out-of-Band
Management port
Mode and Stacking
status LEDs
SFP ports
Table 1-1. Network Ports
Product
number
Model name
10/100/1000
non-PoE
RJ-45 ports
1
10/100/1000
PoE/PoE+
RJ-45 ports
1
SFP
ports
SFP+
ports
3
XG
1000T/
10GBase-T
RJ-45 ports
1
J9573A E3800-24G-PoE+-2SFP+ 24 2
J9574A E3800-48G-PoE+-4SFP+ 48 4
J9587A E3800-24G-PoE+-2XG 24 2
J9588A E3800-48G-PoE+-4XG 48 4
J9575A E3800-24G-2SFP+ 24 2
J9576A E3800-48G-4SFP+ 48 4
J9585A E3800-24G-2XG 24 2
J9586A E3800-48G-4XG 48 4
J9584A E3800-24SFP-2SFP+ 24
2
2
Notes:
1
All RJ-45 ports support “Auto-MDIX”, which means you can use either straight-through or crossover twisted-pair cables
to connect network devices to the switch.
2
SFP ports support 1G SFP transceivers. J9584A SFP ports also support 100 Mb (100-FX and 100-BX) transceivers.
3
SFP+ ports support 1G SFP and 10G SFP+ transceivers.
