2-21
Installing the Switch
Installation Procedures
10. Connect the Network Cables
Connect the network cables, described under “Cabling Infrastructure” (page
2-5), from the network devices or your patch panels to the fixed RJ-45 ports
on the switch or to any transceivers installed in the switch.
Using the RJ-45 Connectors
To connect:
Push the RJ-45 plug into the RJ-45 jack
until the tab on the plug clicks into
place. When power is on for the switch
and for the connected device, the Link
LED for the port should light to confirm
a powered-on device (for example, an
end node) is at the other end of the
cable.
If the Link LED does not go on when the
network cable is connected to the port,
see “Diagnosing with the LEDs” on
page 5-4, in chapter 5,
“Troubleshooting”.
To disconnect:
Press the small tab on the plug and pull
the plug out of the jack.
Connecting Cables to
Transceivers
If you have any transceivers installed in the switch, the type of network
connections you will need to use depends on the type of transceivers installed.
For transceiver ports, and in general for all the switch ports, when a network
cable from an active network device is connected to the port, the Link LED
for that port should go on. If the Link LED does not go on when the network
cable is connected to the port, see “Diagnosing with the LEDs” on page 5-4
in chapter 5, “Troubleshooting”.

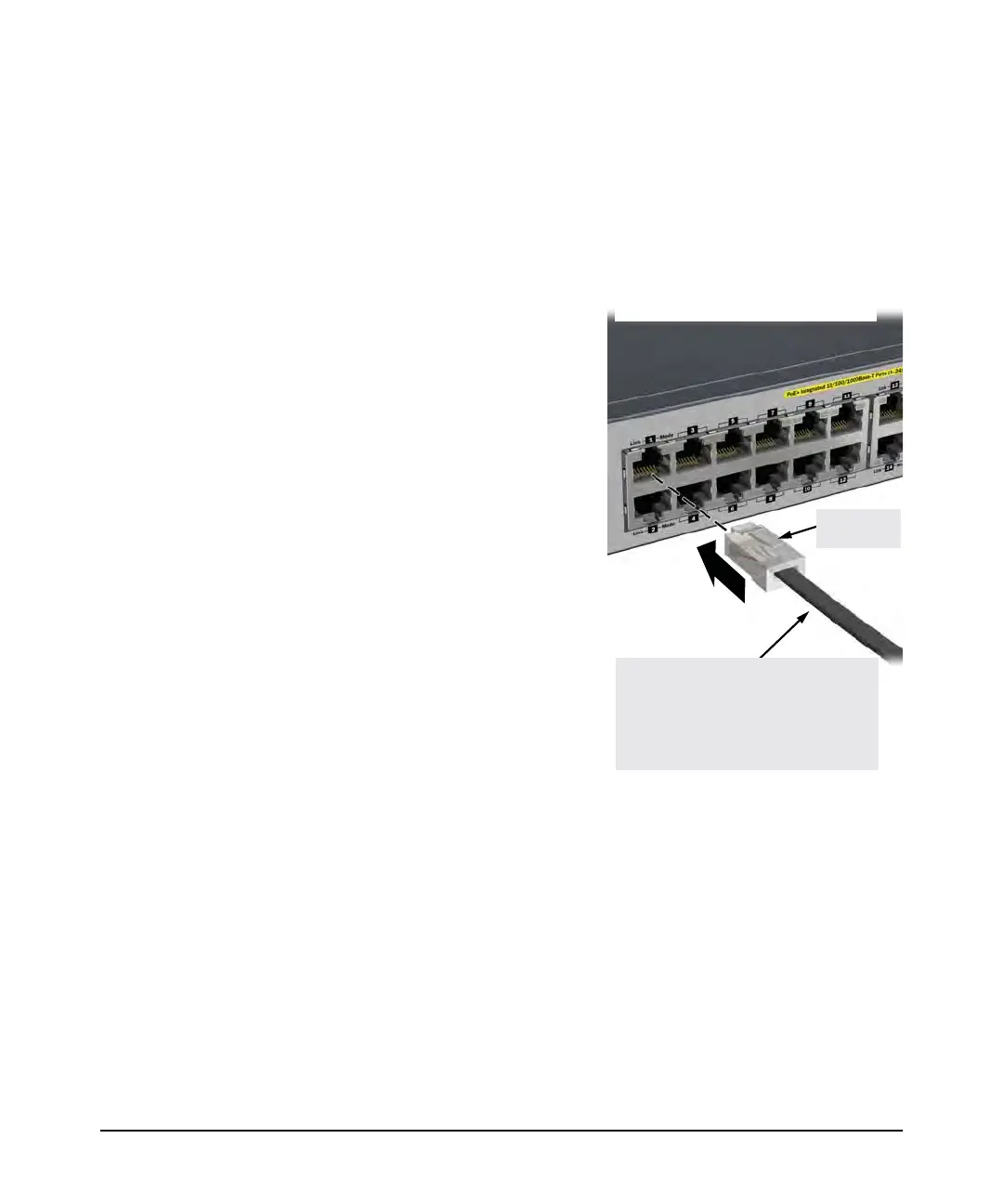

RJ-45
connector
Figure 2-16. Connecting an RJ-45
Unshielded twisted-pair cable:
• Category 3, 4, or 5 for 10 Mbps ports
• Category 5 or better for 100 Mbps ports
• Category 5e or better for 1000 Mbps ports
Maximum distance: 100 meters
