1-16
Introducing the E3800 Switches
HP E3800 Stacking Module
Fan Tray
The E3800 switches have a field-replaceable fan tray. If necessary, the fan can
be replaced while the switch is operating. For more information, see
“Replacing the Fan Tray” on page 4-2.
HP E3800 Stacking Module
The HP E3800 4-port Stacking Module (J9577A) is a component you can add
to an HP E3800 Switch to provide high-speed stacking connections to other
E3800 switches. See “Stacking Information and Topologies” on page 2-23, and
the E3800 Advanced Traffic Management Guide for more information about
stacking configuration and operation.

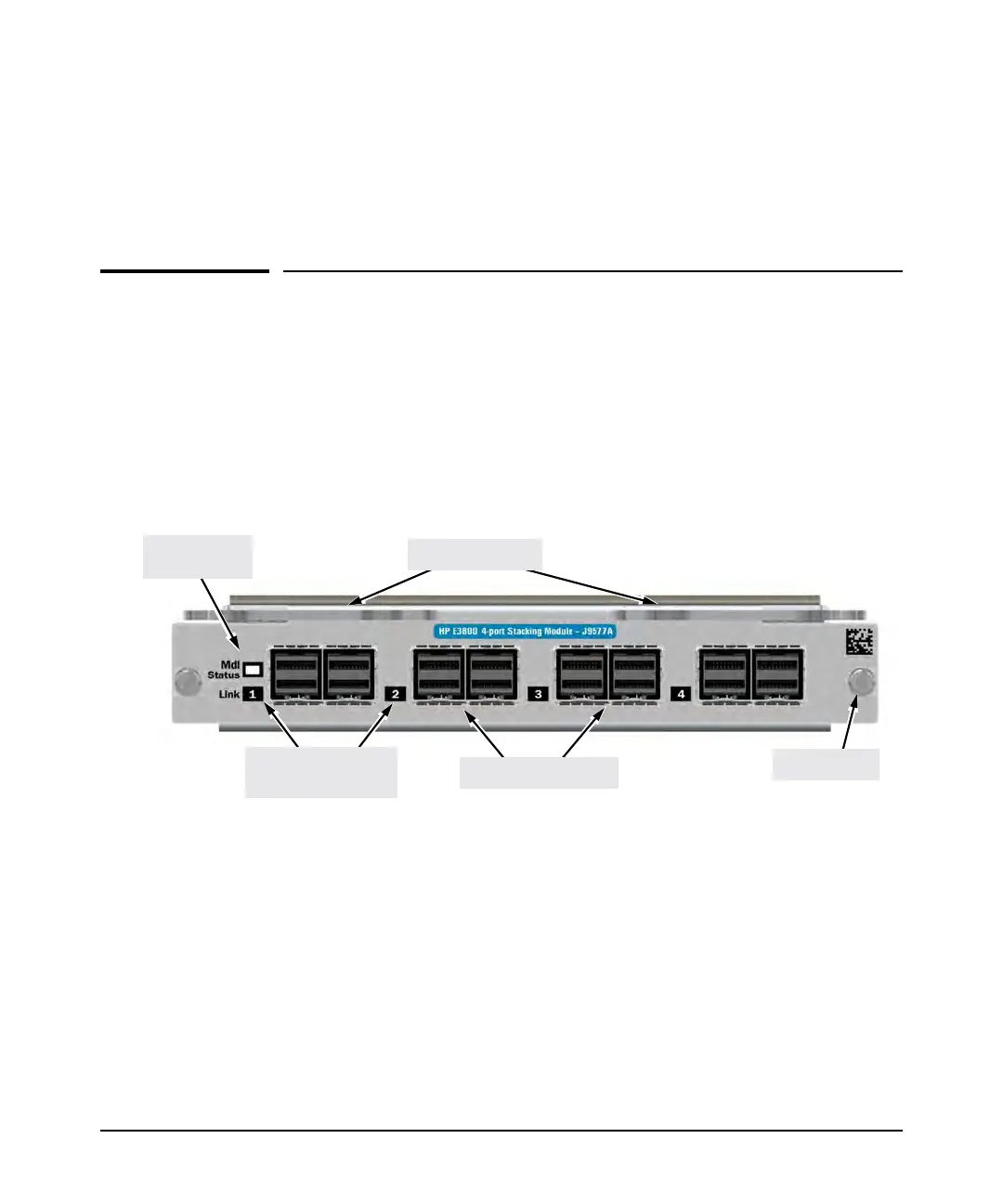

Figure 1-13. Front of E3800 4-Port Stacking Module
The HP E3800 4-Port Stacking Module J9577A has the following features:
■ Four stacking connectors for connecting the E3800 switch to other
E3800s in a stacked topology (chain, ring, or mesh). Any of these available
stacking cables can be used for these connections:
• HP E3800 0.5m Stacking Cable (J9578A)
• HP E3800 1m Stacking Cable (J9665A)
• HP E3800 3m Stacking Cable (J9579A)
■ LEDs, described in Table 1-14.
Module Status
LED
Extractor Handles
Retaining screw
Link LEDs
(one per port)
Stacking Connectors
