Cluster management configuration example

Network requirements

• Three switches form cluster abc, whose management VLAN is VLAN 10. In the cluster, Switch B

serves as the management switch (Administrator), whose network management interface is

VLAN-interface 2; Switch A and Switch C are the member switches (Member).

• All the devices in the cluster use the same FTP server and TFTP server on host 63.172.55.1/24, and

use the same SNMP NMS and log services on host IP address: 69.172.55.4/24.

• Add the device whose MAC address is 000f-e201-0013 to the blacklist.

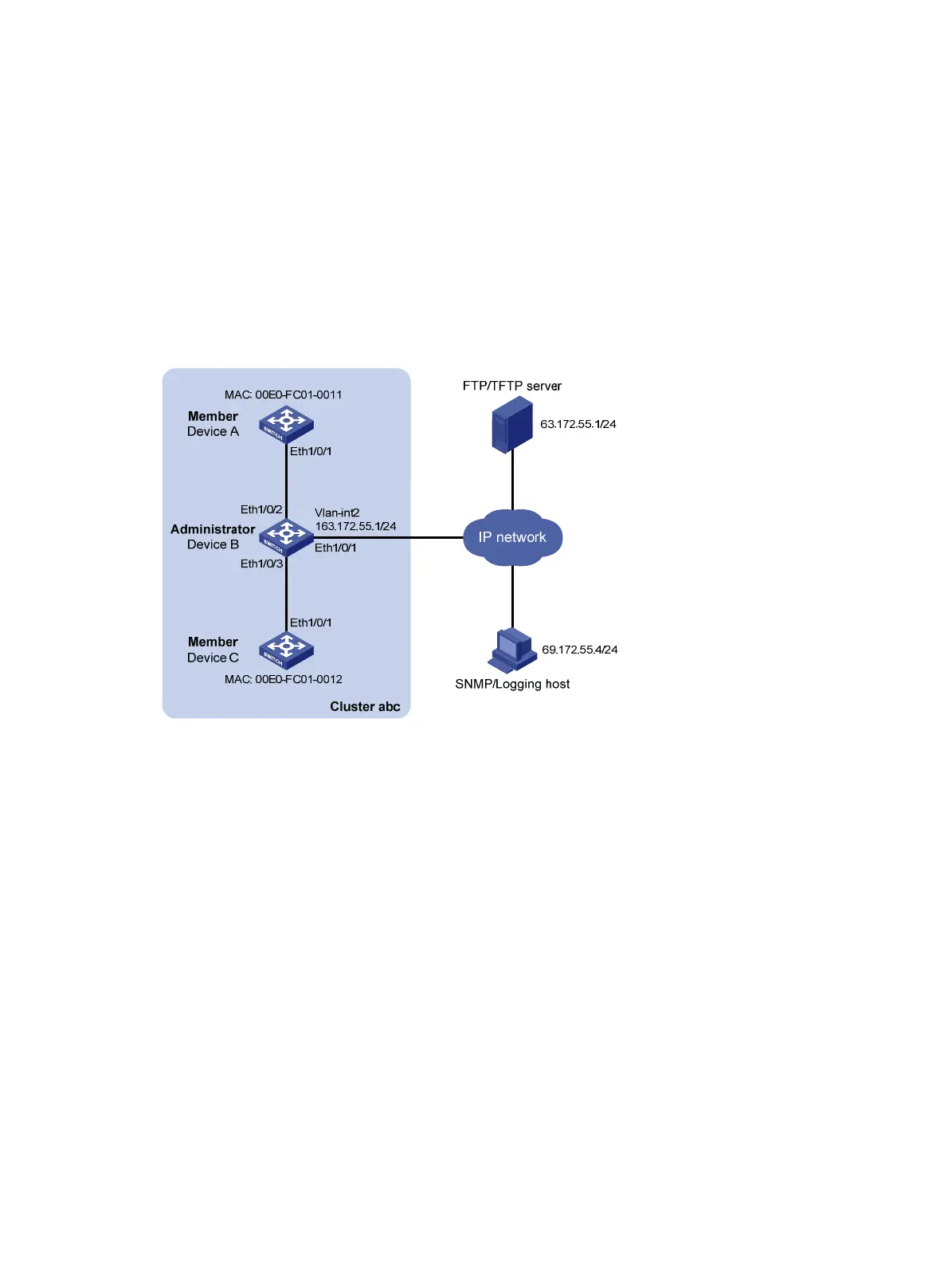

Figure 44 Network diagram for cluster management configuration

Configuration procedure

1. Configure the member switch Switch A

# Enable NDP globally and for port Ethernet 1/0/1.

<SwitchA> system-view

[SwitchA] ndp enable

[SwitchA] interface Ethernet 1/0/1

[SwitchA-Ethernet1/0/1] ndp enable

[SwitchA-Ethernet1/0/1] quit

# Enable NTDP globally and for port Ethernet 1/0/1.

[SwitchA] ntdp enable

[SwitchA] interface Ethernet 1/0/1

[SwitchA-Ethernet1/0/1] ntdp enable

[SwitchA-Ethernet1/0/1] quit

# Enable the cluster function.

[SwitchA] cluster enable

2. Configure the member switch Switch C

As the configurations for the member switches are the same, the configuration procedure for Switch C is
