Hardware options installation 36
Configuring the air baffle for DIMM installation
Before installing DIMMs in the server blade, always configure the air baffle depending on which DIMMs
are being installed.
Air baffle configuration for 8-GB DIMMs or larger

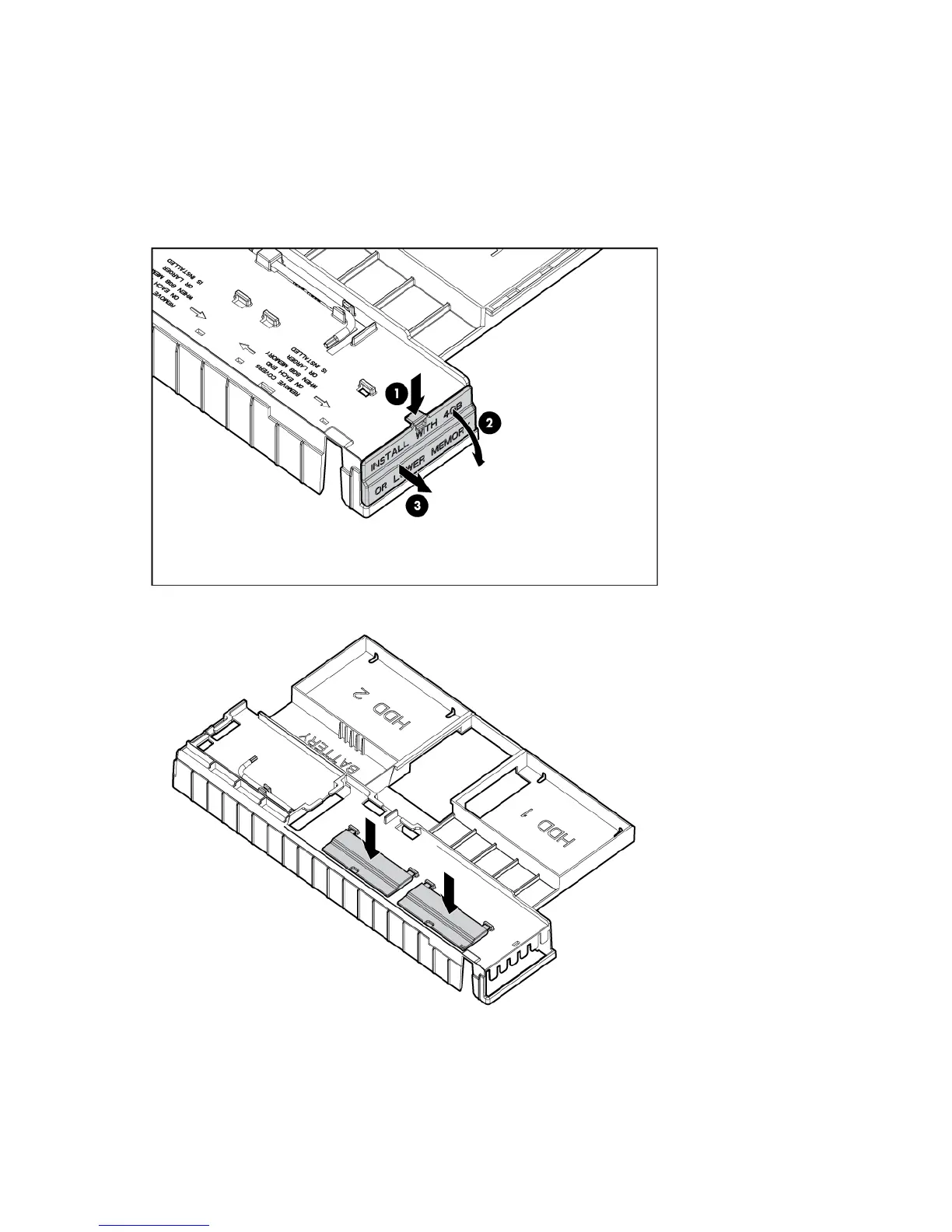

1. Remove the air flow cover from each end of the air baffle.
2. To store the air flow covers, install the two air flow covers on the top of the air baffle.
