Component identification 8

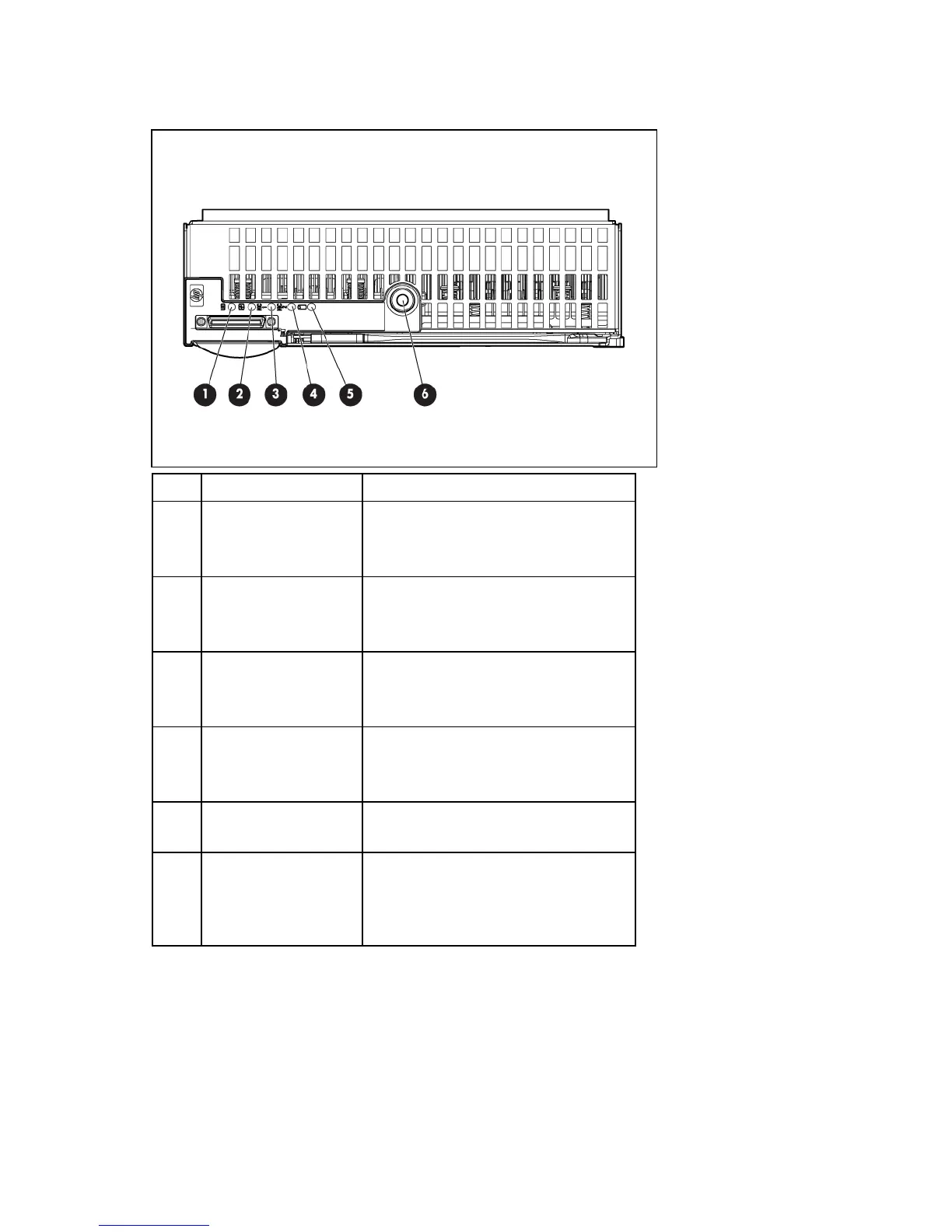

Front panel LEDs and buttons
Item Description Status
1 UID LED Blue = Identified
Blue flashing = Active remote management
Off = No active remote management
2 Health LED Green = Normal
Amber flashing = Degraded condition
Red flashing = Critical condition
3 NIC 1 LED Green = Network linked
Green flashing = Network activity
Off = No link or activity
4 NIC 2 LED Green = Network linked
Green flashing = Network activity
Off = No link or activity
5 Hard drive activity LED Green = Activity
Off = No activity
6 Power On/Standby
button and system
power LED
Green = On
Amber = Standby (auxiliary power
available)
Off = Off
