HP ProLiant BL280c - G6 Server User Manual

Component identification 9

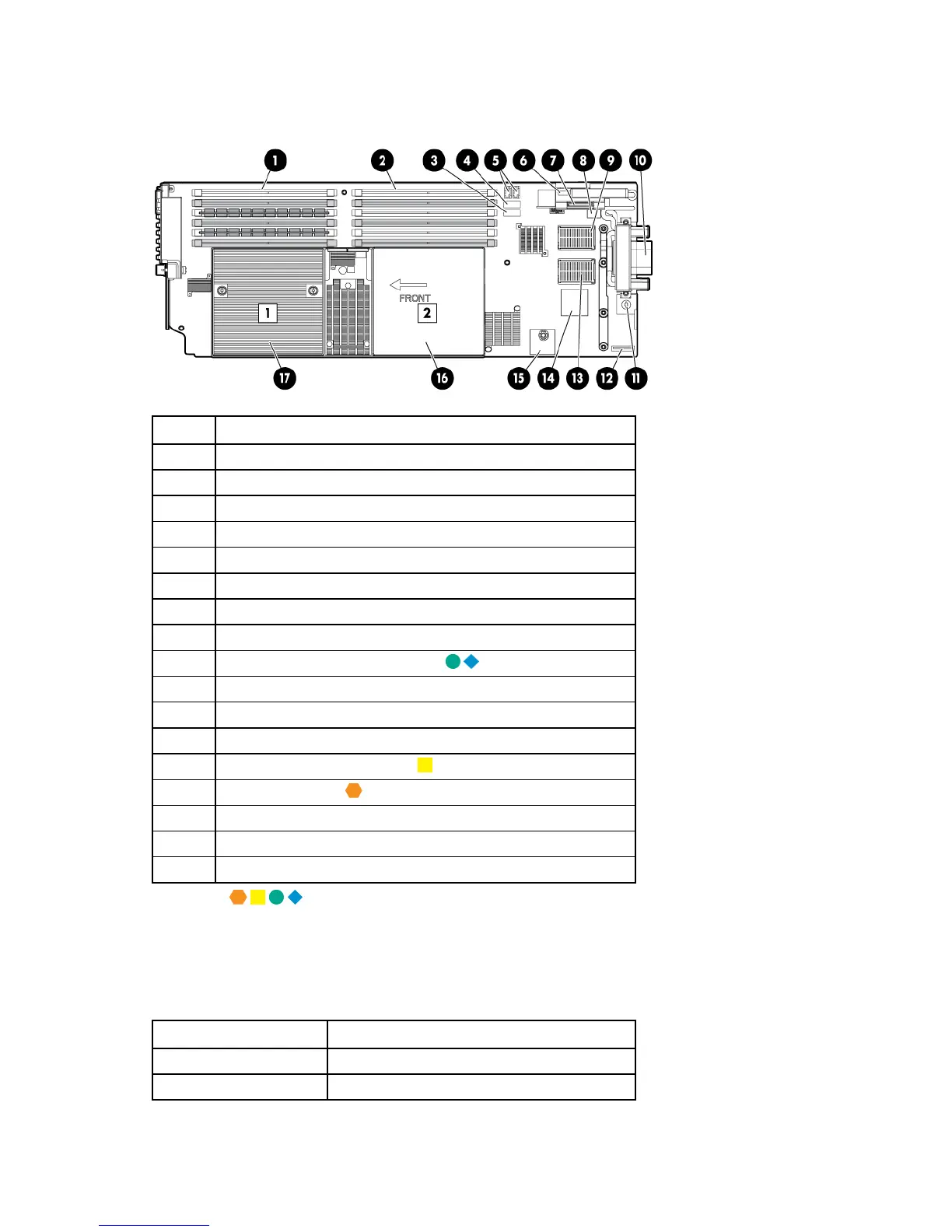

System board components
Item Description
1 Processor 1 DIMMs (6)
2 Processor 2 DIMMs (6)
3 SATA connector 2
4 SATA connector 1
5 Hard drive power connectors (2)
6 USB connector
7 SD card slot
8 System maintenance switch
9 Mezzanine connector 2 (Type I or II)
10 Enclosure connector
11 System board thumbscrew
12 System battery
13 Mezzanine connector 1 (Type I)
14 Embedded NICs (2)
15 TPM connector
16 Processor socket 2 (with blank)
17 Processor socket 1 (populated)
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL280c G6 Server Blade Installation Instructions that ship with the server blade.
Mezzanine connector definitions
A PCIe x8 mezzanine connector supports x16 cards at up to x8 speeds.
Item PCIe
Mezzanine connector 1 x8, Type I mezzanine card only
Mezzanine connector 2 x8, Type 1 or II mezzanine card
