Configuring the Switch Modules using the Menu-driven Interface
NOTE: To delete an entry, toggle the Action field to Delete.
4. Type a port number in the Port field.
5. Type a number between 1 and 127 in the Ingress Bandwidth field.
6. Highlight APPLY.
7. Press the Enter key.
8. Save the changes using Save Changes on the main menu.
9. Reboot the switch module to allow your changes to take effect.
Displaying Current Port Ingress Bandwidth
To view the current port ingress bandwidth settings:
1. Highlight Display Current Port Ingress Bandwidth on the Bandwidth
Configuration menu.

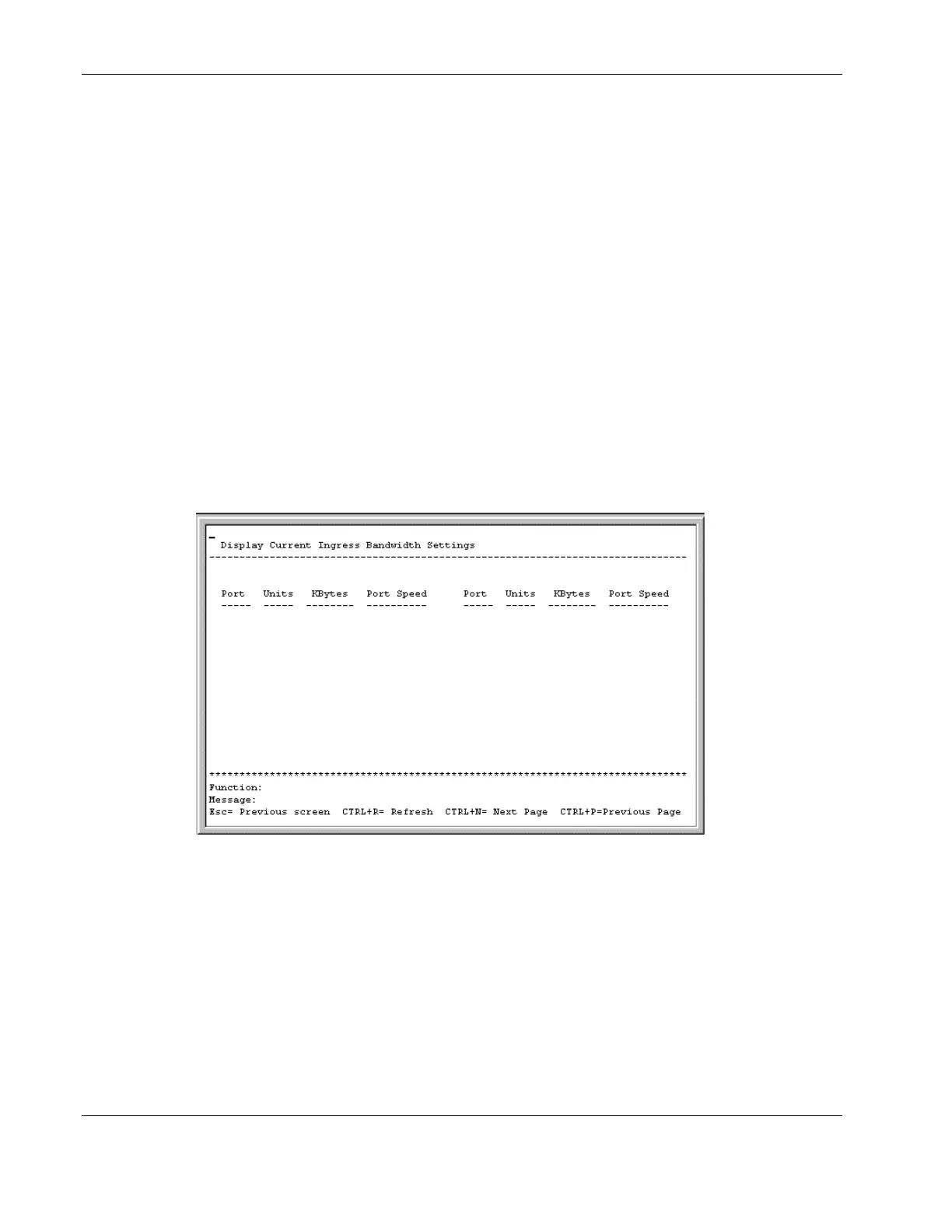

2. Press the Enter key. The following screen is displayed.
This read-only screen displays current ingress bandwidth information.
2-16 HP ProLiant BL e-Class C-GbE Interconnect Switch Menu-driven Interface Reference Guide
HP CONFIDENTIAL Codename: DeLorean Part Number: 322858-001 Last Saved On: 2/4/03 11:56 AM
