Configuring the Switch Modules using the Menu-driven Interface
Configuring Restart Port Egress Bandwidth
To configure port egress bandwidth:
1. Highlight Configure Restart Port Egress Bandwidth on the Bandwidth
Configuration screen.

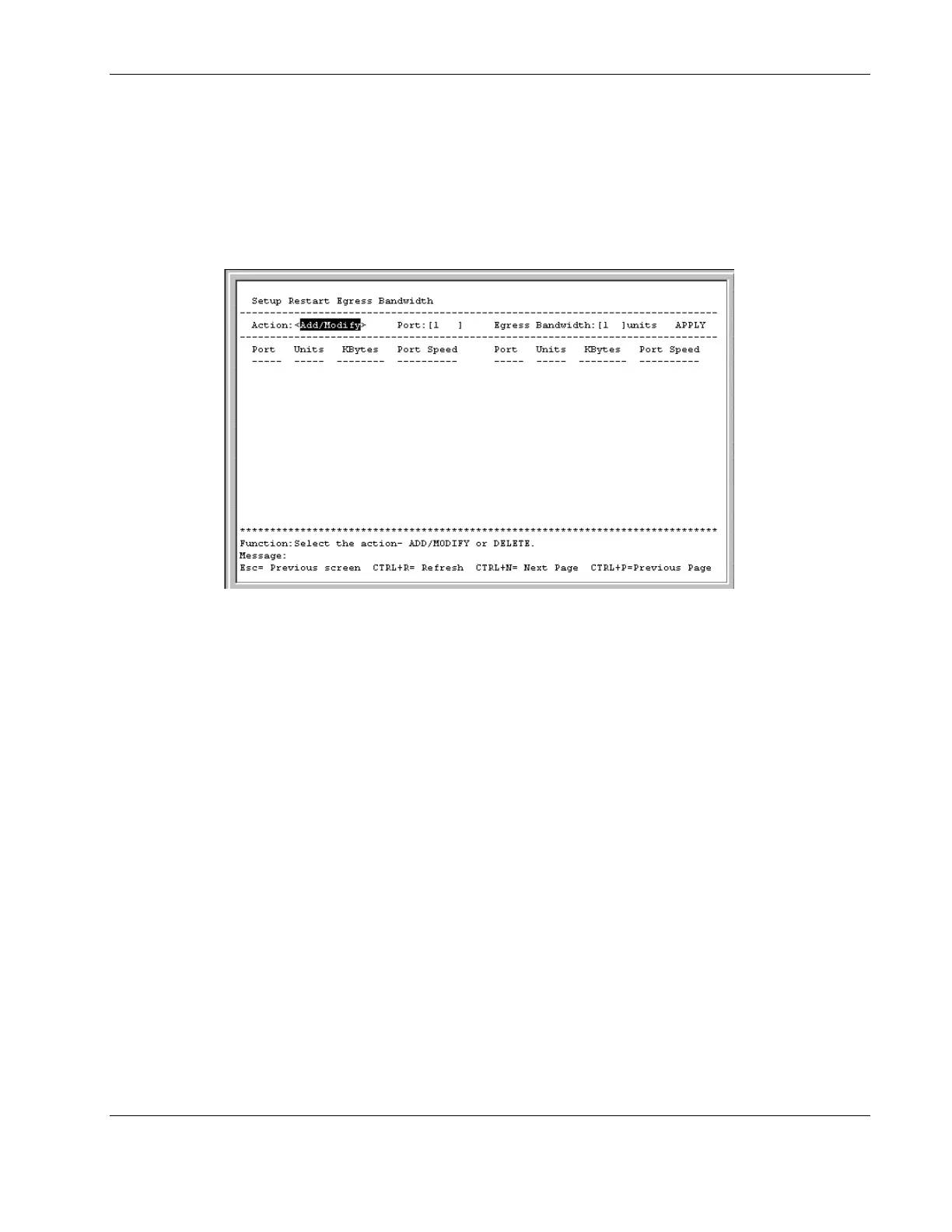

2. Press the Enter key. The following screen is displayed.
3. Toggle to Add/Modify in the Action field.
NOTE: To delete an entry, toggle the Action field to Delete.
4. Type a destination port in the Port field.
5. Type a number between 1 and 127 in the Egress Bandwidth field.
6. Highlight APPLY.
7. Press the Enter key.
8. Save the changes using Save Changes on the main menu.
9. Reboot the switch module to allow your changes take effect.
HP ProLiant BL e-Class C-GbE Interconnect Switch Menu-driven Interface Reference Guide 2-17
HP CONFIDENTIAL Codename: DeLorean Part Number: 322858-001 Last Saved On: 2/4/03 11:56 AM
