Configuring the Switch Modules using the Menu-driven Interface

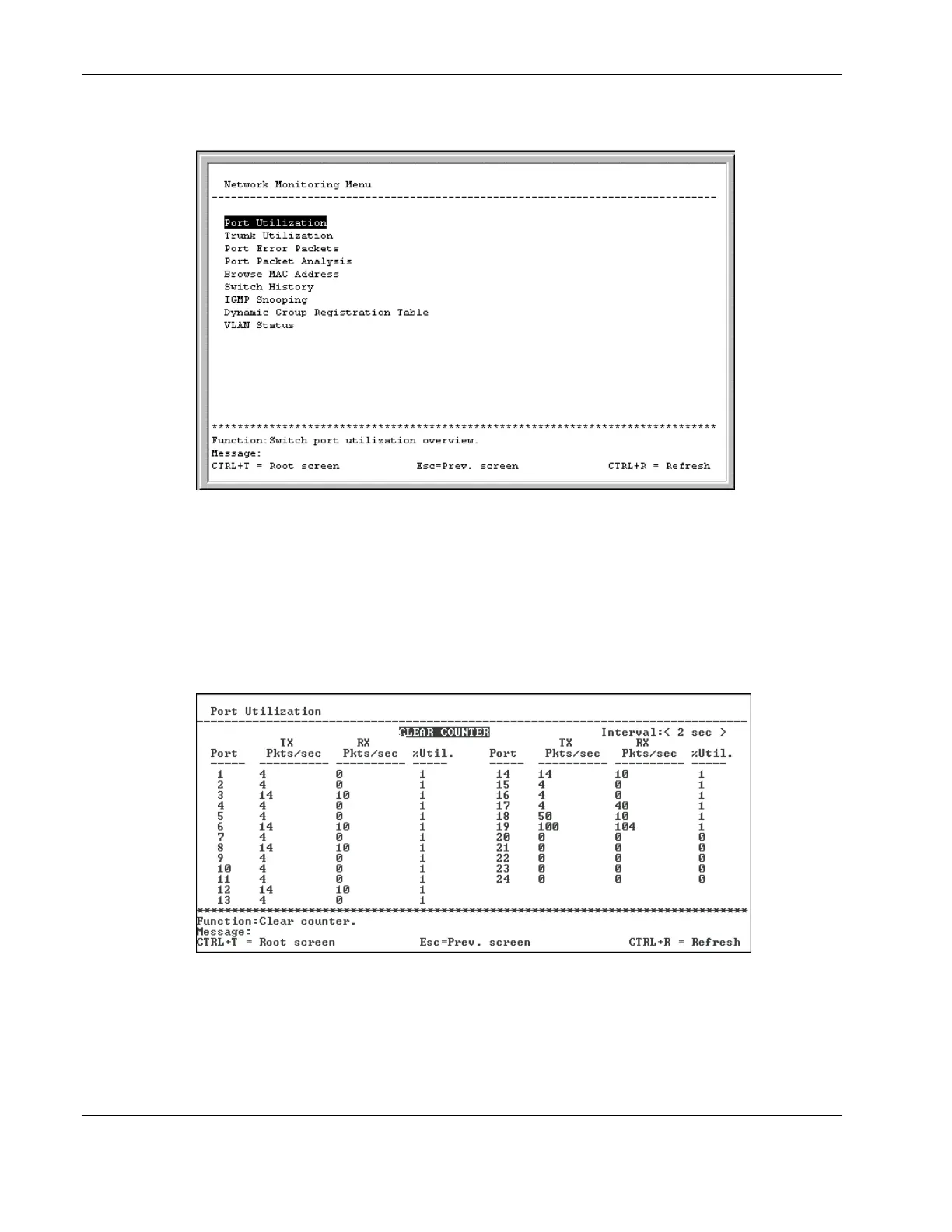

2. Press the Enter key. The following screen is displayed.
The Network Monitoring Menu lists the monitoring options for the switch module.
Monitoring Port Utilization
To view the port utilization of all the ports on the switch module:
1. Highlight Port Utilization on the Network Monitoring Menu.
2. Press the Enter key. The following screen is displayed.
The Port Utilization screen shows the number of packets transmitted and received per
second and calculates the percentage of the total available bandwidth being used on the
port (displayed under %Util.).
3. In the Interval field, toggle to select the frequency at which the information on the screen
is refreshed. The default is two seconds.
2-48 HP ProLiant BL e-Class C-GbE Interconnect Switch Menu-driven Interface Reference Guide
HP CONFIDENTIAL Codename: DeLorean Part Number: 322858-001 Last Saved On: 2/4/03 11:56 AM
