Configuring the Switch Modules using the Menu-driven Interface
— Ex. Coll.—Counts the number of frames that experienced 16 collisions during
transmission and were aborted.
— Single Coll.—Counts the number frames that experienced exactly one collision
during transmission.
— Coll.—Counts the number of collisions that occurred during the transmission of a
frame.
3. Toggle the Port field to the number of the port to be viewed.
4. Toggle the Interval field from 2 seconds to 1 minute, or select Suspend to set the
interval at which the error statistics are updated.
5. Highlight CLEAR COUNTER.
6. Press the Enter key to reset the counters.
Monitoring Port Packet Analysis
To view an analysis of the size of packets received or transmitted by a port:
1. Highlight Port Packet Analysis on the Network Monitoring Menu.

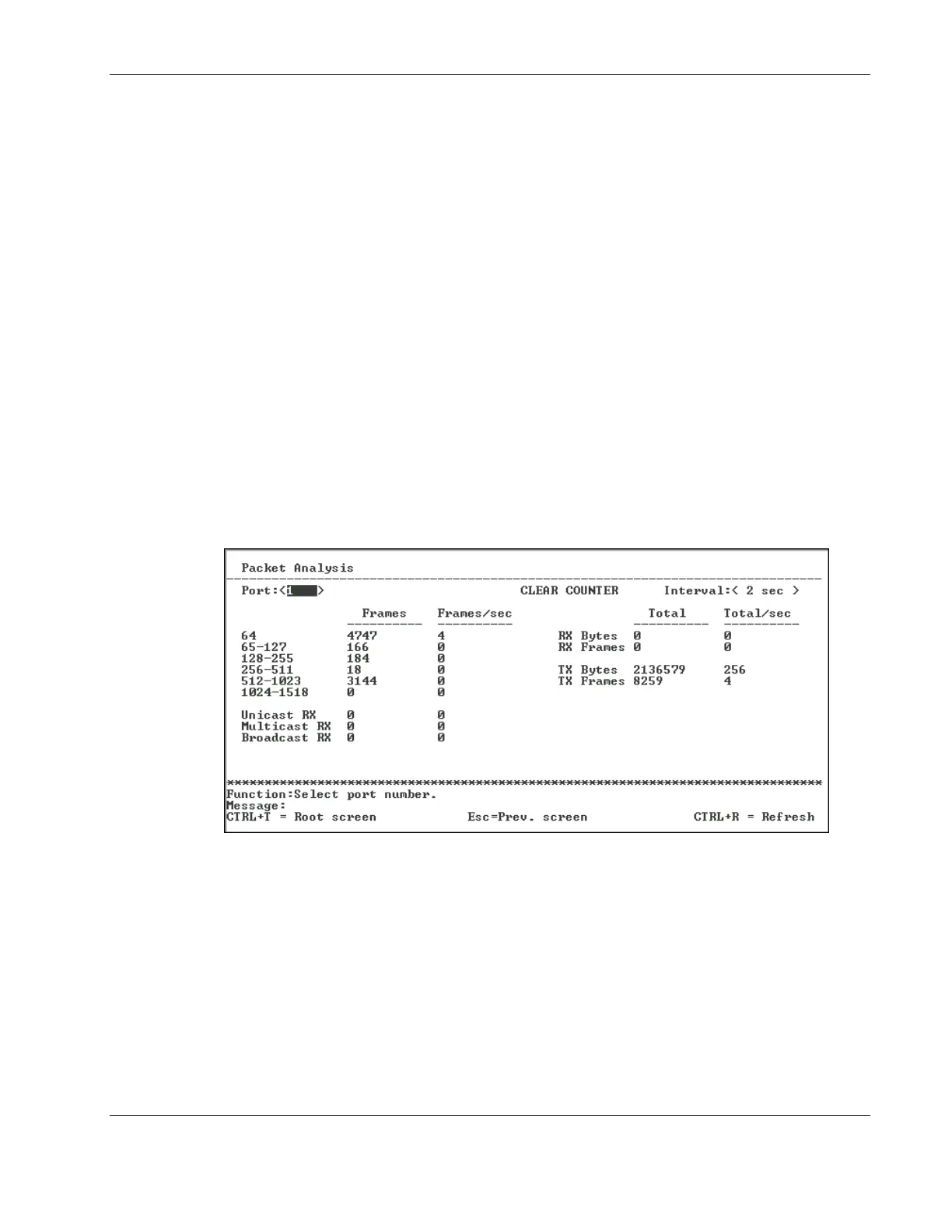

2. Press the Enter key. The following screen is displayed.
The Packet Analysis screen displays the size of packets received or transmitted by the
selected port and statistics on the number of unicast, multicast, and broadcast packets
received.
3. Toggle the Port field to the number of the port to be viewed.
HP ProLiant BL e-Class C-GbE Interconnect Switch Menu-driven Interface Reference Guide 2-51
