Configuring the Switch Modules using the Menu-driven Interface
Configuring Priority MAC Addresses
To configure priority MAC address for a specified VLAN on the switch module:
1. Highlight Configure Priority MAC Addresses on the Configuration menu.

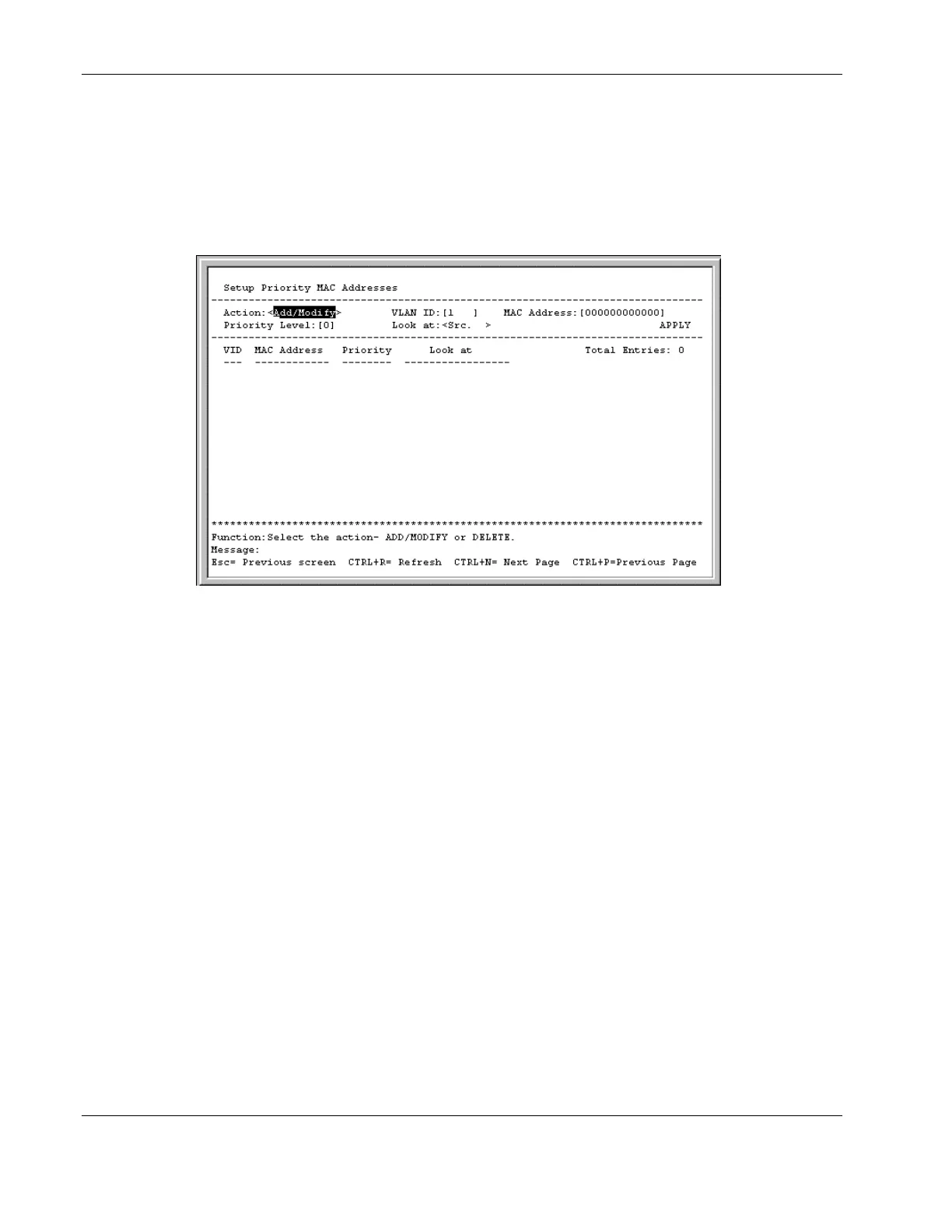

2. Press the Enter key. The following screen is displayed.
3. Toggle to Add/Modify in the Action field.
4. Type the VLAN ID in the VLAN ID field.
5. Type the MAC address for which priority on the switch module is to be established in the
MAC Address field.
6. Type the priority level for the MAC address in the Priority Level field. The range is
from 0 to 7, with 0 being the highest priority.
7. Select the state under which the above priority will be active in the Look at field. The
options are:
— Dst.Addr—Packets with the selected MAC address as their destination will be given
the selected priority.
— Src.Addr—Packets with the selected MAC address as their source will be given the
selected priority.
— Either—All packets with the selected MAC address will be given the selected
priority.
8. Highlight APPLY.
9. Press the Enter key.
IMPORTANT: To save the configuration settings permanently, you must enter them into non-
volatile RAM (NVRAM) using the Save Changes option on the main menu. Refer to the “Saving
Changes” section earlier in this chapter.
