Removal and replacement procedures 29
NOTE: The T-15 Torx screwdriver is shipped with the server and can be located on the rear
panel ("Rear panel components" on page 73).

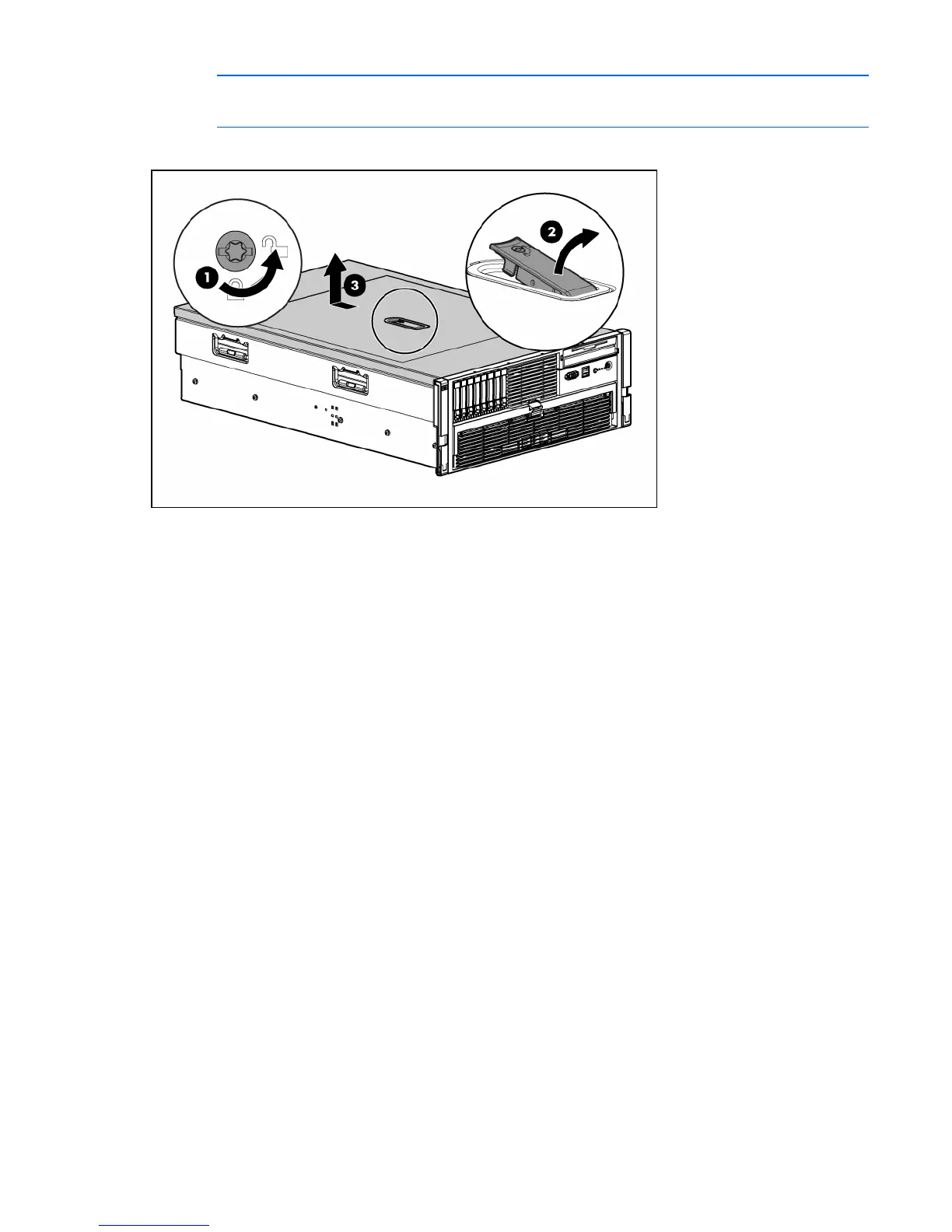

3. Lift up on the hood latch, and remove the access panel.
4. After installing hardware options, replace the access panel. Be sure that the panel is securely locked
into place before powering up the server.
Removing the processor memory module
The processors and memory are stored in a module at the front of the server. Access to the processor
memory module is provided through the front panel, eliminating the need to extend the server from the
rack to install new or replace existing processors or upgrade the memory.
To remove the processor memory module:
1. Power down the server (on page 26).
2. Release the latches on the lever.
