Component identification 76
Item Description
14 Media board
15 Fan 1 connector
16 Fan 2 connector
17 BBWC battery pack
18 Fan 3 connector
19 Fan 4 connector

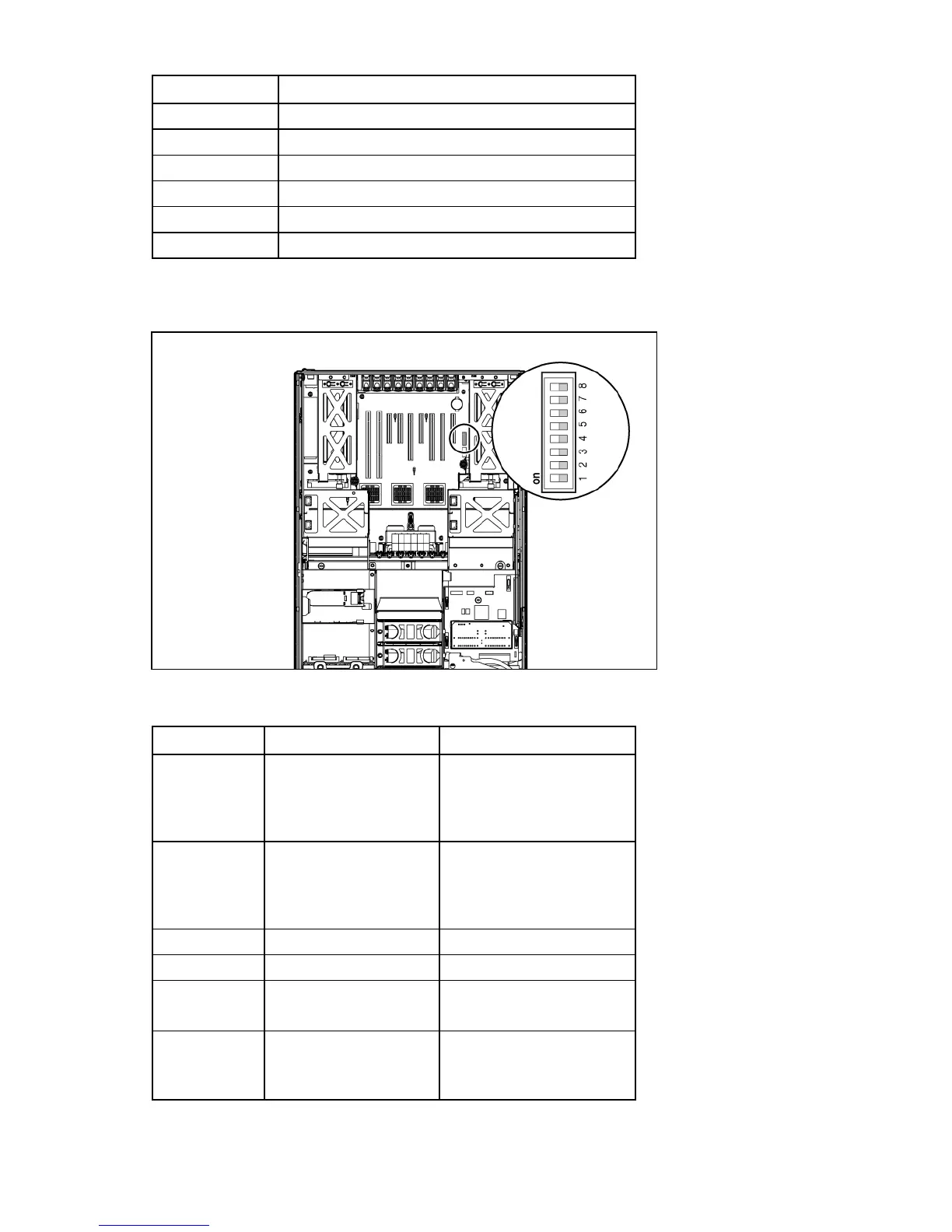

System maintenance switch (SW3)
The system maintenance switch (SW3) is an eight-position switch that is used for system configuration. The
default position for all eight positions is Off (closed).
Position Description Function
1 iLO 2 security Off = iLO 2 security is
enabled.
On = iLO 2 security is
disabled.
2 Configuration lock Off = System configuration
can be changed.
On = System configuration is
locked.
3 Reserved Reserved
4 Reserved Reserved
5 Password protection
override
Off = Password is enabled.
On = Password is disabled.
6 Configuration validation Off = Switch has no function.
On = Setting clears CMOS
and NVRAM.
