Component identification 78
Boot device selector switch (SW1)

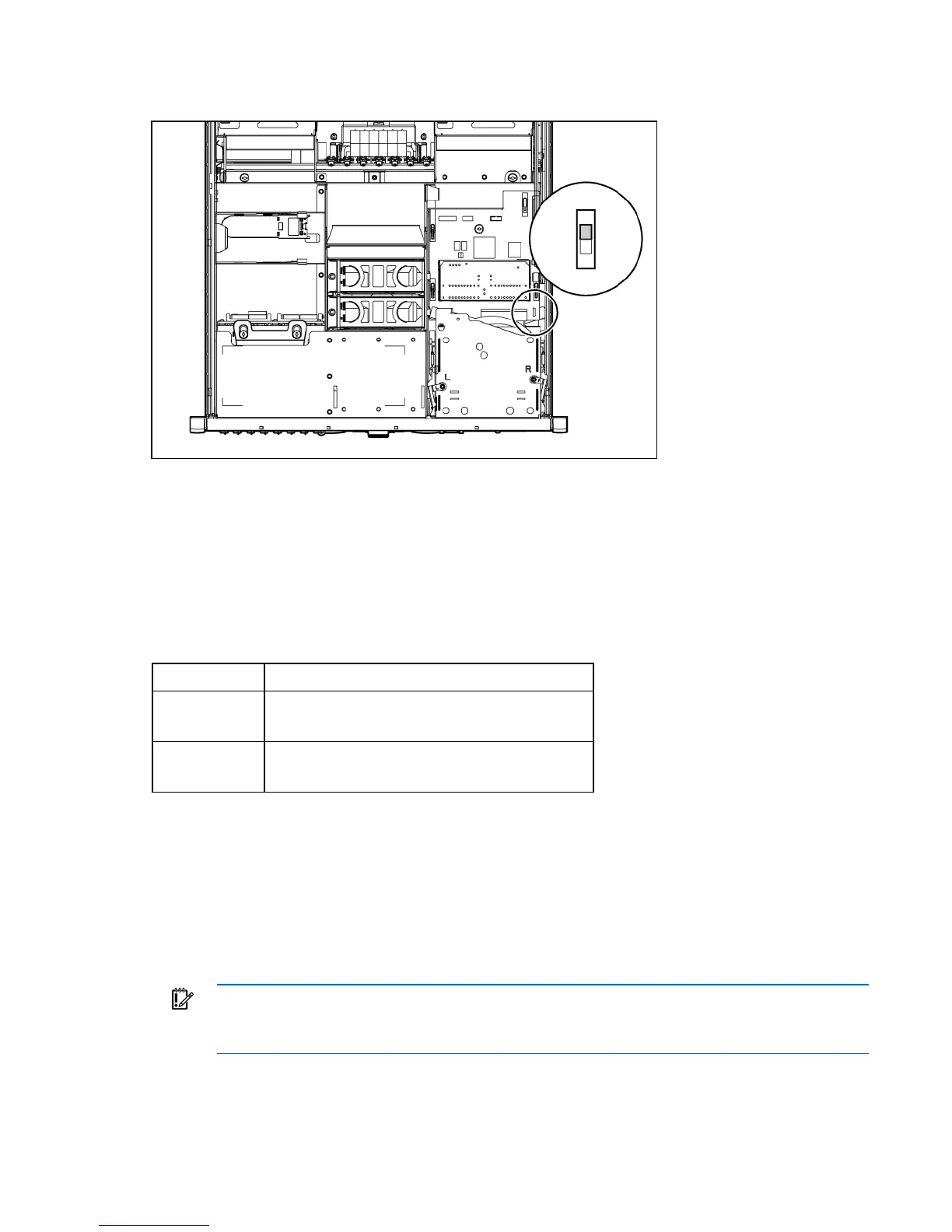

The boot device selector switch setting determines the device access order of the media drives in the
server. The default setting for the boot device selector switch is FLP TOP.
When the boot device selector switch is set to FLP TOP, the optical drive in the bottom bay is designated
as the primary optical drive. The diskette drive in the top bay is bootable. The server cannot boot from a
diskette drive in the bottom bay when the boot device selector switch is set to FLP TOP.
When the boot device selector switch is set to FLP BOT, the optical drive in the top bay is designated as
the primary optical drive. The diskette drive in the bottom bay is bootable. The server cannot boot from a
diskette drive in the top bay when the boot device selector switch is set to FLP BOT.
Switch setting Description
FLP TOP (default) The diskette drive in top bay is bootable.
The primary optical drive in bottom bay is bootable.
FLP BOT The primary optical drive in top bay is bootable.
The diskette drive in bottom bay is bootable.
Systems Insight Display LEDs
The front panel health LEDs indicate only the current hardware status. In some situations, HP SIM might
report server status differently than the health LEDs because the software tracks more system attributes. The
System Insight Display LEDs identify components experiencing an error, event, or failure.
The Systems Insight Display LEDs are located on the media board. In normal operations, all of the LEDs
are off unless one of the components fails.
IMPORTANT: When removing the access panel to view the Systems Insight Display LEDs (on
page 78), leave the server powered on. The Systems Insight Display LEDs are cleared when
the server is powered off.
