Component identification
74

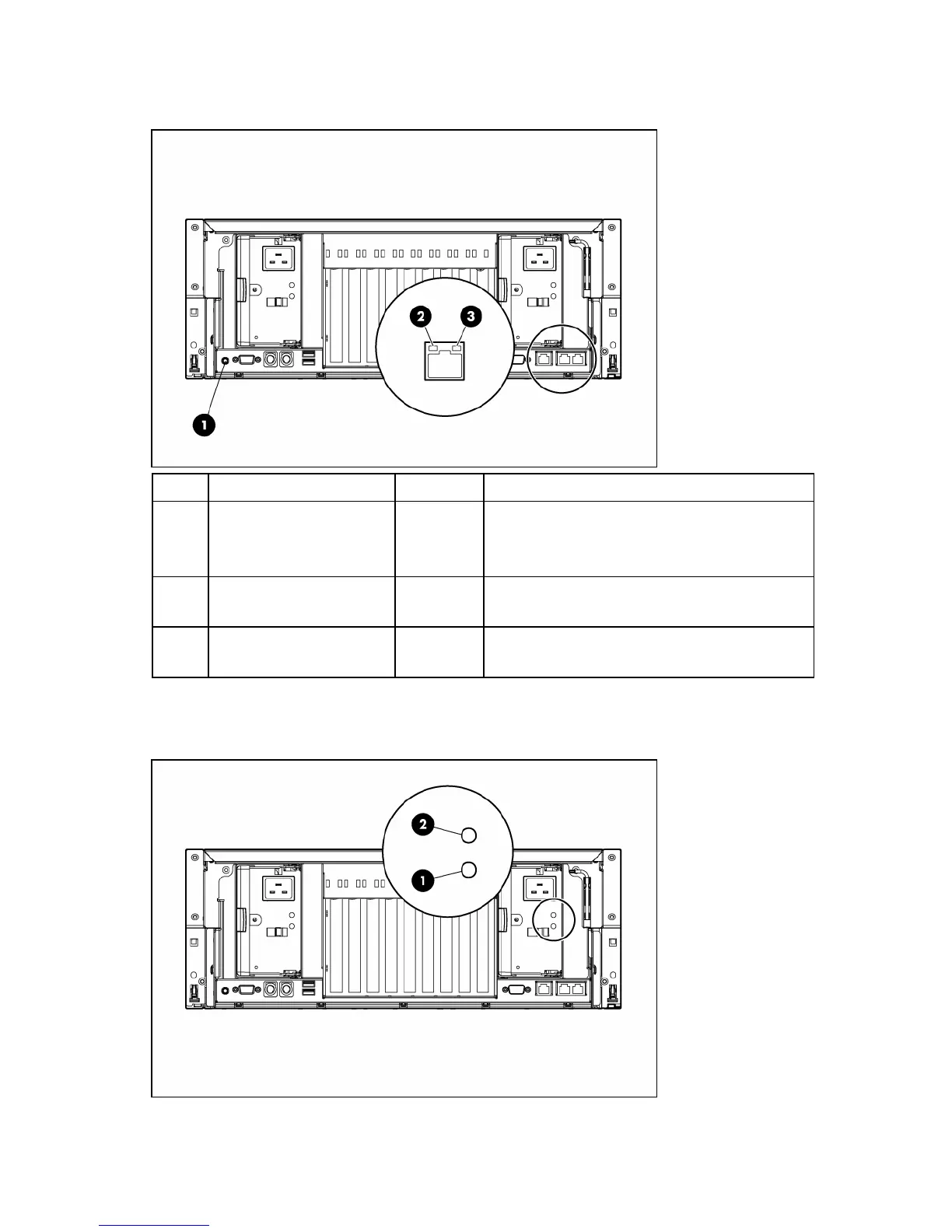

Rear panel LEDs and buttons
Item Description
LED
color Status
1
UID LED
Blue
On = Activated
Flashing = Server remotely managed
Off = Deactivated
2
Activity LED
Green
On or flashing = Network activity
Off = No network activity
3
Link LED
Green
On = Linked to network
Off = Not linked to network
Hot-plug power supply LEDs
73
75
