Cabling 84
Item Description
3
Power button cable assembly

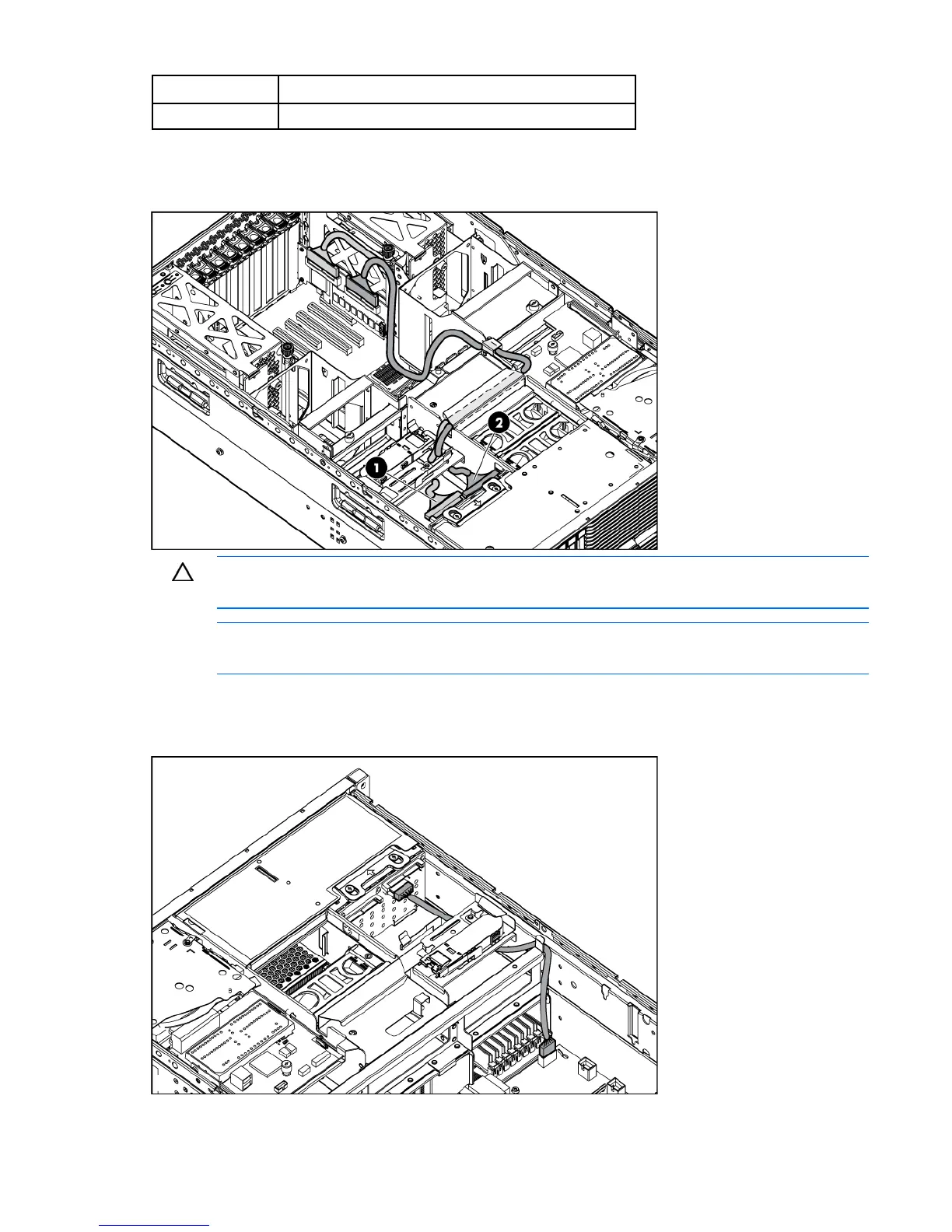

SAS and SATA hard drive data cable routing
CAUTION:
When routing cables, always be sure th
at the cables are not in a position where
they can be pinched or crimped.
NOTE:
The SAS power cable is not shown.
SAS and SATA power cable routing
83
85
Table of Contents
Default Chapter
3
Table of Contents
3
Customer Self Repair
6
Parts Only Warranty Service
6
Illustrated Parts Catalog
17
Mechanical Components
17
System Components
20
Removal and Replacement Procedures
25
Required Tools
25
Safety Considerations
25
Preventing Electrostatic Discharge
25
Server Warnings and Cautions
25
Preparation Procedures
26
Power down the Server
26
Extending the Server from the Rack
27
Remove the Server from the Rack
28
Removing the Access Panel
28
Removing the Processor Memory Module
29
Power Button Assembly Bezel
31
USB Cable Assembly
32
Video Cable Assembly
33
Power Button Cable Assembly
34
Fan Cage Bezel
34
Processor Memory Module Bezel
35
Processors
36
Ppm
41
Dimms
42
Processor Memory Module
43
SAS or SATA Hard Drives
44
Diskette, DVD, CD-RW Drive, or Blank
44
Power Supply Blank
45
Power Supply
45
Hot-Plug Fans
46
Expansion Slot Covers
47
Expansion Boards
48
SAS Backplane
49
Pass-Through Board
50
Media Board
50
Battery-Backed Write Cache Procedures
51
Removing the Cache Module
51
BBWC Battery Pack
53
Recovering Data from the Battery-Backed Write Cache
54
System Cage
55
Power Supply Backplane
56
System Board
57
Re-Entering the Server Serial Number and Product ID
58
System Battery
58
Diagnostic Tools
60
Smartstart Software
60
Smartstart Scripting Toolkit
60
HP Instant Support Enterprise Edition
60
Option ROM Configuration for Arrays
61
HP ROM-Based Setup Utility
61
Rompaq Utility
61
System Online ROM Flash Component Utility
62
Integrated Management Log
62
Integrated Lights-Out 2 Technology
62
Automatic Server Recovery
63
HP Systems Insight Manager
63
HP Insight Diagnostics
63
USB Support
64
Troubleshooting the System Using Port 85 Codes
64
Processor-Related Port 85 Codes
64
Memory-Related Port 85 Codes
65
Expansion Board-Related Port 85 Codes
66
Miscellaneous Port 85 Codes
66
Component Identification
68
Front Panel Components
68
Front Panel Leds and Buttons
69
Processor Memory Module Components
70
DIMM Slot Identification
71
SAS and SATA Hard Drive Leds
71
SAS and SATA Hard Drive LED Combinations
72
Rear Panel Components
73
Rear Panel Leds and Buttons
74
Hot-Plug Power Supply Leds
74
Internal Components
75
System Maintenance Switch (SW3)
76
Media Board Components
77
Boot Device Selector Switch (SW1)
78
Systems Insight Display Leds
78
Battery Pack Leds
80
Fan Locations
81
Hot-Plug Fan Leds
82
Cabling
83
BBWC Cabling
83
Front Panel Cable Components
83
SAS and SATA Hard Drive Data Cable Routing
84
SAS and SATA Power Cable Routing
84
Specifications
86
Environmental Specifications
86
Server Specifications
86
Technical Support
88
Before You Contact HP
88
HP Contact Information
88
Acronyms and Abbreviations
89
Index
92
Other manuals for HP ProLiant DL585 Generation 2
Specification
45 pages
4
Based on 1 rating
