HP ProLiant DL585 Maintenance And Service Guide

Removal and Replacement Procedures
Table 2-2: Processor Memory Board Memory Banks
Slot Bank
1 - 2 Bank 1
3 - 4 Bank 2
5 - 6 Bank 3
7 - 8 Bank 4
Memory Population Guidelines for Processor Memory Boards with 4 DIMM Slots
Supported configurations:
•
•
•
DIMMs on different processor memory boards can be of different sizes.
DIMMs on the same processor memory board must be of the same size and have the
same part number.
DIMMs must be installed on a processor memory board in pairs and in bank order.
NOTE: PC3200 DIMMs are only supported by processor memory boards with four DIMM slots.

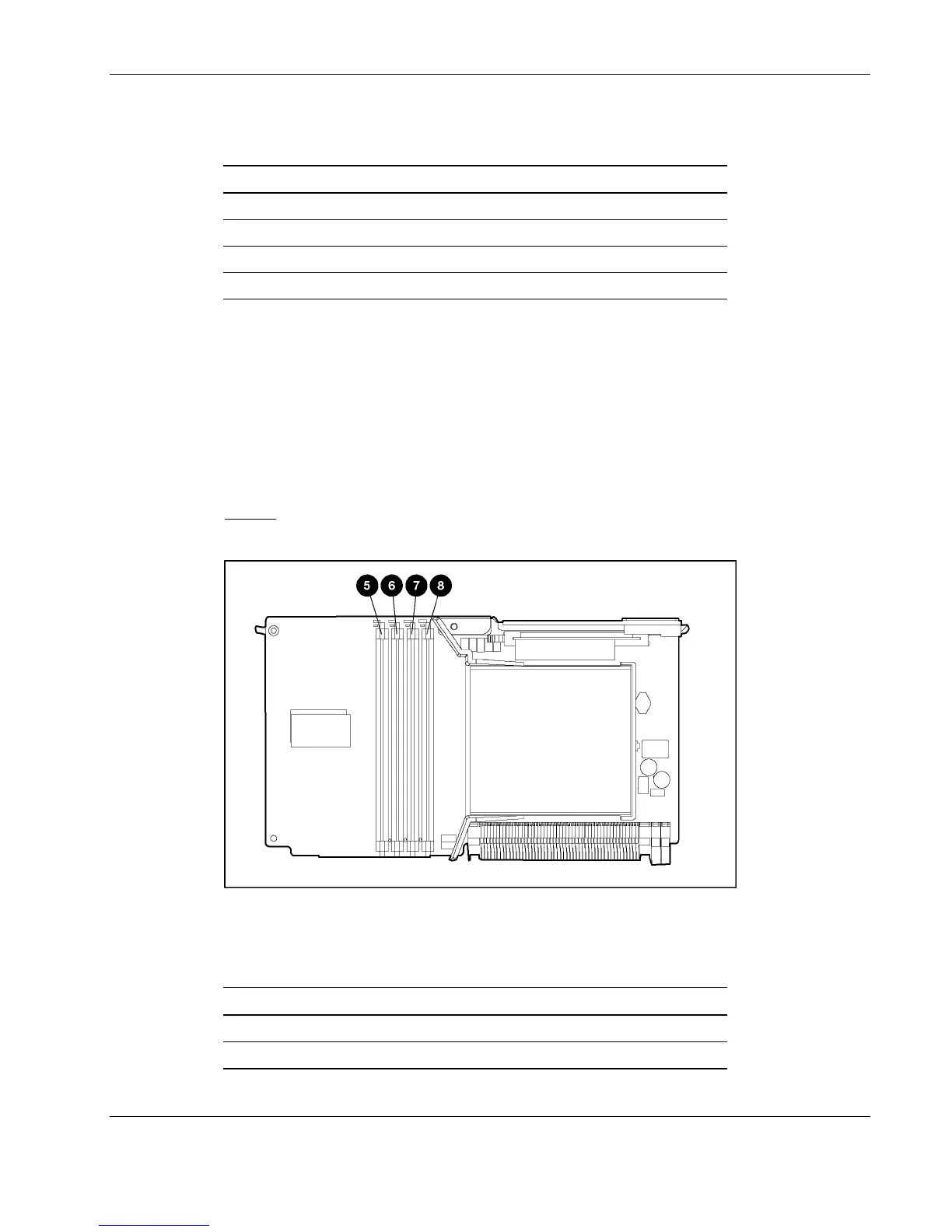

Figure 2-14: Four DIMM slots
Table 2-3: Processor Memory Board Memory Banks with four
DIMM slots
Slot Bank
5 - 6 Bank 1
7 - 8 Bank 2
HP ProLiant DL585 Server Maintenance and Service Guide 2-17
