HP ProLiant DL585 Maintenance And Service Guide

Removal and Replacement Procedures
17. Use the Torx T-15 tool or screwdriver to remove the eight screws that secure the power
supply connectors to the chassis bottom (1).
18. Remove the cords from the connectors (2).
19. Remove the connectors from the server (3).

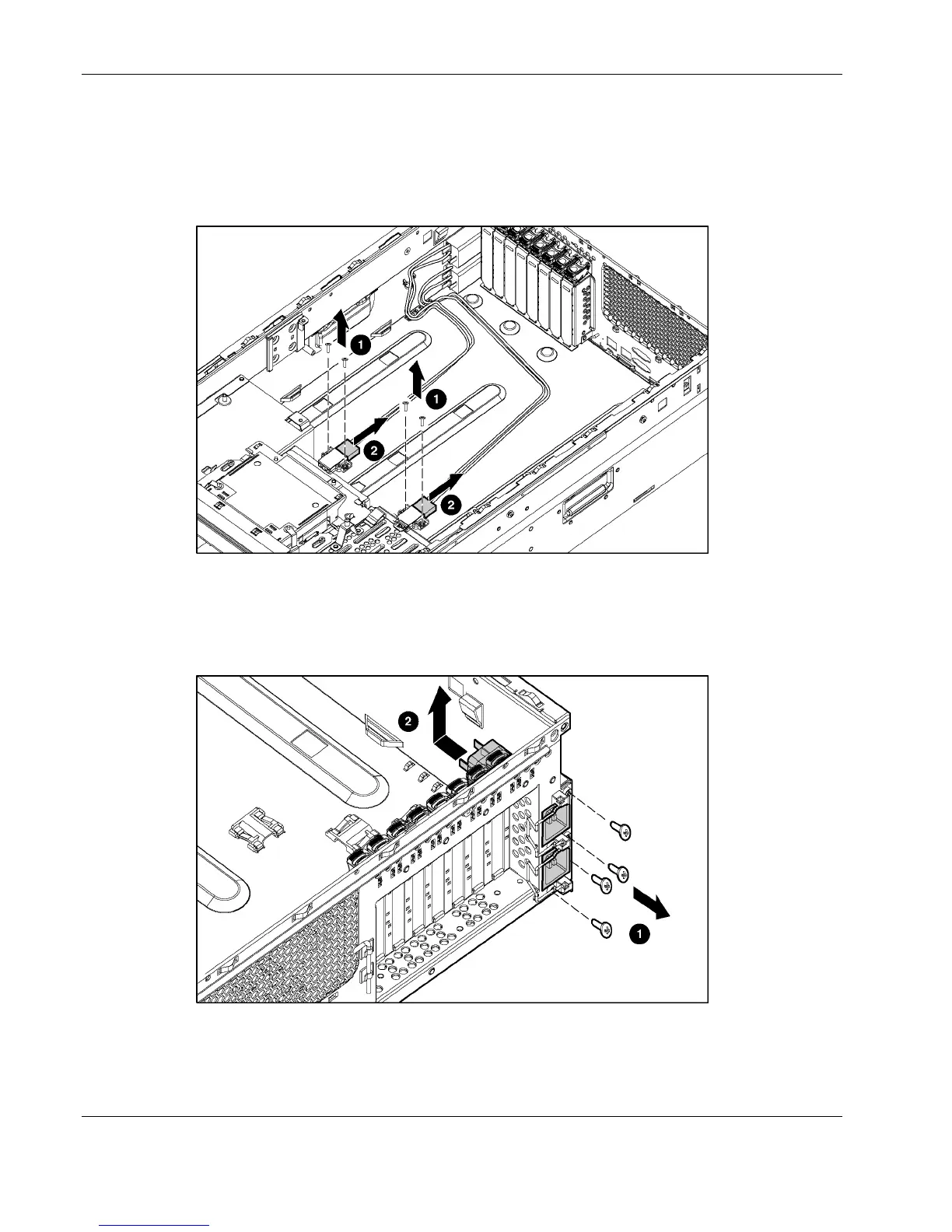

Figure 2-41: Removing the power supply connectors
20. Use the Torx T-15 tool or a screwdriver to remove the four screws that secure the AC
filter cable assembly to the rear chassis wall (1).
21. Slide the assembly into the chassis, and then lift the assembly out of the chassis (2).
Figure 2-42: Removing the AC filters
Reverse the steps to replace the AC filter cable assembly.
2-48 HP ProLiant DL585 Server Maintenance and Service Guide
