HP ProLiant DL585 Maintenance And Service Guide

Server Component Identification
QuickFind Diagnostic Display

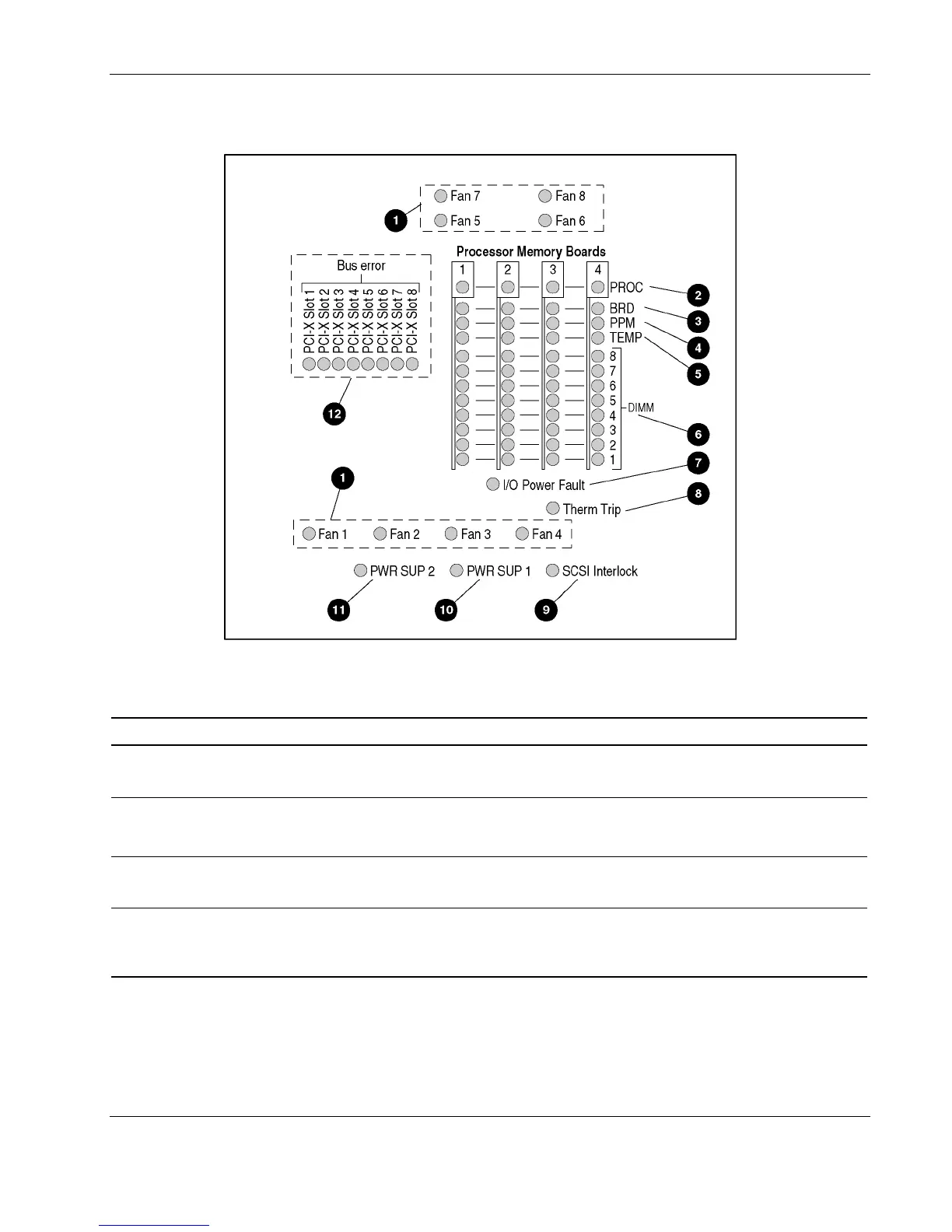

Figure 4-6: QuickFind Diagnostic Display LEDs
Table 4-6: QuickFind Diagnostic Display LEDs
Item Description Status Action
1 Fan Off = normal
On = attention required
Be sure fan is installed and seated properly.
If fan is installed and seated properly, replace the fan.
2 Processor Off = normal
On = attention required
Processor pre-failure notification. Inspect the IML logs
and/or POST messages. Processor may need to be
replaced.
3 Processor memory
board
Off = normal
On = attention required
Processor memory board power failure. If problem
persists, replace processor/memory board.
4 Processor power
module
Off = normal
On = attention required
PPM power failure. If problem persists, replace PPM.
If the PPM and the BRD LEDs are both on, there is a
configuration error.
continued
HP ProLiant DL585 Server Maintenance and Service Guide 4-7
