HP ProLiant DL585 Maintenance And Service Guide

Removal and Replacement Procedures
SCSI Cables
To remove the SCSI cables:
1. Power down the server. Refer to “Powering Down the Server” ea rlier in this chapter.
2. Extend the server from the rack. Refer to “Extending the Server from the Rack” earlier in
this chapter.
3. Remove the access panel. Refer to “R emoving the Access Panel” earlier in this chapter.
4. Disconnect the SCSI cables from the SCSI backplane.
5. Disconnect the SCSI cables from the PCI-X expansion boards.

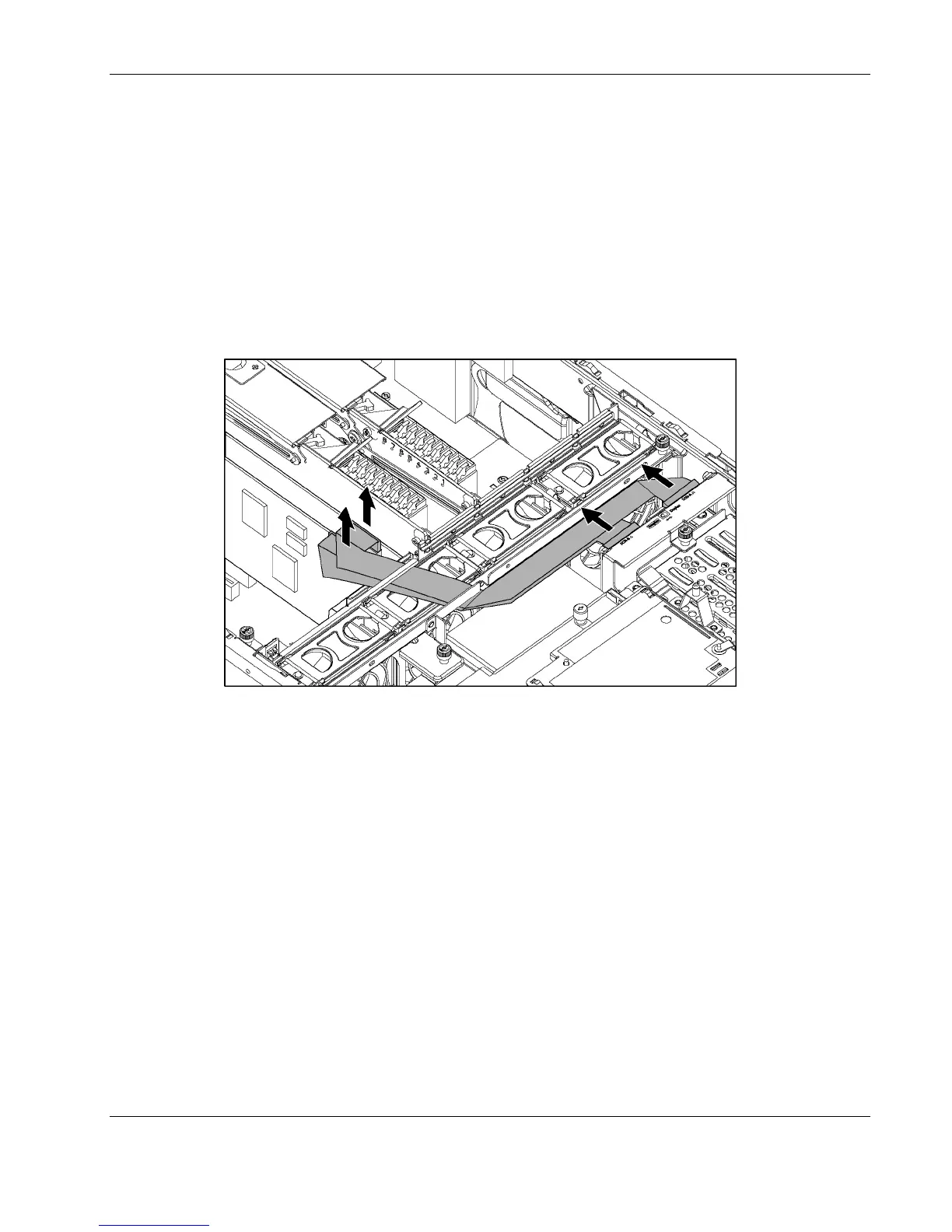

Figure 2-28: Disconnecting the SCSI cables
Reverse the steps to replace or install the SCSI cables.
HP ProLiant DL585 Server Maintenance and Service Guide 2-33
