Traffic Isolation Zoning over FC routers with Virtual Fabrics
12
Traffic Isolation Zoning over FC routers with Virtual Fabrics

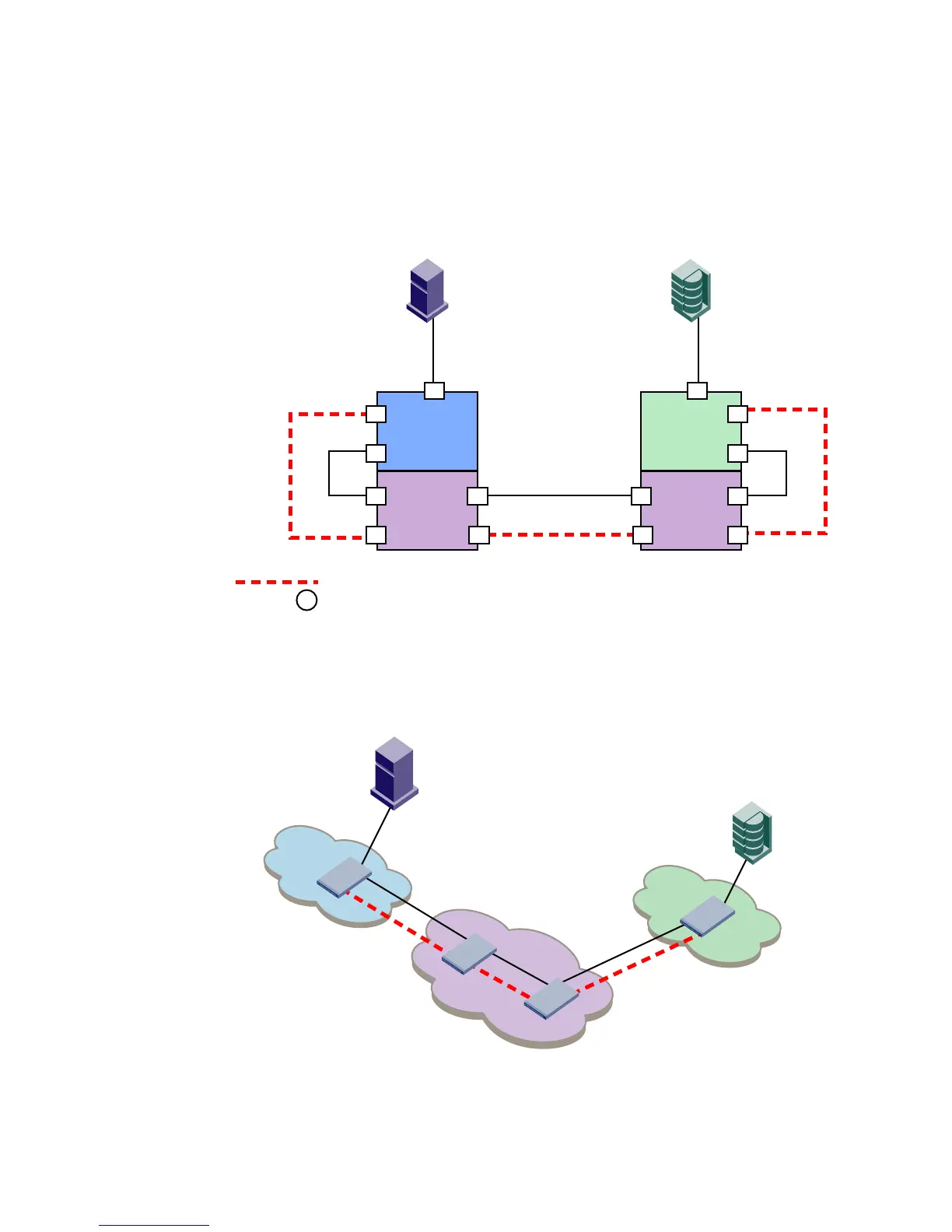

This section describes how you can set up TI zones over FC routers in logical fabrics. Figure 45
shows two physical chassis configured into logical switches. The initiator in FID 1 communicates
with the target in FID 3 over the EX_Ports in the base switches.
FIGURE 45 Example configuration for TI zones over FC routers in logical fabrics
Figure 46 shows a logical representation of the configuration in Figure 45. This SAN is similar to
that shown in Figure 38 on page 353 and you would set up the TI zones in the same way as
described in “Traffic Isolation Zoning over FC routers” on page 352.
FIGURE 46 Logical representation of TI zones over FC routers in logical fabrics
= Dedicated Path
Base switch
Domain 1
LS3, FID1
Domain 3
Base switch
Domain 2
LS2, FID3
Domain 6
E
E
E EX
EXEX
E
F
EX
E
E
F
E E
= Ports in the TI zones
11
12
1
2
3
4
5
6
7
10
13
14
15
16
Backbone fabric
Edge fabric
Fabric 3
Edge fabric
Fabric 1
1
2
3
4
5
6
7
11
10
12
13
14
15
16
SW2
SW6
SW3
SW1
