544 Fabric OS Administrator’s Guide
53-1002745-02
F_Port trunking
22

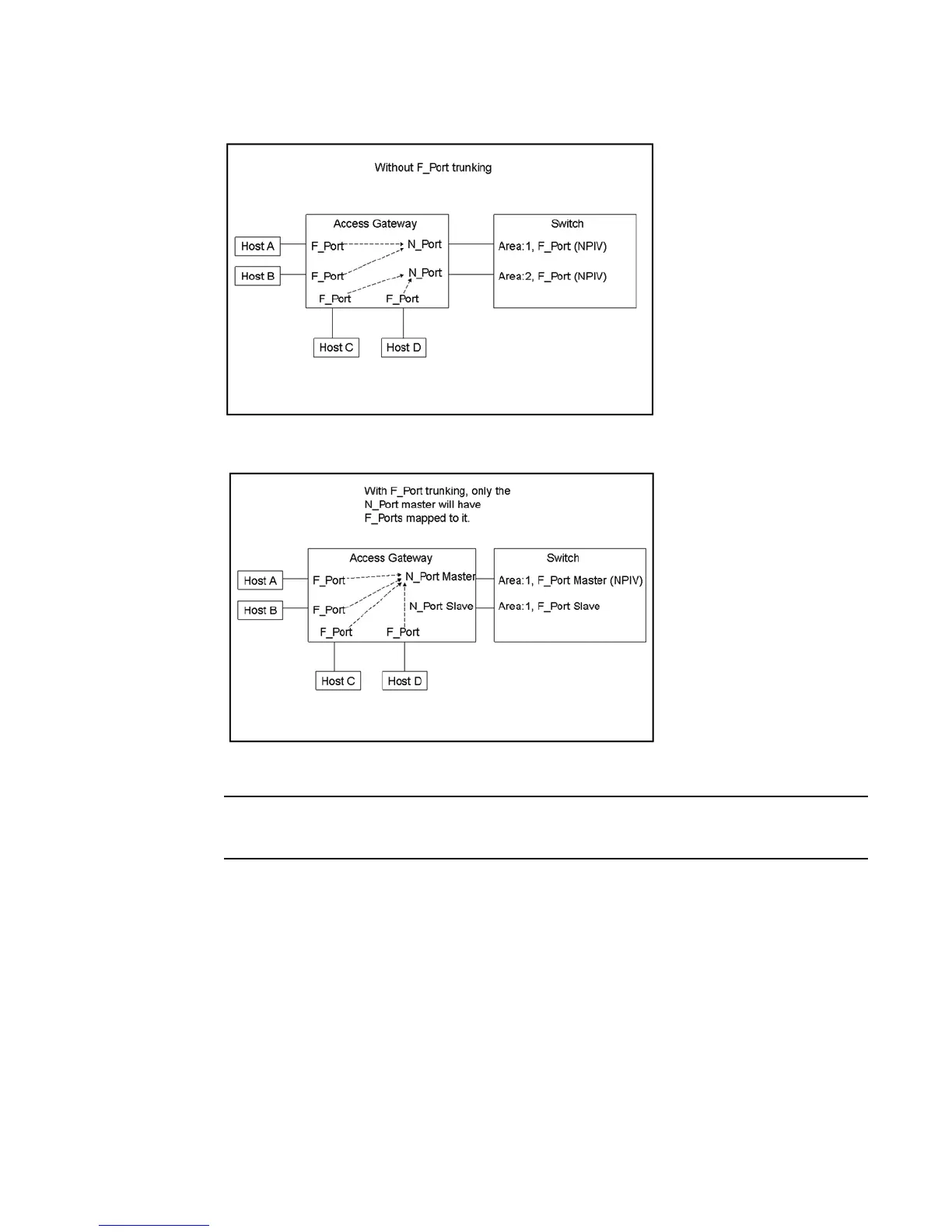

FIGURE 72 Switch in Access Gateway mode without F_Port masterless trunking
FIGURE 73 Switch in Access Gateway mode with F_Port masterless trunking
You do not need to map the host to the master port manually, because the Access Gateway will
perform a cold failover to the master port.
See “Configuring F_Port trunking for an Access Gateway” on page 544 for instructions on
configuring F_Port trunking.
Requirements for F_Port trunking on an Access Gateway
In addition to the requirements listed in “Requirements for trunk groups” on page 536, refer to the
Access Gateway Administrator’s Guide for additional requirements that are specific to F_Port
trunking on an Access Gateway.
Configuring F_Port trunking for an Access Gateway
Access Gateway trunking configuration is mostly on the edge switch. On the Access Gateway
module, you only need to ensure that the trunking license is applied and enabled.
